6.10.1.2 Antenna Radiation Patterns for Transmitter

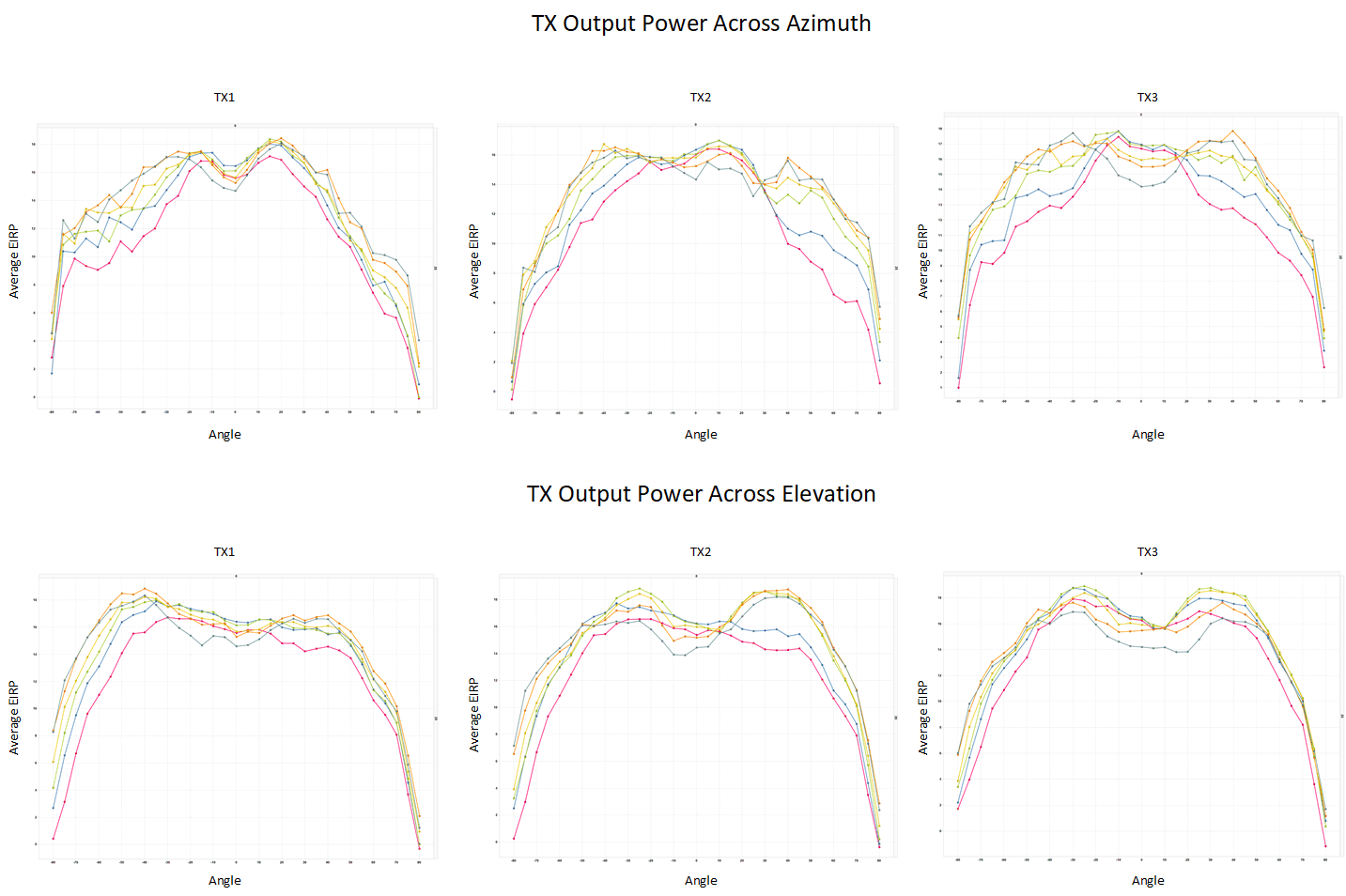

Figure 6-4 shows typical antenna radiation patterns for the three transmitters in both Azimuth and Elevation planes.

GUID-9AB102F6-68D6-4E4A-85DF-30D7821A6CF8-low.gif Figure 6-4 Transmitter Antenna Radiation Pattern
