7.3.1.2 Transmit Subsystem

The device transmit subsystem consists of four parallel transmit chains, each with independent phase and amplitude control. All four transmitters can be used simultaneously or in time-multiplexed fashion. The device supports binary phase modulation and a 6 bit programmable phase shifter for beamforming control on a per chirp basis for each channel as indicated in the figure below.

Each transmit chain can deliver a typical value of 13.5dBm at BGA ball of the package. The transmit chains also support programmable backoff for system optimization.

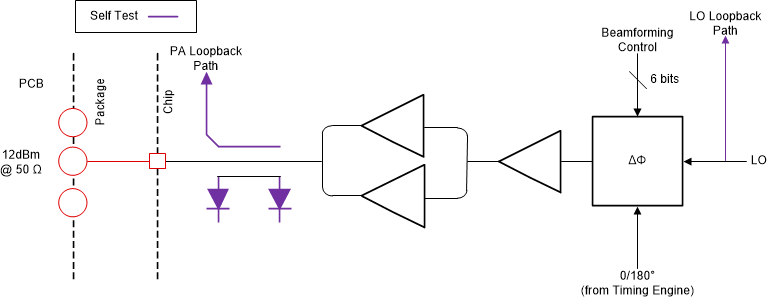

Figure 7-3 describes the transmit subsystem.

AWR2943 AWR2944 AWR2944LC Transmit Subsystem (Per Channel)Figure 7-3 Transmit Subsystem (Per Channel)
