D.5 Events

Events are received from the Bluetooth Low Energy stack in the application as a GATT_MSG_EVENT stack message sent as an OSAL message. The events are received as the following structure, where the method signifies the ATT event and the message is a union of the ATT events:


This section lists the ATT events by their method and display their structure that is used in the message payload. These events are in the att.h file.

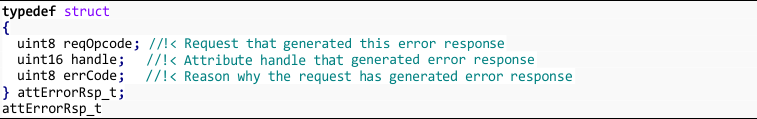

  • ATT_ERROR_RSP (0x01)
    • code_secIV_2__swru271.gif

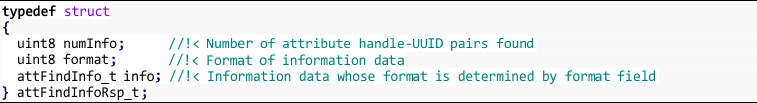

  • ATT_FIND_INFO_RSP (0x03)
    • code_secIV_3__swru271.gif
  • ATT_FIND_BY_TYPE_VALUE_RSP (0x07)
    • code_secIV_4__swru271.gif

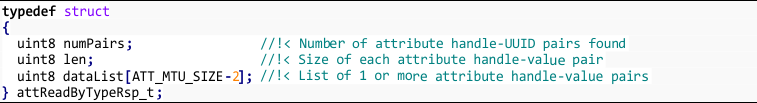

  • ATT_READ_BY_TYPE_RSP (0x09)
    • code_secIV_5__swru271.gif
  • ATT_READ_RSP (0x0B)
    • code_secIV_6__swru271.gif
  • ATT_READ_BLOB_RSP (0x0D)
    • code_secIV_7__swru271.gif
  • ATT_READ_MULTI_RSP (0x0F)
    • code_secIV_8__swru271.gifcode_secIV_9__swru271.gif
  • ATT_READ_BY_GRP_TYPE_RSP (0x11)
    • code_secIV_10__swru271.gif
  • ATT_WRITE_RSP (0x13)
  • ATT_PREPARE_WRITE_RSP (0x17)
    • code_secI_11__swru271.gif
  • ATT_EXECUTE_WRITE_RSP (0x19)

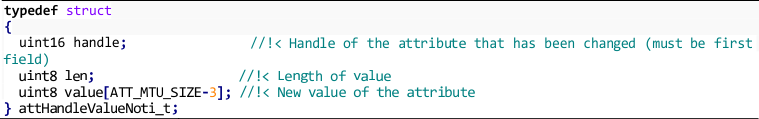

  • ATT_HANDLE_VALUE_NOTI (0x1B)
    • code_secIV_12__swru271.gif
  • ATT_HANDLE_VALUE_IND (0x1D)
    • code_secIV_13__swru271.gif
  • ATT_HANDLE_VALUE_CFM (0x1E)
    • Empty msg field
