2.8.1 Sense on Power (SOP) Jumpers

The mmWave sensor device can be set to operate in three different modes based on the state of the SOP lines. These lines are sensed only during boot up of the mmWave sensor device. The state of the device is detailed by Table 2-9.

A closed jumper refers to a 1, and an open jumper refers to a 0 state of the SOP signal going to the mmWave sensor device.

Table 2-9 SOP Jumper Information
Reference DesignatorUsageDescription
P6SOP0SOP[2:0]011 (SOP mode 2) = development mode
P5SOP1001 (SOP mode 4) = functional mode
P4SOP2101 (SOP mode 5) = flash programming

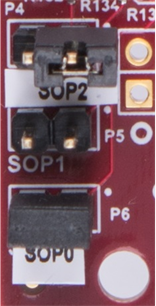

Figure 2-24 shows the SOP jumpers.

GUID-E0520BE1-84A3-4056-93B8-0ED8B2977D84-low.pngFigure 2-24 SOP Jumpers
