2.2.7.2 BoosterPack Plug-in Module and External Power Supply

Headers J19 and J20 are present on the board to supply external power directly when USB power is not available. Use the following precautions before using the board with an external power supply.

  1. Remove the USB cable.
  2. Ensure that jumpers are only placed on the headers shown in Figure 2-11.
  3. Use a jumper wire to connect VBAT and BRD.
  4. Plug in the external power supply on J20 with the correct polarity.

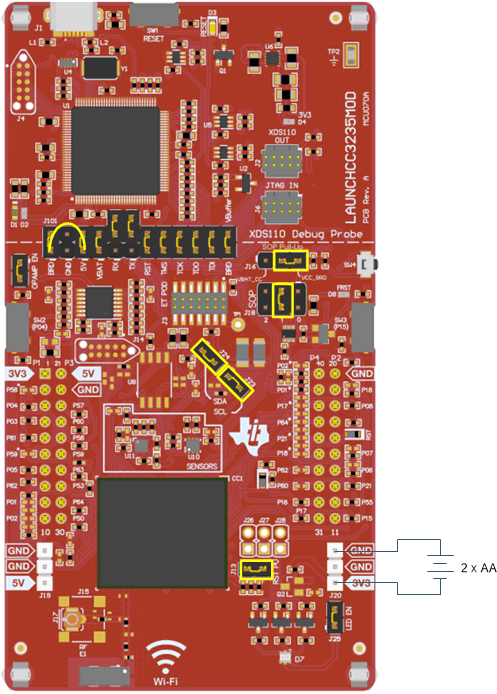

GUID-DEC9A906-DEF8-41DC-B2B3-7288C7E33E34-low.gifFigure 2-11 Powering the CC3235MODSF LP from an External Power Supply

The OPAMP EN and LED EN jumpers are also available to remove any current draw from the onboard OpAmp and LEDs being driven by the GPIOs, see Table 2-2.

Table 2-2 External Supply Connections and Enable Jumpers
ReferenceUseComments
J195-V power inputUsed to power the board from an external 5-V supply
J203.3-V power inputUsed to power the board from an external 3.3-V supply.
J21OPAMP ENIf uninstalled, the power supply to the operational amplifier is cut off. This can be used to enable low-power measurements.
J26LED ENIf uninstalled, the LEDs connected to the GPIO are disabled; this can be used to enable low-power measurements.
