2.1 Block Diagram

Figure 2-2 shows a functional block diagram of the CC3235MODx module.

GUID-99D2DED3-26E3-4433-9291-917C405FA42C-low.gifFigure 2-2 CC3235MODx Functional Block Diagram

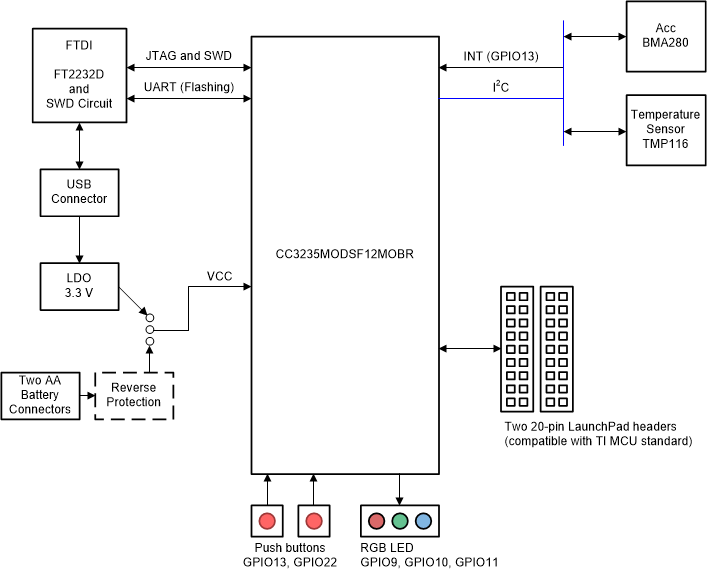

Figure 2-3 shows a functional block diagram of the LAUNCHCC3235MOD SimpleLink LaunchPad.

GUID-A8FEC1F3-872F-4C38-AD80-427BC5ABA5E0-low.gifFigure 2-3 LAUNCHCC3235MOD Functional Block Diagram
