INA253

The INA253 features a 2-mΩ, precision, current-sensing resistor and a 80-V common-mode, zero-drift topology, precision, excellent common-mode rejection ratio (CMRR), and features enhanced pulse width modulation (PWM) rejection current-sensing amplifier integrated into a single package. High precision measurements are enabled through the matching of the shunt resistor value and the current-sensing amplifier gain providing a highly-accurate, system-calibrated solution. Enhanced PWM rejection reduces the effect of common-mode transients on the output signal that are associated with PWM signals. Multiple gain versions are available to allow for the optimization of the desired full-scale output voltage based on the target current range expected in the application.

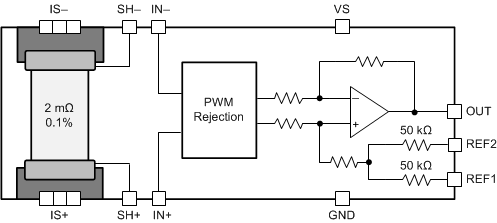

GUID-634D177F-E9CF-4BD2-9969-A24B81DE5A09-low.gifFigure 2-5 INA253 Block Diagram

The device has following key features:

  • Precision integrated shunt resistor
    • Shunt resistor: 2 mΩ
    • Shunt resistor tolerance: 0.1% (maximum)
    • ±15 A continuous from –40°C to 85°C
    • 0°C to 125°C temperature coefficient: 10 ppm/°C
  • Accuracy:
    • Gain error: 0.25% (maximum)
    • Gain drift: 10 ppm/°C (maximum)
    • Offset voltage: ±2 mA
    • Offset drift: 125 µA/°C (maximum)
  • Wide common-mode range: –4 V to 80 V
  • Available gains: 100 mV/A, 200 mV/A, and 400 mV/A
