3.1.3.5.2 Lab 2: Closed-Loop Control With SFRA

The objective of this lab is to regulate the output voltage of the converter using closed-loop feedback control realized in the form of a software-coded control loop. The SFRA GUI can be used during run time to capture the frequency response of the system.

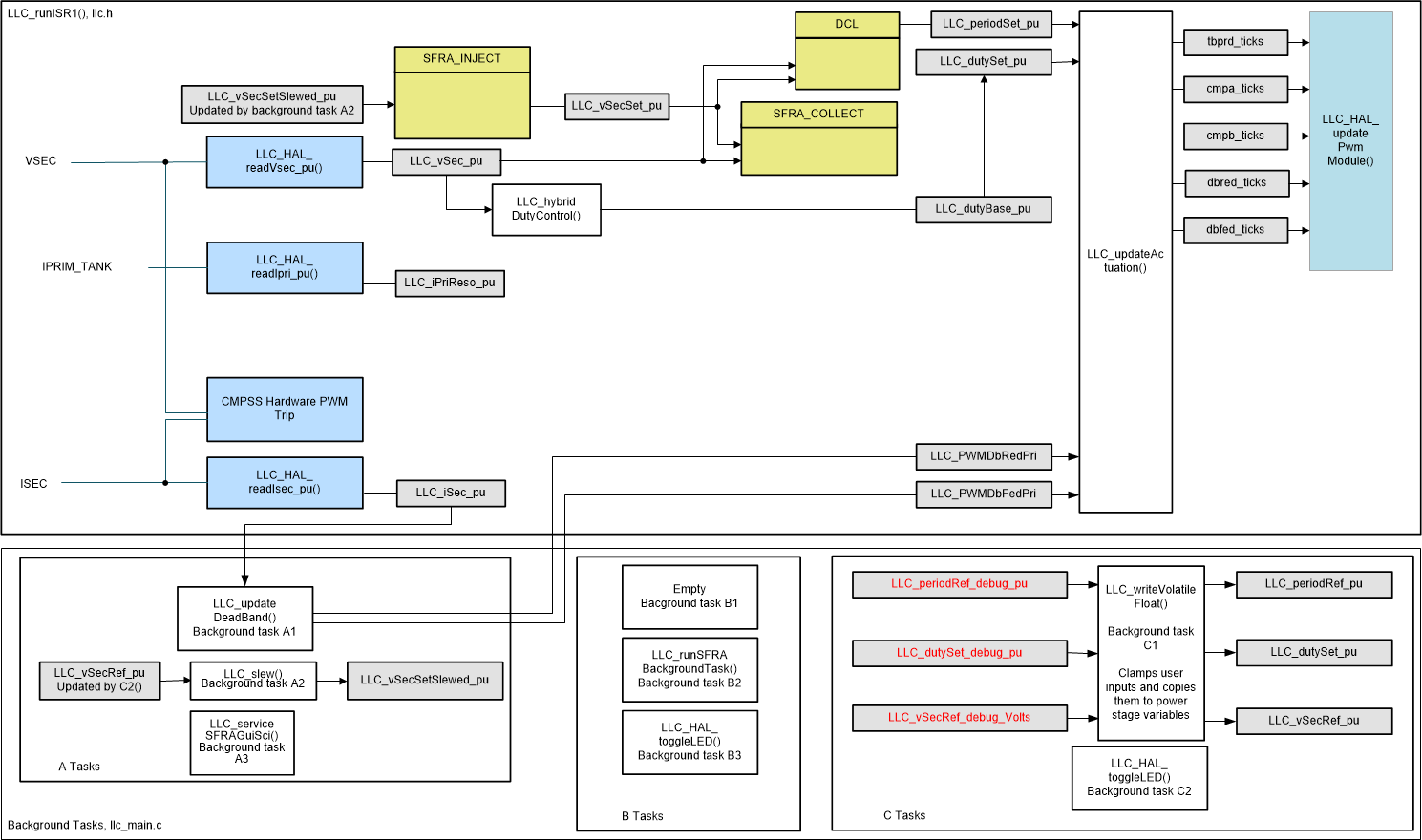

Figure 3-28 shows the software block diagram for lab 2.

GUID-20210322-CA0I-PFG1-B7S1-ZF7LHVK8ZFZK-low.gifFigure 3-28 LLC Lab 2 Software Diagram

Before the test of lab 2, make sure the hardware setup is completed as outlined in Section 3.1.1.3.
