Test Report

Triple Output PSR Flyback Converter Reference Design

Description

This reference design showcases a primary-side regulation (PSR) flyback converter based on the LM5185-Q1. The design offers three isolated output windings, delivering up to 19W in total from a 6V to 27V input voltage range.

Features

  • Low component count due to primary side regulation
  • No optocoupler required
  • Good line and load regulation
  • Good cross regulation
  • High efficiency

Applications

  • Onboard charger
  • Traction inverter

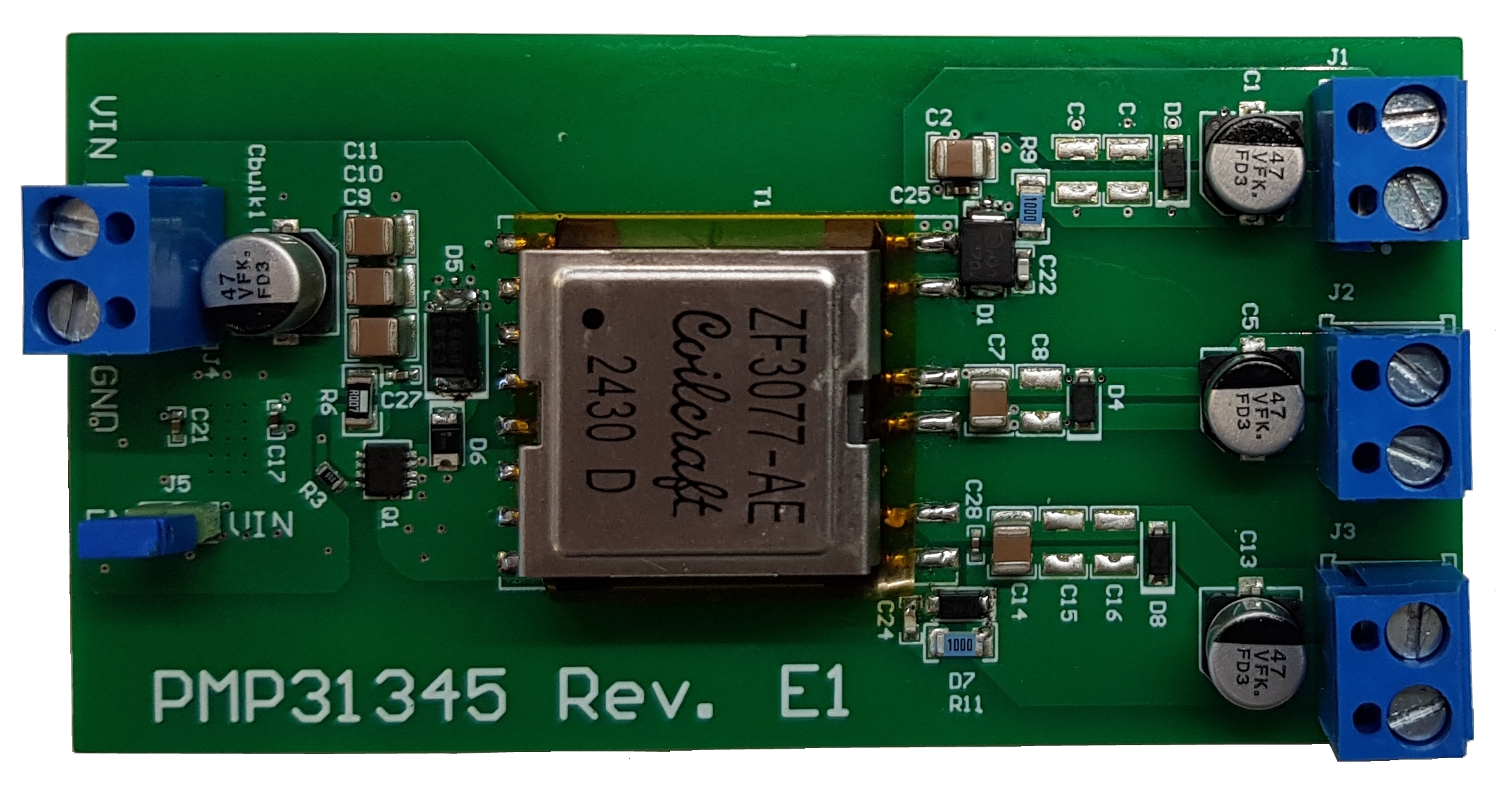

PMP31345 Top PhotoTop Photo

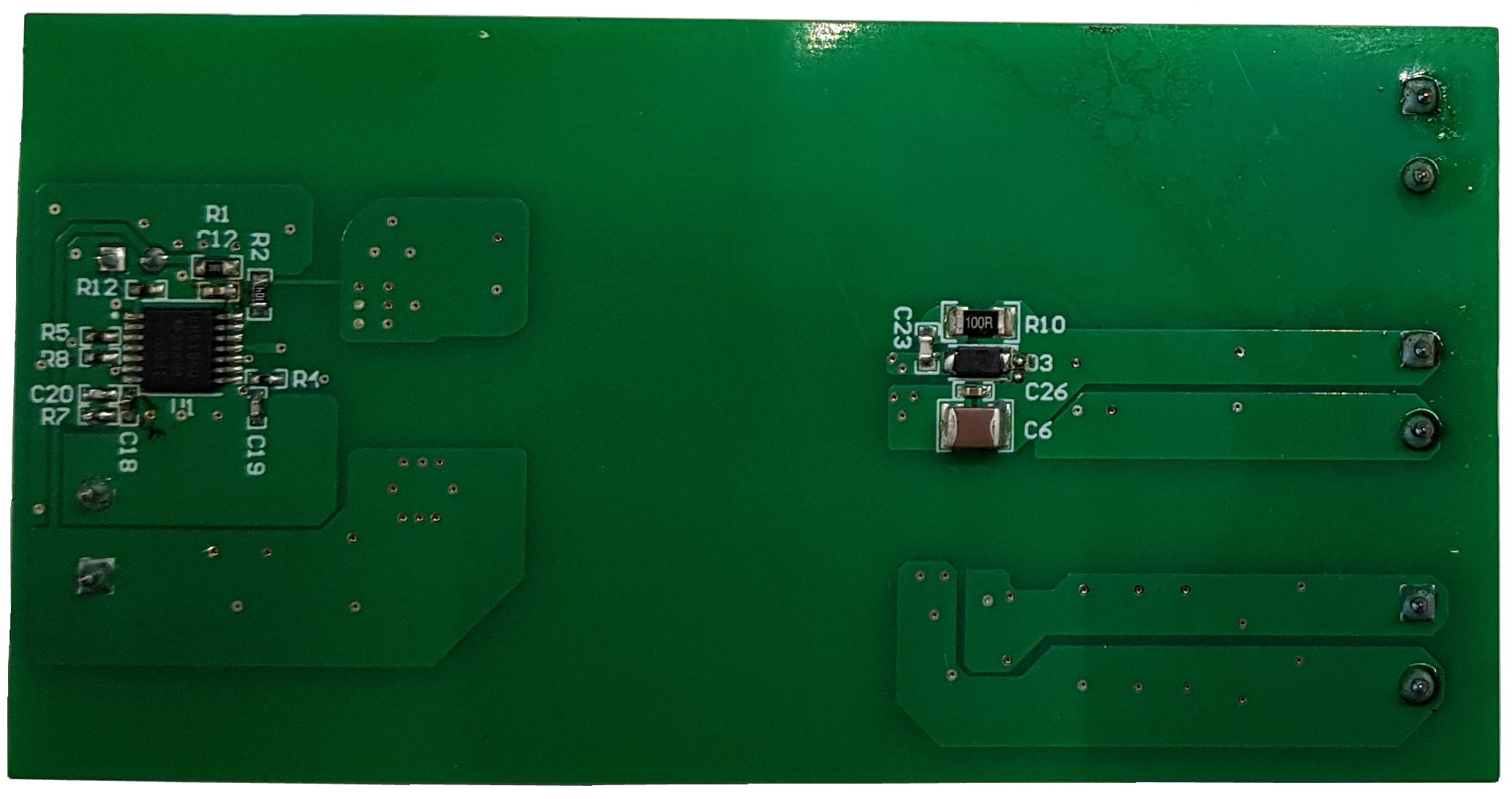

PMP31345 Bottom PhotoBottom Photo
