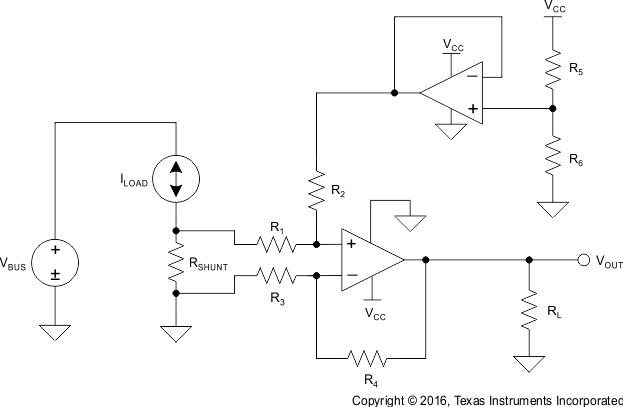

The OPA330 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the Zero-Drift family of amplifiers which use a proprietary auto-calibration technique to simultaneously provide low offset voltage (50-μV maximum) and near-zero drift over time and temperature at only 35 μA (maximum) of quiescent current. The OPA330 family features rail-to-rail input and output in addition to near-flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V).
The OPA330 (single version) is available in the 5-pin DSBGA, 5-pin SC70, 5-pin SOT-23, and 8-pin SOIC packages. The OPA2330 (dual version) is offered in 3 mm × 3 mm, 8-pin SON, 8-pin VSSOP, and 8-pin SOIC packages. The OPA4330 is offered in the standard 14-pin SOIC and 14-pin TSSOP packages, as well as in the space-saving 14-pin VQFN package. All versions are specified for operation from –40°C to 125°C.
PART NUMBER | PACKAGE | BODY SIZE (NOM) |
---|---|---|
OPA330 | SOIC (8) | 4.90 mm × 3.91 mm |
SOT (5) | 2.90 mm × 1.60 mm | |
SC70 (5) | 2.00 mm × 1.25 mm | |
DSBGA (5) | 0.00 mm × 0.00 mm | |
OPA2330 | SOIC (8) | 4.90 mm × 3.91 mm |
VSSOP (8) | 3.00 mm × 3.00 mm | |
SON (8) | 3.00 mm × 3.00 mm | |
OPA4330 | SOIC (14) | 8.65 mm × 3.91 mm |
TSSOP (14) | 5.00 mm × 4.40 mm | |
VQFN (14) | 3.50 mm × 3.50 mm |
Changes from F Revision (June 2016) to G Revision
Changes from E Revision (February 2011) to F Revision
Changes from D Revision (June 2010) to E Revision
Changes from C Revision (October 2009) to D Revision
PIN | I/O | DESCRIPTION | ||
---|---|---|---|---|
NAME | SOIC, VSSOP |
SON | ||
–IN A | 2 | 2 | I | Negative (inverting) input signal, channel A |
+IN A | 3 | 3 | I | Positive (noninverting) input signal, channel A |
–IN B | 6 | 6 | I | Negative (inverting) input signal, channel B |
+IN B | 5 | 5 | I | Positive (noninverting) input signal, channel B |
OUT A | 1 | 1 | O | Output channel A |
OUT B | 7 | 7 | O | Output channel B |
V– | 4 | 4 | — | Negative (lowest) power supply |
V+ | 8 | 8 | — | Positive (highest) power supply |
PIN | I/O | DESCRIPTION | |||
---|---|---|---|---|---|
NAME | SOIC | TSSOP | VQFN | ||
–IN A | 2 | 2 | 2 | I | Negative (inverting) input signal, channel A |
+IN A | 3 | 3 | 3 | I | Positive (noninverting) input signal, channel A |
–IN B | 6 | 6 | 6 | I | Negative (inverting) input signal, channel B |
+IN B | 5 | 5 | 5 | I | Positive (noninverting) input signal, channel B |
–IN C | 9 | 9 | 9 | I | Negative (inverting) input signal, channel C |
+IN C | 10 | 10 | 10 | I | Positive (noninverting) input signal, channel C |
–IN D | 13 | 13 | 13 | I | Negative (inverting) input signal, channel D |
+IN D | 12 | 12 | 12 | I | Positive (noninverting) input signal, channel D |
OUT A | 1 | 1 | 1 | O | Output channel A |
OUT B | 7 | 7 | 7 | O | Output channel B |
OUT C | 8 | 8 | 8 | O | Output channel C |
OUT D | 14 | 14 | 14 | O | Output channel D |
V– | 11 | 11 | 11 | — | Negative (lowest) power supply |
V+ | 4 | 4 | 4 | — | Positive (highest) power supply |
MIN | MAX | UNIT | ||
---|---|---|---|---|
Voltage | Supply, VS = (V+) – (V–) | 7 | V | |
Signal input terminals(2) (TBD should terminal be pin?) | (V–) –0.3 | (V+) + 0.3 | V | |
Current | Signal input terminals(2) | –10 | 10 | mA |
Output short-circuit(3) | Continuous | |||
Temperature | Operating range, TA | –40 | 150 | °C |
Junction, TJ | 150 | °C | ||
Storage, Tstg | –65 | 150 | °C |
VALUE | UNIT | |||
---|---|---|---|---|
V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±4000 | V |
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | |||
Machine model (MM) | ±400 |
MIN | NOM | MAX | UNIT | ||
---|---|---|---|---|---|
(V+) – (V–) | Supply voltage | ±0.9 (1.8) | ±2.5 (5) | ±2.75 (5.5) | V |
TA | Specified temperature | –40 | 25 | 125 | °C |
THERMAL METRIC(1) | OPA330 | UNIT | ||||
---|---|---|---|---|---|---|
D (SOIC) | DBV (SOT-23) | DCK (SC70) | YFF (DSBGA) | |||
8 PINS | 5 PINS | 5 PINS | 5 PINS | |||
RθJA | Junction-to-ambient thermal resistance | 140.1 | 220.8 | 298.4 | 130 | °C/W |
RθJC(top) | Junction-to-case (top) thermal resistance | 89.8 | 97.5 | 65.4 | 54 | °C/W |
RθJB | Junction-to-board thermal resistance | 80.6 | 61.7 | 97.1 | 51 | °C/W |
ψJT | Junction-to-top characterization parameter | 28.7 | 7.6 | 0.8 | 1 | °C/W |
ψJB | Junction-to-board characterization parameter | 80.1 | 61.1 | 95.5 | 50 | °C/W |
THERMAL METRIC(1) | OPA2330 | UNIT | |||
---|---|---|---|---|---|
D (SOIC) | DGK (VSSOP) | DRB (SON) | |||
8 PINS | 8 PINS | 8 PINS | |||
RθJA | Junction-to-ambient thermal resistance | 124 | 180.3 | 46.7 | °C/W |
RθJC(top) | Junction-to-case (top) thermal resistance | 73.7 | 48.1 | 26.3 | °C/W |
RθJB | Junction-to-board thermal resistance | 64.4 | 100.9 | 22.2 | °C/W |
ψJT | Junction-to-top characterization parameter | 18 | 2.4 | 1.6 | °C/W |
ψJB | Junction-to-board characterization parameter | 63.9 | 99.3 | 22.3 | °C/W |
RθJC(bot) | Junction-to-case (bottom) thermal resistance | — | — | 10.1 | °C/W |
THERMAL METRIC(1) | OPA4330 | UNIT | |||
---|---|---|---|---|---|
D (SOIC) | PW (TSSOP) | RGY (VQFN) | |||
14 PINS | 14 PINS | 14 PINS | |||
RθJA | Junction-to-ambient thermal resistance | 83.8 | 120.8 | 49.2 | °C/W |
RθJC(top) | Junction-to-case (top) thermal resistance | 70.7 | 34.3 | 75.3 | °C/W |
RθJB | Junction-to-board thermal resistance | 59.5 | 62.8 | 61.9 | °C/W |
ψJT | Junction-to-top characterization parameter | 11.6 | 1 | 1.2 | °C/W |
ψJB | Junction-to-board characterization parameter | 37.7 | 56.5 | 19.3 | °C/W |
RθJC(bot) | Junction-to-case (bottom) thermal resistance | — | — | 4.6 | °C/W |
PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |||
---|---|---|---|---|---|---|---|---|
OFFSET VOLTAGE | ||||||||
VOS | Input offset voltage | VS = 5 V | 8 | 50 | µV | |||
dVOS/dT | Input offset voltage versus temperature | At TA = –40°C to +125°C | 0.02 | 0.25 | µV/°C | |||
PSRR | Input offset voltage versus power supply | At TA = –40°C to +125°C | 1 | 10 | µV/V | |||
Long-term stability(1) | VS = 1.8 V to 5.5 V | See (1) | ||||||
Channel separation, dc | 0.1 | µV/V | ||||||
INPUT BIAS CURRENT | ||||||||
IB | Input bias current | At 25°C | ±200 | ±500 | pA | |||
OPA330YFF, OPA4330 | ±70 | ±300 | pA | |||||
At TA = –40°C to +125°C | ±300 | pA | ||||||
IOS | Input offset current | At 25°C | ±400 | ±1000 | pA | |||
OPA330YFF, OPA4330 | ±140 | ±600 | pA | |||||
NOISE | ||||||||
en | Input voltage noise density | f = 1 kHz | 55 | nV/√Hz | ||||
Input voltage noise | f = 0.01 Hz to 1 Hz | 0.3 | µVPP | |||||
f = 0.1 Hz to 10 Hz | 1.1 | µVPP | ||||||
in | Input current noise | f = 10 Hz | 100 | fA/√Hz | ||||
INPUT VOLTAGE RANGE | ||||||||
VCM | Common-mode voltage range | (V–) – 0.1 | (V+) + 0.1 | V | ||||
CMRR | Common-mode rejection ratio | At TA = –40°C to +125°C, (V–) – 0.1 V < VCM < (V+) + 0.1 V |
100 | 115 | dB | |||
At TA = –40°C to +125°C, (V–) – 0.1 V < VCM < (V+) + 0.1 V, VS = 5.5 V |
100 | 115 | dB | |||||
OPA330YFF, OPA4330 | 100 | 115 | dB | |||||
INPUT CAPACITANCE | ||||||||
Differential | 2 | pF | ||||||
Common-mode | 4 | pF | ||||||
OPEN-LOOP GAIN | ||||||||
AOL | Open-loop voltage gain | At TA = –40°C to +125°C, (V–) + 100 mV < VO < (V+) – 100 mV, RL = 10 kΩ |
100 | 115 | dB | |||
FREQUENCY RESPONSE | ||||||||
GBW | Gain-bandwidth product | CL = 100 pF | 350 | kHz | ||||
SR | Slew rate | G = +1 | 0.16 | V/µs | ||||
OUTPUT | ||||||||
Voltage output swing from rail | At TA = –40°C to +125°C | 30 | 100 | mV | ||||
ISC | Short-circuit current | ±5 | mA | |||||
CL | Capacitive load drive | See Typical Characteristics | ||||||
Open-loop output impedance | f = 350 kHz, IO = 0 mA | 2 | kΩ | |||||
POWER SUPPLY | ||||||||
VS | Specified voltage range | 1.8 | 5.5 | V | ||||
IQ | Quiescent current per amplifier | At TA = –40°C to +125°C, IO = 0 mA | 21 | 35 | µA | |||
Turnon time | VS = 5 V | 100 | µs |
DESCRIPTION | FIGURE NO. | |
---|---|---|
Offset Voltage Production Distribution | Figure 1 | |
Open-Loop Gain vs Frequency | Figure 2 | |
Common-Mode Rejection Ratio vs Frequency | Figure 3 | |
Power-Supply Rejection Ratio vs Frequency | Figure 4 | |
Output Voltage Swing vs Output Current | Figure 5 | |
Input Bias Current vs Common-Mode Voltage | Figure 6 | |
Input Bias Current vs Temperature | Figure 7 | |
Quiescent Current vs Temperature | Figure 8 | |
Large-Signal Step Response | Figure 9 | |
Small-Signal Step Response | Figure 10 | |
Positive Overvoltage Recovery | Figure 11 | |
Negative Overvoltage Recovery | Figure 12 | |
Settling Time vs Closed-Loop Gain | Figure 13 | |
Small-Signal Overshoot vs Load Capacitance | Figure 14 | |
0.1-Hz to 10-Hz Noise | Figure 15 | |
Current and Voltage Noise Spectral Density vs Frequency | Figure 16 | |
Input Bias Current vs Input Differential Voltage | Figure 17 |
The OPA330 family of Zerø-Drift amplifiers feature a proprietary auto-calibration technique to simultaneously achieve near-zero drift over time and temperature at only 35 µA (maximum) of quiescent current while also providing low offset voltage (50 µV maximum). These devices are unity-gain stable, precision operational amplifiers free from unexpected output and phase reversal. The OPA330 series are also optimized for low-voltage, single-supply operation: as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V).
The proprietary Zerø-Drift circuitry lowers the 1/f noise component as well as offers the advantage of low input offset voltage over time and temperature. The OPA330 series of operational amplifiers are ideal for cost-sensitive applications and applications that operate without regulation directly from battery power.
The OPA33x family is unity-gain stable and free from unexpected output phase reversal. These devices use a proprietary auto-calibration technique to provide low offset voltage and very low drift over time and temperature. For lowest offset voltage and precision performance, optimize circuit layout, and mechanical conditions. Avoid temperature gradients that create thermoelectric (Seebeck) effects in the thermocouple junctions formed from connecting dissimilar conductors. Cancel these thermally-generated potentials by assuring they are equal on both input terminals. Other layout and design considerations include:
Following these guidelines reduces the likelihood of junctions being at different temperatures, which can cause thermoelectric voltage drift of 0.1 µV/°C or higher, depending on materials used.
The OPAx330 has a single functional mode and is operational when the power-supply voltage is greater than
1.8 V (±0.9 V). The maximum power-supply voltage for the OPAx330 is 5.5 V (±2.75 V).
