TPD2E1B06 Dual-Channel High-Speed ESD Protection Device
1 Features
- Provides System Level ESD Protection for Low Voltage IO Interface
- IEC 61000-4-2 Level 4 ESD Rating
- Low IO Capacitance: 0.85 pF (Typical)
- DC Breakdown Voltage: 7 V (Minimum)
- Ultra-Low Leakage Current: 10 nA (Maximum)
- Low ESD Clamping Voltage
- Temperature Range: –40°C to 125°C
- Small Easy-to-Route DRL package
2 Applications
- Gaming Machines
- eBooks
- Portable Media Players
- Digital Cameras
3 Description
The TPD2E1B06 device is a dual-channel, ultra-low capacitance ESD protection device. It offers ±10-KV IEC contact ESD protection. Its 1-pF line capacitance makes it suitable for a wide range of applications. Typical application interfaces are USB 2.0, LVDS, and I2C. The TPD2E1B06 device has two common layout methods, and both are highlighted in Layout.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPD2E1B06 | SOT (6) | 1.60 mm × 1.20 mm |
- For all available packages, see the orderable addendum at the end of the data sheet.

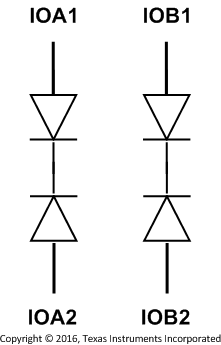

Schematic
4 Revision History
Changes from C Revision (September 2013) to D Revision
- Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section.Go
Changes from B Revision (September 2013) to C Revision
- Added air gap ESD specification to the ABSOLUTE MAXIMUM RATINGS table.Go
Changes from A Revision (August 2013) to B Revision
- Added TYPICAL CHARACTERISTICS section.Go
Changes from * Revision (July 2013) to A Revision
- Revised document from PREVIEW to PRODUCTION DATA.Go
5 Pin Configuration and Functions
DRL Package
6-Pin SOT
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | USAGE | |
|---|---|---|---|---|
| NAME | NO. | |||
| IOA1 | 1 | I/O | ESD protected channel | See Application Information. |
| IOA2 | 5 | I/O | ||
| IOB1 | 2 | I/O | ||
| IOB2 | 4 | I/O | ||
| NC | 3, 6 | NC | No connect | Can be left floating, grounded, or connected to VCC |
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Operating temperature | –40 | 125 | °C | |
| IPP | Peak pulse current (tp = 8/20 μs)(2) | 2.5 | A | |
| PPP | Peak pulse power (tp = 8/20 μs)(2) | 35 | W | |
| Tstg | Storage temperature | –65 | 155 | °C |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | IEC 61000-4-2 contact discharge(2) | ±10000 | V |
| IEC 61000-4-2 air-gap discharge(2) | ±15000 | |||
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| VIO | Pin IOA1 to IOA2; Pin IOB1 to IOB2 | –5.5 | 5.5 | V |
| TA | Operating free-air temperature | –40 | 125 | °C |
6.4 Thermal Information
over operating free-air temperature range (unless otherwise noted)| THERMAL METRIC(1) | TPD2E1B06 | UNIT | |
|---|---|---|---|
| DRL (SOT) | |||
| 6 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 349.7 | ºC/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 120.5 | ºC/W |
| RθθJB | Junction-to-board thermal resistance | 171.4 | ºC/W |
| ψJT | Junction-to-top characterization parameter | 10.8 | ºC/W |
| ψJB | Junction-to-board characterization parameter | 169.4 | ºC/W |
(1) For more information about traditional and new thermal metrics, the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
6.5 Electrical Characteristics
over operating free-air temperature range. (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| VRWM | Reverse standoff voltage | 5.5 | V | |||
| VCLAMP | Clamp voltage with ESD strike | IPP = 1 A, TLP, I/O to GND(1)(2) | 11 | V | ||
| IPP = 5 A, TLP, I/O to GND(1)(2) | 15 | |||||
| VCLAMP | Clamp voltage with ESD strike | IPP = 1 A, TLP, GND to I/O (1)(2) | 11 | V | ||
| IPP = 5 A, TLP, GND to I/O (1)(2) | 15 | |||||
| RDYN | Dynamic resistance | 0.9 | Ω | |||
| CL1 | Pin 2 and 5 capacitance | Pin 1 and 4 = GND, f = 1 MHz, VBIAS = 2.5 V(2)(3) | 0.85 | pF | ||
| CL2 | Pin 1 and 4 capacitance | Pin 2 and 5 = GND, f = 1 MHz, VBIAS = 2.5 V(2)(4) | 1.05 | pF | ||
| VBR | Break-down voltage | IIO = 1 mA | 7 | 9.5 | V | |
| ILEAK | Leakage current | VBIAS = +2.5 V | 1 | 10 | nA | |
(1) Transmission line pulse with rise time 10 ns and pulse width 100 ns.
(2) TA = 25°C
(3) Using Routing Option 1, Figure 13.
(4) Using Routing Option 2, Figure 14.
6.6 Typical Characteristics
Figure 1. IV Curve
Figure 3. ILEAK vs Temperature
Figure 5. –8-kV Contact ESD Clamping
Figure 7. Capacitance vs VBIAS
Figure 9. Eye Diagram With TPD2E1B06DRL on EVM
Figure 2. Maximum Surge Rating
Figure 4. +8-kV Contact ESD Clamping
Figure 6. Insertion Loss
Figure 8. Eye Diagram Without TPD2E1B06DRL on EVM
