Features

  • Qualified for Automotive Applications
  • AEC-Q100 Test Guidance With the Following:
    • Device Temperature Grade 3: –40°C to 85°C Ambient Operating Temperature Range
    • Device HBM ESD Classification Level 3B
    • Device CDM ESD Classification Level C6
  • 4-Wire Touch-Screen Interface
  • Single 1.2-V to 3.6-V Supply or Reference
  • Ratiometric Conversion
  • Effective Throughput Rate:
    • Up to 20 kHz (8-Bit) or 10 kHz (12-Bit)
  • Preprocessing to Reduce Bus Activity
  • I2C Interface Supports:
    • Standard, Fast, and High-Speed Modes
  • Simple, Command-Based User Interface:
    • TSC2003-Q1 Compatible
    • 8-Bit or 12-Bit Resolution
  • On-Chip Temperature Measurement
  • Touch Pressure Measurement
  • Internal Detection of Screen Touch
  • For Pen Touch Detect or Data Available Interrupt
  • Auto Power-Down Control
  • Low Power:
    • 32.24 μA at 1.2 V, Fast Mode, 8.2 kHz-Equalization Rate
    • 39.31 μA at 1.8 V, Fast Mode, 8.2 kHz-Equalization Rate
    • 53.32 μA at 2.7 V, Fast Mode, 8.2 kHz-Equalization Rate
  • Enhanced ESD Protection:
    • ±25-kV Air-Gap Discharge
    • ±15-kV Contact Discharge
    • 5-mm × 4.4-mm 16-Pin TSSOP Package
U.S. Patent NO. 6246394; other patents pending.
U.S. Patent NO. 6246394; other patents pending.

Applications

  • Automotive Infotainment Displays
  • Automotive Navigation Systems
  • Industrial User Interfaces
  • Multiscreen Touch Control Systems

Description

The TSC2007-Q1 device is a very low-power touch screen controller designed to work with power-sensitive, automotive touch-screen displays. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A-D) resistive touch screen converter, including drivers and the control logic to measure touch pressure.

In addition to these standard features, the TSC2007Q1 offers preprocessing of the touch screen measurements to reduce bus loading, thus reducing the consumption of host processor resources that can then be redirected to more critical functions.

The TSC2007-Q1 supports an I2C serial bus and data transmission protocol in all three defined modes: standard, fast, and high-speed. It offers programmable resolution of 8 bits or 12 bits to accommodate different screen sizes and performance needs.

The TSC2007-Q1 is available in a 16-pin TSSOP package. The TSC2007-Q1 is characterized for the –40°C to 85°C industrial temperature range.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TSC2007-Q1 TSSOP (16) 5.00 mm × 4.40 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

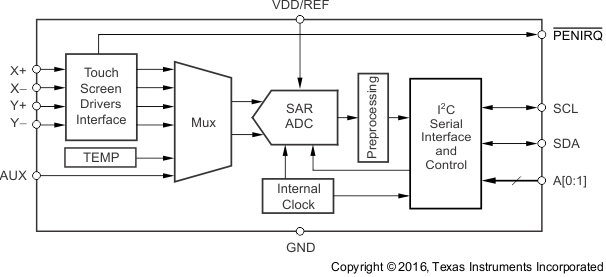

Functional Block Diagram

TSC2007-Q1 fbd_bas405.gif

Revision History

Changes from * Revision (September 2011) to A Revision

  • Added Device Information table, Specifications section, ESD Ratings table, Recommended Operating Conditions table, Detailed Description section, Application and Implementation section, Power Supply Recommendations section, Layout Guidelines section, Layout Example section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information sectionGo
  • Deleted Ordering Information table; see Package Option Addendum at the end of the data sheetGo
  • Changed ESD Ratings information and added the AEC-Q100 Automotive bullets to FeaturesGo
  • Added Automotive Infotainment Displays and Automotive Navigation Systems bullets to ApplicationsGo
  • Deleted Digital Buffered PENIRQ bullet from FeaturesGo
  • Deleted On-Chip, Programmable PENIRQ Pull-Up bullet from Features Go
  • Deleted Lead temperature parameters from Absolute Maximum Ratings tableGo
  • Moved Power-supply voltage parameters from Electrical Characteristics table to the Recommended Operating Conditions table Go
  • Added IEC discharge informationGo
  • Added Thermal Information tableGo
  • Changed RθJA values for PW (TSSOP) From: 86 To: 101.7Go
  • Changed tOF to tF in Timing Requirements tablesGo
  • Changed text in Reference mode to clarify singled-ended operationGo
  • Changed Figure 24 caption text from PINTDAV to PENIRQGo
  • Added subsections to Throughput Rate and I2C Bus Traffic section to clarify 8-bit and 12-bit operationGo
