SLVSGV1B June   2022  – March 2023 ADC12DJ5200-SP

PRODUCTION DATA

  1. Features
  2. Applications
  3. Description
  4. Revision History
  5. Pin Configuration and Functions
  6. Specifications
    1. 6.1  Absolute Maximum Ratings
    2. 6.2  ESD Ratings
    3. 6.3  Recommended Operating Conditions
    4. 6.4  Thermal Information
    5. 6.5  Electrical Characteristics: DC Specifications
    6. 6.6  Electrical Characteristics: Power Consumption
    7. 6.7  Electrical Characteristics: AC Specifications (Dual-Channel Mode)
    8. 6.8  Electrical Characteristics: AC Specifications (Single-Channel Mode)
    9. 6.9  Timing Requirements
    10. 6.10 Switching Characteristics
    11. 6.11 Typical Characteristics
  7. Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1  Device Comparison
      2. 7.3.2  Analog Inputs
        1. 7.3.2.1 Analog Input Protection
        2. 7.3.2.2 Full-Scale Voltage (VFS) Adjustment
        3. 7.3.2.3 Analog Input Offset Adjust
      3. 7.3.3  ADC Core
        1. 7.3.3.1 ADC Theory of Operation
        2. 7.3.3.2 ADC Core Calibration
        3. 7.3.3.3 Analog Reference Voltage
        4. 7.3.3.4 ADC Over-range Detection
        5. 7.3.3.5 Code Error Rate (CER)
      4. 7.3.4  Temperature Monitoring Diode
      5. 7.3.5  Timestamp
      6. 7.3.6  Clocking
        1. 7.3.6.1 Noiseless Aperture Delay Adjustment (tAD Adjust)
        2. 7.3.6.2 Aperture Delay Ramp Control (TAD_RAMP)
        3. 7.3.6.3 SYSREF Capture for Multi-Device Synchronization and Deterministic Latency
          1. 7.3.6.3.1 SYSREF Position Detector and Sampling Position Selection (SYSREF Windowing)
          2. 7.3.6.3.2 Automatic SYSREF Calibration
      7. 7.3.7  Programmable FIR Filter (PFIR)
        1. 7.3.7.1 Dual Channel Equalization
        2. 7.3.7.2 Single Channel Equalization
        3. 7.3.7.3 Time Varying Filter
      8. 7.3.8  Digital Down Converters (DDC)
        1. 7.3.8.1 Rounding and Saturation
        2. 7.3.8.2 Numerically-Controlled Oscillator and Complex Mixer
          1. 7.3.8.2.1 NCO Fast Frequency Hopping (FFH)
          2. 7.3.8.2.2 NCO Selection
          3. 7.3.8.2.3 Basic NCO Frequency Setting Mode
          4. 7.3.8.2.4 Rational NCO Frequency Setting Mode
          5. 7.3.8.2.5 NCO Phase Offset Setting
          6. 7.3.8.2.6 NCO Phase Synchronization
        3. 7.3.8.3 Decimation Filters
        4. 7.3.8.4 Output Data Format
        5. 7.3.8.5 Decimation Settings
          1. 7.3.8.5.1 Decimation Factor
          2. 7.3.8.5.2 DDC Gain Boost
      9. 7.3.9  JESD204C Interface
        1. 7.3.9.1 Transport Layer
        2. 7.3.9.2 Scrambler
        3. 7.3.9.3 Link Layer
        4. 7.3.9.4 8B/10B Link Layer
          1. 7.3.9.4.1 Data Encoding (8B/10B)
          2. 7.3.9.4.2 Multiframes and the Local Multiframe Clock (LMFC)
          3. 7.3.9.4.3 Code Group Synchronization (CGS)
          4. 7.3.9.4.4 Initial Lane Alignment Sequence (ILAS)
          5. 7.3.9.4.5 Frame and Multiframe Monitoring
        5. 7.3.9.5 64B/66B Link Layer
          1. 7.3.9.5.1 64B/66B Encoding
          2. 7.3.9.5.2 Multiblocks, Extended Multiblocks and the Local Extended Multiblock Clock (LEMC)
          3. 7.3.9.5.3 Block, Multiblock and Extended Multiblock Alignment using Sync Header
            1. 7.3.9.5.3.1 Cyclic Redundancy Check (CRC) Mode
            2. 7.3.9.5.3.2 Forward Error Correction (FEC) Mode
          4. 7.3.9.5.4 Initial Lane Alignment
          5. 7.3.9.5.5 Block, Multiblock and Extended Multiblock Alignment Monitoring
        6. 7.3.9.6 Physical Layer
          1. 7.3.9.6.1 SerDes Pre-Emphasis
        7. 7.3.9.7 JESD204C Enable
        8. 7.3.9.8 Multi-Device Synchronization and Deterministic Latency
        9. 7.3.9.9 Operation in Subclass 0 Systems
      10. 7.3.10 Alarm Monitoring
        1. 7.3.10.1 Clock Upset Detection
        2. 7.3.10.2 FIFO Upset Detection
    4. 7.4 Device Functional Modes
      1. 7.4.1 Dual-Channel Mode
      2. 7.4.2 Single-Channel Mode (DES Mode)
      3. 7.4.3 Dual-Input Single-Channel Mode (DUAL DES Mode)
      4. 7.4.4 JESD204C Modes
        1. 7.4.4.1 JESD204C Operating Modes Table
        2. 7.4.4.2 JESD204C Modes continued
        3. 7.4.4.3 JESD204C Transport Layer Data Formats
        4. 7.4.4.4 64B/66B Sync Header Stream Configuration
      5. 7.4.5 Power-Down Modes
      6. 7.4.6 Test Modes
        1. 7.4.6.1 Serializer Test-Mode Details
        2. 7.4.6.2 PRBS Test Modes
        3. 7.4.6.3 Clock Pattern Mode
        4. 7.4.6.4 Ramp Test Mode
        5. 7.4.6.5 Short and Long Transport Test Mode
          1. 7.4.6.5.1 Short Transport Test Pattern
        6. 7.4.6.6 D21.5 Test Mode
        7. 7.4.6.7 K28.5 Test Mode
        8. 7.4.6.8 Repeated ILA Test Mode
        9. 7.4.6.9 Modified RPAT Test Mode
      7. 7.4.7 Calibration Modes and Trimming
        1. 7.4.7.1 Foreground Calibration Mode
        2. 7.4.7.2 Background Calibration Mode
        3. 7.4.7.3 Low-Power Background Calibration (LPBG) Mode
      8. 7.4.8 Offset Calibration
      9. 7.4.9 Trimming
    5. 7.5 Programming
      1. 7.5.1 Using the Serial Interface
        1. 7.5.1.1 SCS
        2. 7.5.1.2 SCLK
        3. 7.5.1.3 SDI
        4. 7.5.1.4 SDO
        5. 7.5.1.5 Streaming Mode
    6. 7.6 SPI Register Map
  8. Application Information Disclaimer
    1. 8.1 Application Information
    2. 8.2 Typical Applications
      1. 8.2.1 Wideband RF Sampling Receiver
        1. 8.2.1.1 Design Requirements
          1. 8.2.1.1.1 Input Signal Path
          2. 8.2.1.1.2 Clocking
        2. 8.2.1.2 Detailed Design Procedure
          1. 8.2.1.2.1 Calculating Values of AC-Coupling Capacitors
      2. 8.2.2 Reconfigurable Dual-Channel 5-GSPS or Single-Channel 10-Gsps Oscilloscope
        1. 8.2.2.1 Design Requirements
          1. 8.2.2.1.1 Input Signal Path
          2. 8.2.2.1.2 Clocking
          3. 8.2.2.1.3 ADC12DJ5200-SP
    3. 8.3 Initialization Set Up
    4. 8.4 Power Supply Recommendations
      1. 8.4.1 Power Sequencing
    5. 8.5 Layout
      1. 8.5.1 Layout Guidelines
      2. 8.5.2 Layout Example
  9. Device and Documentation Support
    1. 9.1 Device Support
      1. 9.1.1 Development Support
        1. 9.1.1.1 143
    2. 9.2 Documentation Support
      1. 9.2.1 Related Documentation
    3. 9.3 Receiving Notification of Documentation Updates
    4. 9.4 Support Resources
    5. 9.5 Trademarks
    6. 9.6 Electrostatic Discharge Caution
    7. 9.7 Glossary
  10. 10Mechanical, Packaging, and Orderable Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information

Typical Characteristics

typical values at TA = 25°C, VA19 = 1.9 V, VA11 = VD11 = 1.1 V, default full-scale voltage (FS_RANGE_A = FS_RANGE_B = 0xA000), input signal applied to INA± in single-channel modes, fIN = 347 MHz, AIN = –1 dBFS, fCLK = maximum-rated clock frequency, filtered, 1-VPP sine-wave clock, JMODE = 1, dither enabled with default settings, VA11, VD11 and VS11 noise suppression ON (EN_VA11_NOISE_SUPPR = EN_VD11_NOISE_SUPPR = EN_VS11_NOISE_SUPPR = 1), and background calibration (unless otherwise noted); SNR results exclude DC, HD2 to HD9 and interleaving spurs; SINAD, ENOB, and SFDR results exclude DC and fixed-frequency interleaving spurs

GUID-AC239A36-3B0B-469B-9C49-3A53C9C36E92-low.svg
Figure 6-1 Input Amplitude vs Input Frequency
Figure 6-3 DNL vs ADC Code
Figure 6-5 DES Mode: Single Tone FFT at 347 MHz
Figure 6-7 DES Mode: Single Tone FFT at 2397 MHz

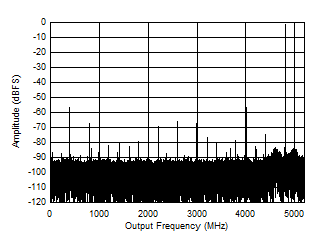

Figure 6-9 DES Mode: Single Tone FFT at 5597 MHz
each tone at -7 dBFS, 100MHz Tone Spacing

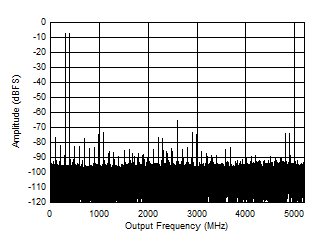

Figure 6-11 DES Mode: Two Tone FFT at 347 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

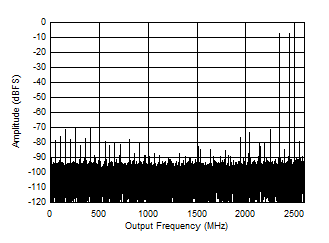

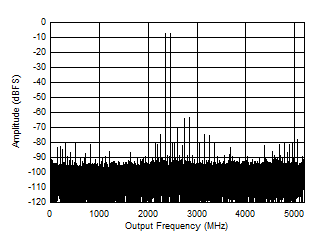

Figure 6-13 DES Mode: Two Tone FFT at 2397 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

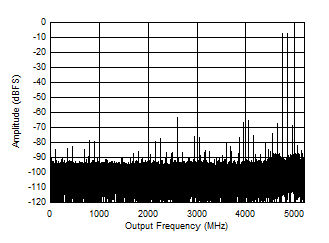

Figure 6-15 DES Mode: Two Tone FFT at 5597 MHz

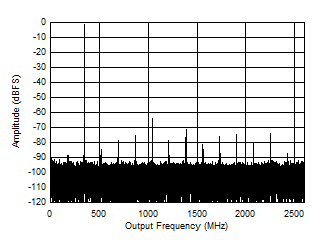

Figure 6-17 Dual Channel Mode: Single Tone FFT at 347 MHz

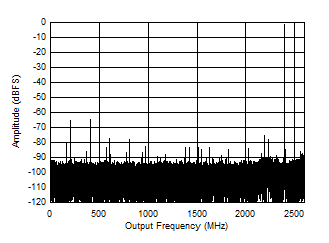

Figure 6-19 Dual Channel Mode: Single Tone FFT at 2397 MHz

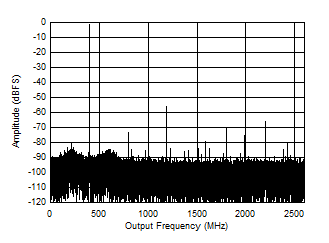

Figure 6-21 Dual Channel Mode: Single Tone FFT at 5597 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

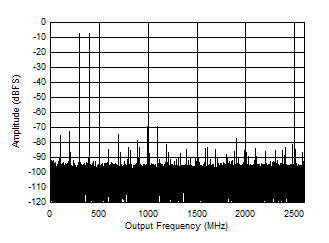

Figure 6-23 Dual Channel Mode: Two Tone FFT at 347 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing
Figure 6-25 Dual Channel Mode: Two Tone FFT at 2397 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

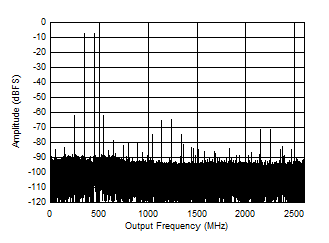

Figure 6-27 Dual Channel Mode: Two Tone FFT at 5597 MHz
AIN = –1 dBFS

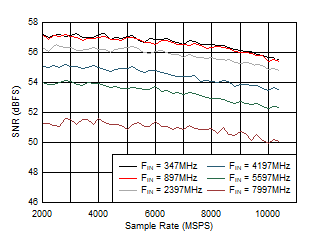

Figure 6-29 DES Mode: SNR vs Sample Rate and Input Frequency
AIN = –12 dBFS
Figure 6-31 DES Mode: SNR vs Sample Rate and Input Frequency
AIN = –6 dBFS

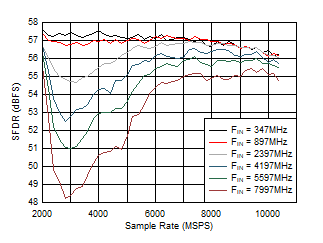

Figure 6-33 DES Mode: SFDR vs Sample Rate and Input Frequency
AIN = –1 dBFS

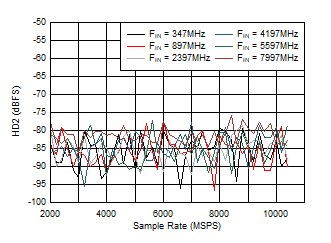

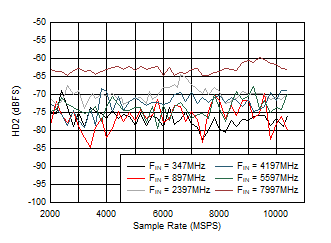

Figure 6-35 DES Mode: HD2 vs Sample Rate and Input Frequency
AIN = –6 dBFS
Figure 6-37 DES Mode: HD2 vs Sample Rate and Input Frequency
AIN = –1 dBFS

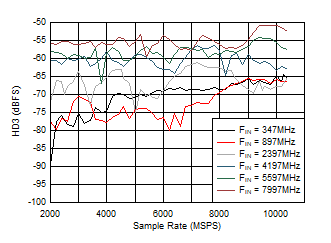

Figure 6-39 DES Mode: HD3 vs Sample Rate and Input Frequency
AIN = –12 dBFS
Figure 6-41 DES Mode: HD3 vs Sample Rate and Input Frequency
Figure 6-43 DES Mode: Fs/4 + FIN vs Sample Rate and Input Frequency
AIN = –1 dBFS
Figure 6-45 Dual Channel Mode: SNR vs Sample Rate and Input Frequency
AIN = –12 dBFS
Figure 6-47 Dual Channel Mode: SNR vs Sample Rate and Input Frequency
AIN = –6 dBFS
Figure 6-49 Dual Channel Mode: SFDR vs Sample Rate and Input Frequency
GUID-20221122-SS0I-BC7Z-XDZF-BSWHZPC7DR0T-low.svg
JMODE 3, AIN = –80 dBFS
Figure 6-51 Dual Channel Mode: NSD and Input Frequency
AIN = –6 dBFS

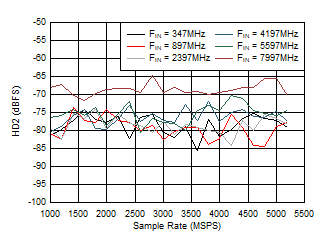

Figure 6-53 Dual Channel Mode: HD2 vs Sample Rate and Input Frequency
AIN = –1 dBFS

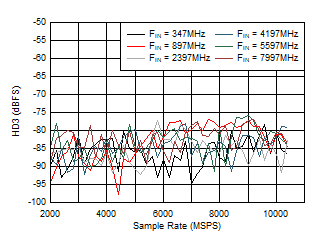

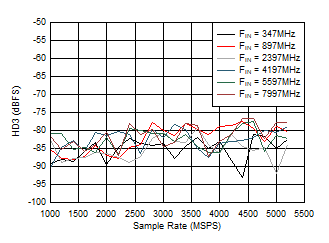

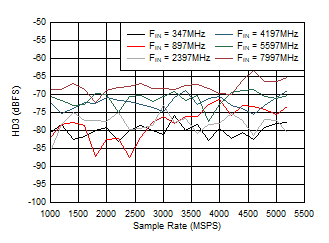

Figure 6-55 Dual Channel Mode: HD3 vs Sample Rate and Input Frequency
AIN = –12 dBFS
Figure 6-57 Dual Channel Mode: HD3 vs Sample Rate and Input Frequency

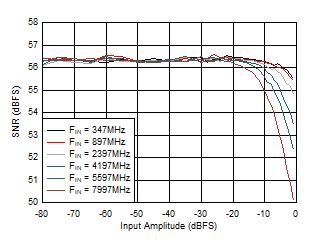

Figure 6-59 DES Mode: SNR vs Input Amplitude and Frequency

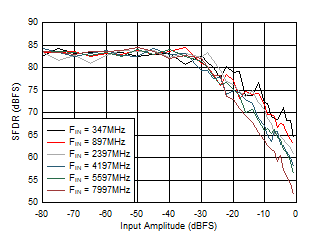

Figure 6-61 DES Mode: SFDR vs Input Amplitude and Frequency
Figure 6-63 DES Mode: HD2 vs Input Amplitude and Frequency
Figure 6-65 DES Mode: HD3 vs Input Amplitude and Frequency

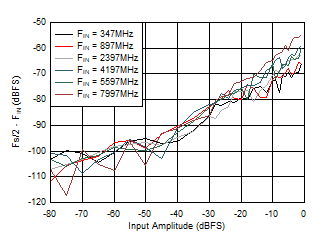

Figure 6-67 DES Mode: Fs/2 - FIN vs Input Amplitude and Frequency

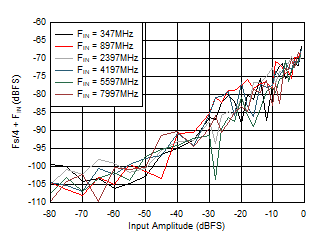

Figure 6-69 DES Mode: Fs/4 + FIN vs Input Amplitude and Frequency
Figure 6-71 DES Mode: Fs/4 - FIN vs Input Amplitude and Frequency

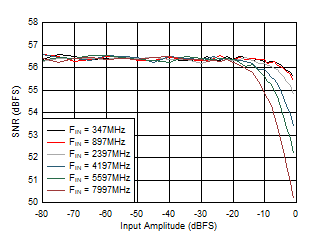

Figure 6-73 Dual Channel Mode: SNR vs Input Amplitude and Frequency
Figure 6-75 Dual Channel Mode: SFDR vs Input Amplitude and Frequency
Figure 6-77 Dual Channel Mode: HD2 vs Input Amplitude and Frequency
Figure 6-79 Dual Channel Mode: HD3 vs Input Amplitude and Frequency

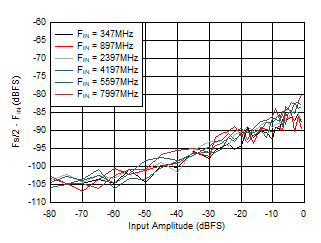

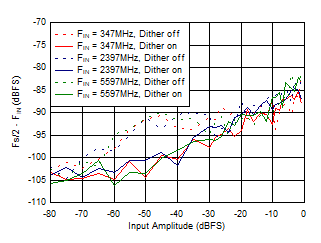

Figure 6-81 Dual Channel Mode: Fs/2 - FIN vs Input Amplitude and Frequency
Figure 6-83 DES Mode: SNR vs Clock Amplitude
Figure 6-85 Dual Channel Mode: SNR vs Clock Amplitude
FG calibration at each temperature

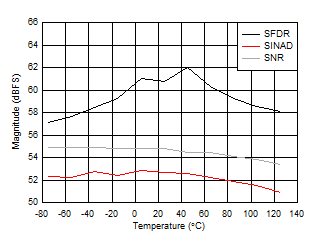

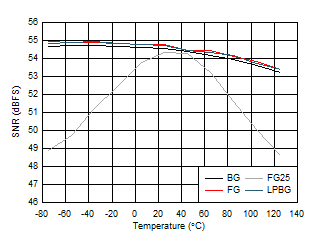

Figure 6-87 DES Mode: SNR, SINAD and SFDR vs Temperature
FG calibration at each temperature
Figure 6-89 DES Mode: HD2, HD3 and Worst non-HD Spur vs Temperature
FG calibration at each temperature

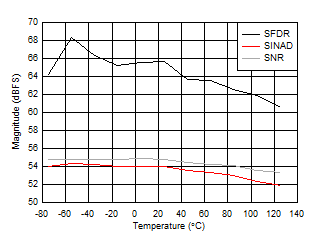

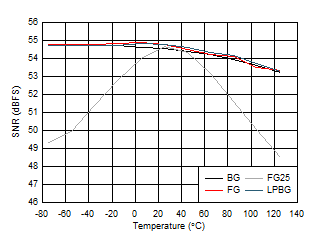

Figure 6-91 Dual Channel Mode: SNR, SINAD and SFDR vs Temperature
FG calibration at each temperature

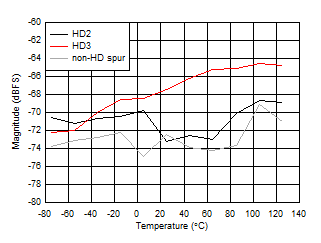

Figure 6-93 Dual Channel Mode: HD2, HD3 and Worst non-HD Spur vs Temperature

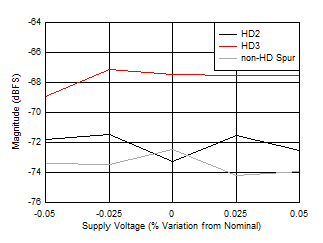

All supplies varied together

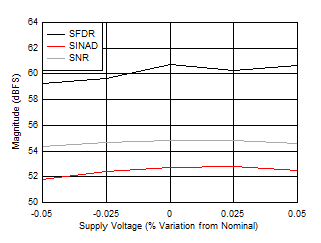

Figure 6-95 DES Mode: SNR, SINAD and SFDR vs Supply Voltage
All supplies varied together

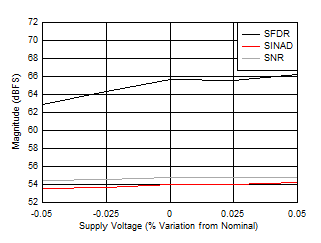

Figure 6-97 Dual Channel Mode: SNR, SINAD and SFDR vs Supply Voltage

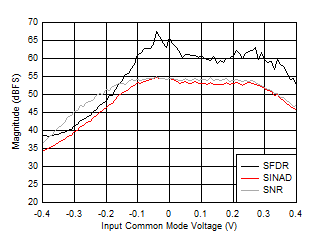

Figure 6-99 SNR, SFDR and SINAD vs Input Common Mode Voltage
each tone at -7dBFS
Figure 6-101 DES Mode: IMD3 vs Input Frequency
each tone at -7dBFS
Figure 6-103 DES Mode: IMD3 vs Tone Spacing
Figure 6-105 DES Mode: Two Tone SFDR vs Input Amplitude

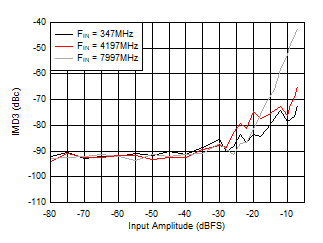

Figure 6-107 Dual Chanel Mode: IMD3 vs Input Amplitude

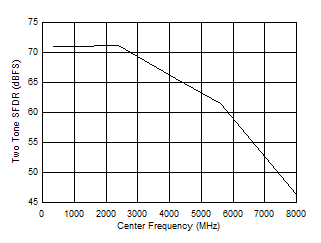

Figure 6-109 Dual Chanel Mode: Two Tone SFDR vs Input Frequency
Dual channel mode, JMODE 3

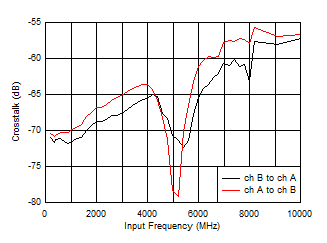

Figure 6-2 Crosstalk vs Input Frequency
Figure 6-4 INL vs ADC Code

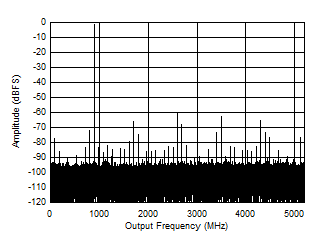

Figure 6-6 DES Mode: Single Tone FFT at 897 MHz
Figure 6-8 DES Mode: Single Tone FFT at 4197 MHz

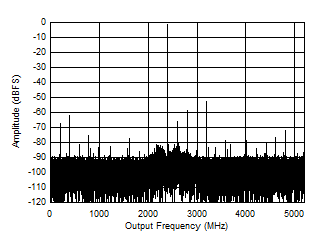

Figure 6-10 DES Mode: Single Tone FFT at 7997 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

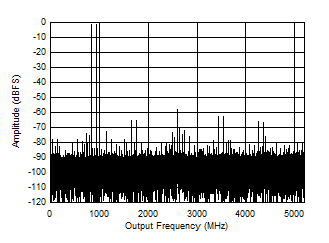

Figure 6-12 DES Mode: Two Tone FFT at 897 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

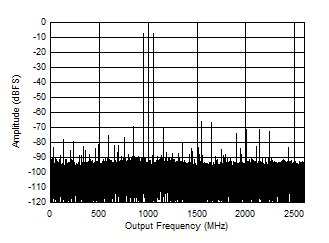

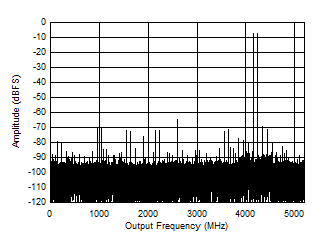

Figure 6-14 DES Mode: Two Tone FFT at 4197 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

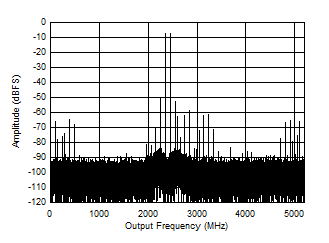

Figure 6-16 DES Mode: Two Tone FFT at 7997 MHz
Figure 6-18 Dual Channel Mode: Single Tone FFT at 897 MHz
Figure 6-20 Dual Channel Mode: Single Tone FFT at 4197 MHz
Figure 6-22 Dual Channel Mode: Single Tone FFT at 7997 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

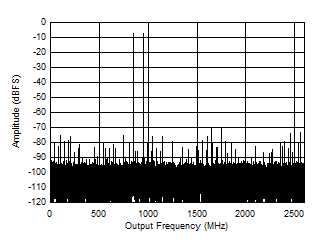

Figure 6-24 Dual Channel Mode: Two Tone FFT at 897 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing
Figure 6-26 Dual Channel Mode: Two Tone FFT at 4197 MHz
each tone at -7 dBFS, 100 MHz Tone Spacing

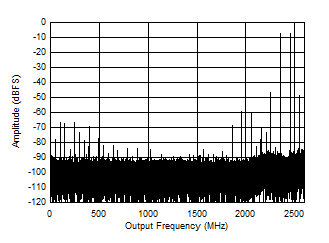

Figure 6-28 Dual Channel Mode: Two Tone FFT at 7997 MHz
AIN = –6 dBFS
Figure 6-30 DES Mode: SNR vs Sample Rate and Input Frequency
AIN = –1 dBFS

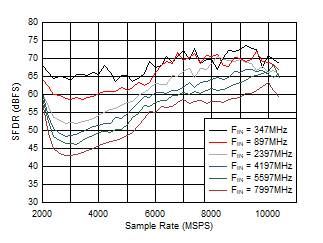

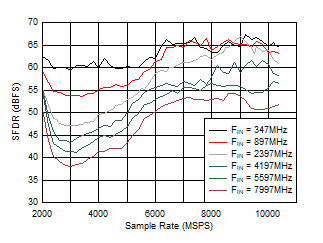

Figure 6-32 DES Mode: SFDR vs Sample Rate and Input Frequency
AIN = –12 dBFS
Figure 6-34 DES Mode: SFDR vs Sample Rate and Input Frequency
GUID-20221122-SS0I-9JWZ-5FLJ-4G7V8GBX1NLF-low.svg
JMODE 1, AIN = –80 dBFS
Figure 6-36 DES Mode: NSD vs Input Frequency
AIN = –12 dBFS
Figure 6-38 DES Mode: HD2 vs Sample Rate and Input Frequency
AIN = –6 dBFS
Figure 6-40 DES Mode: HD3 vs Sample Rate and Input Frequency
Figure 6-42 DES Mode: Fs/2 - FIN vs Sample Rate and Input Frequency
Figure 6-44 DES Mode: Fs/4 - FIN vs Sample Rate and Input Frequency
AIN = –6 dBFS

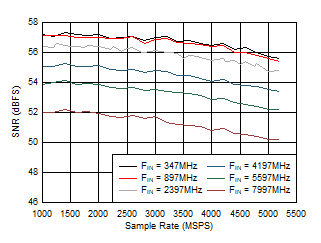

Figure 6-46 Dual Channel Mode: SNR vs Sample Rate and Input Frequency
AIN = –1 dBFS

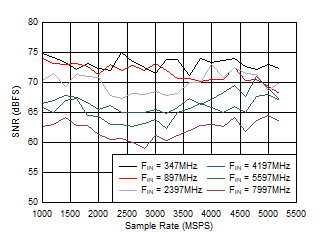

Figure 6-48 Dual Channel Mode: SFDR vs Sample Rate and Input Frequency
AIN = –12 dBFS
Figure 6-50 Dual Channel Mode: SFDR vs Sample Rate and Input Frequency
AIN = –1 dBFS
Figure 6-52 Dual Channel Mode: HD2 vs Sample Rate and Input Frequency
AIN = –12 dBFS
Figure 6-54 Dual Channel Mode: HD2 vs Sample Rate and Input Frequency
AIN = –6 dBFS
Figure 6-56 Dual Channel Mode: HD3 vs Sample Rate and Input Frequency

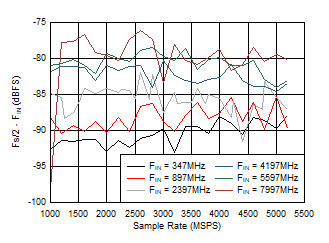

Figure 6-58 Dual Channel Mode: Fs/2 - FIN vs Sample Rate and Input Frequency

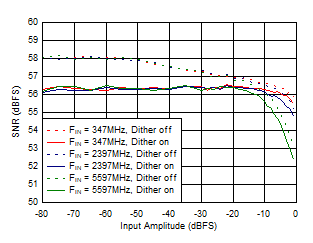

Figure 6-60 DES Mode: SNR vs Input Amplitude and Dither
Figure 6-62 DES Mode: SFDR vs Input Amplitude and Dither
Figure 6-64 DES Mode: HD2 vs Input Amplitude and Dither
Figure 6-66 DES Mode: HD3 vs Input Amplitude and Dither

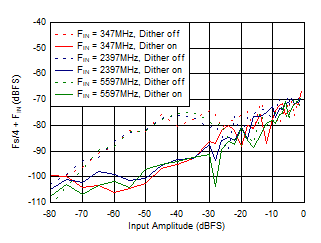

Figure 6-68 DES Mode: Fs/2 - FIN vs Input Amplitude and Dither
Figure 6-70 DES Mode: Fs/4 + FIN vs Input Amplitude and Dither
Figure 6-72 DES Mode: Fs/4 - FIN vs Input Amplitude and Dither

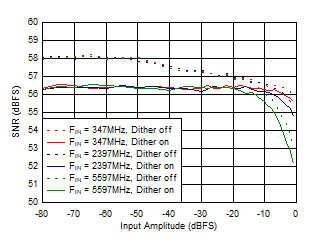

Figure 6-74 Dual Channel Mode: SNR vs Input Amplitude and Dither
Figure 6-76 Dual Channel Mode: SFDR vs Input Amplitude and Dither
Figure 6-78 Dual Channel Mode: HD2 vs Input Amplitude and Dither
Figure 6-80 Dual Channel Mode: HD3 vs Input Amplitude and Dither
Figure 6-82 Dual Channel Mode: Fs/2 - FIN vs Input Amplitude and Dither

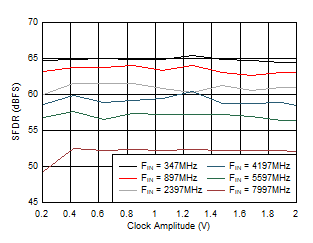

Figure 6-84 DES Mode: SFDR vs Clock Amplitude

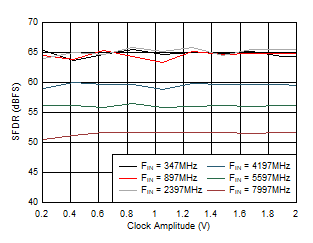

Figure 6-86 Dual Channel Mode: SFDR vs Clock Amplitude
FG25 is calibrated at 25°C and held at other temperatures, other modes recalibrated at each temperature
Figure 6-88 DES Mode: SNR vs Temperature and Calibration Mode
FG25 is calibrated at 25°C and held at other temperatures, other modes recalibrated at each temperature

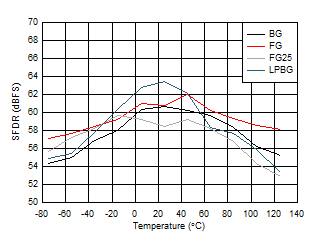

Figure 6-90 DES Mode: SFDR vs Temperature and Calibration Mode
FG25 is calibrated at 25°C and held at other temperatures, other modes recalibrated at each temperature
Figure 6-92 Dual Channel Mode: SNR vs Temperature and Calibration Mode
FG25 is calibrated at 25°C and held at other temperatures, other modes recalibrated at each temperature

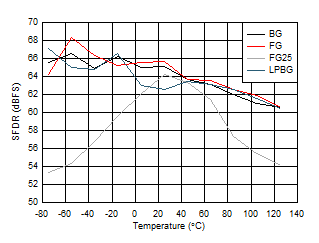

Figure 6-94 Dual Channel Mode: SFDR vs Temperature and Calibration Mode
All supplies varied together

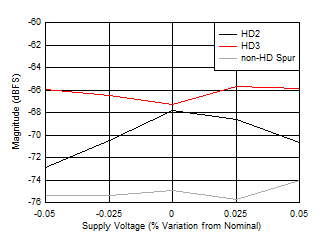

Figure 6-96 DES Mode: HD2, HD3 and Worst non-HD Spur vs Supply Voltage
All supplies varied together
Figure 6-98 Dual Channel Mode: HD2, HD3 and Worst non-HD Spur vs Supply Voltage
Figure 6-100 Fs/2 - FIN and Fs/4 ± FIN vs Input Common Mode Voltage
Figure 6-102 DES Mode: IMD3 vs Input Amplitude
each tone at -7dBFS
Figure 6-104 DES Mode: Two Tone SFDR vs Input Frequency
each tone at -7dBFS
Figure 6-106 Dual Chanel Mode: IMD3 vs Input Frequency
Figure 6-108 Dual Chanel Mode: IMD3 vs Tone Spacing
Figure 6-110 Dual Chanel Mode: Two Tone SFDR vs Input Amplitude
All modes capable of FS = 10.4GSPS

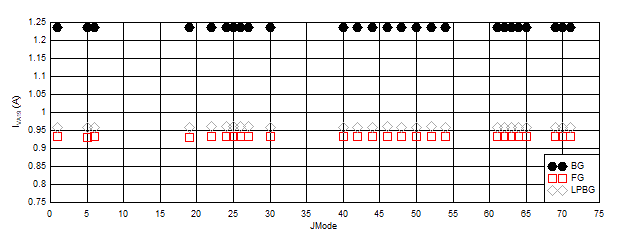

Figure 6-111 DES Mode: IVA19 vs JMODE at 10.4GSPS
All modes capable of FS = 10.4GSPS
Figure 6-112 DES Mode: IVA11 vs JMODE at 10.4GSPS
All modes capable of FS = 10.4GSPS

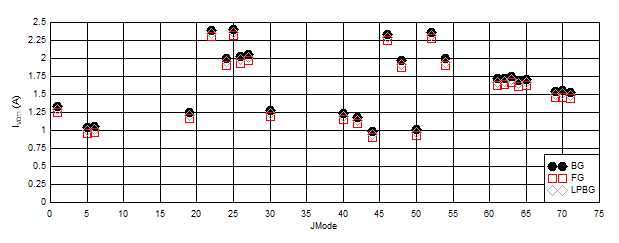

Figure 6-113 DES Mode: IVD11 vs JMODE at 10.4GSPS
All modes capable of FS = 10.4GSPS

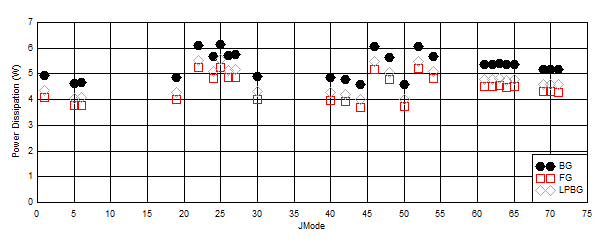

Figure 6-114 DES Mode: Power Dissipation vs JMODE at 10.4GSPS
All modes capable of FS = 5.2GSPS
Figure 6-115 Dual Channel Mode: IVA19 vs JMODE at 5.2GSPS
All modes capable of FS = 5.2GSPS
Figure 6-116 Dual Channel Mode: IVA11 vs JMODE at 5.2GSPS
All modes capable of FS = 5.2GSPS
Figure 6-117 Dual Channel Mode: IVD11 vs JMODE at 5.2GSPS
All modes capable of FS = 5.2GSPS
Figure 6-118 Dual Channel Mode: Power Dissipation vs JMODE at 5.2GSPS
At maximum possible sample rate per Table 7-23

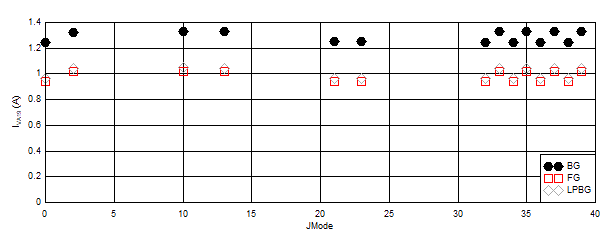

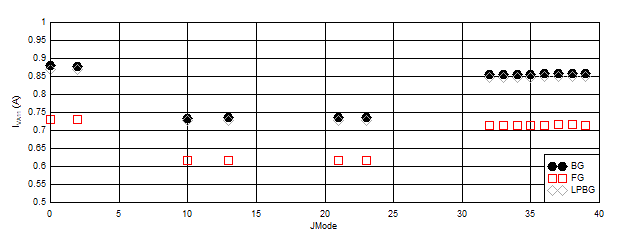

Figure 6-119 Other Modes with Lower Maximum FS: IVA19 vs JMODE
At maximum possible sample rate per Table 7-23
Figure 6-120 Other Modes with Lower Maximum FS: IVA11 vs JMODE
At maximum possible sample rate per Table 7-23
Figure 6-121 Other Modes with Lower Maximum FS: IVD11 vs JMODE
At maximum possible sample rate per Table 7-23
Figure 6-122 Other Modes with Lower Maximum FS: Power Dissipation vs JMODE
independent of JMODE

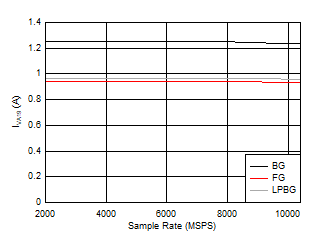

Figure 6-123 DES Mode: IVA19 vs Sample Rate
JMODE 1

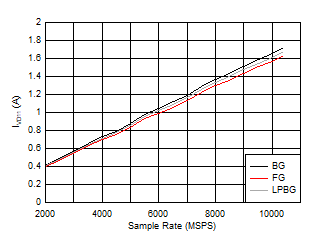

Figure 6-125 DES Mode: IVD11 vs Sample Rate
JMODE 30

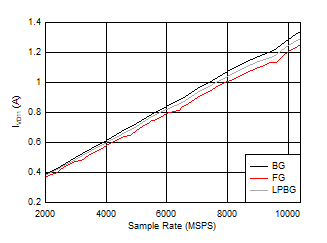

Figure 6-127 DES Mode: IVD11 vs Sample Rate
JMODE 1

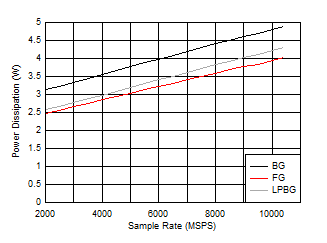

Figure 6-129 DES Mode: Power Dissipation vs Sample Rate
JMODE 30
Figure 6-131 DES Mode: Power Dissipation vs Sample Rate
independent of JMODE
Figure 6-133 Dual Channel Mode: IVA19 vs Sample Rate
JMODE 3

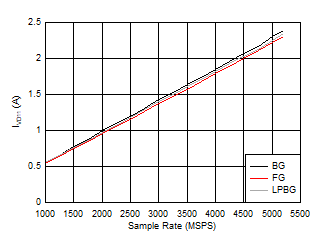

Figure 6-135 Dual Channel Mode: IVD11 vs Sample Rate
JMODE 31

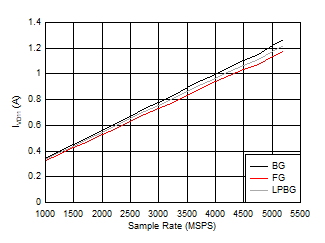

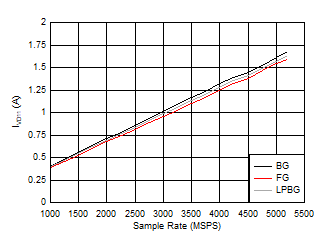

Figure 6-137 Dual Channel Mode: IVD11 vs Sample Rate
JMODE 3

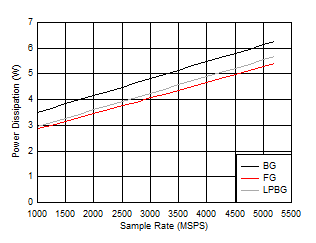

Figure 6-139 Dual Channel Mode: Power Dissipation vs Sample Rate
JMODE 31

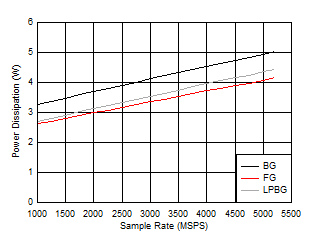

Figure 6-141 Dual Channel Mode: Power Dissipation vs Sample Rate
Figure 6-143 Power Dissipation vs Temperature
Figure 6-145 Background Calibration Core Transition (AC Signal - zoomed)
Figure 6-147 Background Calibration Core Transition (DC Signal - zoomed)
GUID-002CFEB7-1723-4286-B1F4-D3DC89BF2F69-low.svg
Figure 6-149 Pulse Overdrive Recovery Zoomed
GUID-B721755D-850C-4C87-B0BD-6AA71D648E57-low.svg
Figure 6-151 Sinewave Overdrive Recovery
independent of JMODE
Figure 6-124 DES Mode: IVA11 vs Sample Rate
JMODE 21
Figure 6-126 DES Mode: IVD11 vs Sample Rate
JMODE 61
Figure 6-128 DES Mode: IVD11 vs Sample Rate
JMODE 21
Figure 6-130 DES Mode: Power Dissipation vs Sample Rate
JMODE 61
Figure 6-132 DES Mode: Power Dissipation vs Sample Rate
independent of JMODE
Figure 6-134 Dual Channel Mode: IVA11 vs Sample Rate
JMODE 11
Figure 6-136 Dual Channel Mode: IVD11 vs Sample Rate
JMODE 59
Figure 6-138 Dual Channel Mode: IVD11 vs Sample Rate
JMODE 11
Figure 6-140 Dual Channel Mode: Power Dissipation vs Sample Rate
JMODE 59
Figure 6-142 Dual Channel Mode: Power Dissipation vs Sample Rate
Figure 6-144 Background Calibration Core Transition (AC Signal)
Figure 6-146 Background Calibration Core Transition (DC Signal)
GUID-9C6D20B7-3C65-4EB8-8FAC-59279C568CDC-low.svg
Figure 6-148 Pulse Overdrive Recovery
GUID-1E8B506F-28E4-4075-AD2A-394E8145F2FC-low.svg
Figure 6-150 Sinewave Overdrive Recovery
