6 Specifications

6.1 Absolute Maximum Ratings

The soldering process must comply with TI's Reflow Temperature Profile specifications. Refer to www.ti.com/packaging.(5)(1)(3)
MIN MAX UNIT
Supply voltage 1.2-V supply VA12, VD12 1.4 V
1.9-V supply VA19 2.2
1.2-V supply difference between VA12 and VD12 –200 200 mV
Voltage On any input pin (except VIN+ or VIN–) –0.15 V(VA19) + 0.15 V
On VIN+ or VIN– 0 2
Voltage difference |(VIN+) – (VIN–)|(2) 2 V
|(DEVCLK+) – (DEVCLK–)| 2
|(SYSREF+) – (SYSREF–)| 2
|(~SYNC+) – (~SYNC–)| 1
RF input power, PI On VIN+, VIN–, with proper input common mode maintained. FIN ≥ 3 GHz, Z(SOURCE) = 100 Ω, Input_Clamp_EN = 0 or 1 11.07 dBm
On VIN+, VIN–, with proper input common mode maintained. FIN = 1 GHz, Z(SOURCE) = 100 Ω, Input_Clamp_EN = 1 14.95
On VIN+, VIN–, with proper input common mode maintained. FIN ≤ 100 MHz, Z(SOURCE) = 100 Ω, Input_Clamp_EN = 1 20.97
Input current At any pin other than VIN+ or VIN–(4) –25 25 mA
VIN+ or VIN– –50 50 mA DC
Package(4) (sum of absolute value of all currents forced in or out, not including power supply current) 100 mA
Junction temperature, TJ Power applied. Verified by High Temperature Operation Life testing to 1000 hours. –40 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The analog inputs are protected as in the following circuit. Input-voltage magnitudes beyond the Absolute Maximum Ratings may damage this device.
ADC12J1600 ADC12J2700 30180104.gif
(3) If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/Distributors for availability and specifications.
(4) When the input voltage at any pin (other than VIN+ or VIN–) exceeds the power supply limits (that is, less than GND or greater than VA19), the current at that pin must be limited to 25 mA. The 100-mA maximum package input current rating limits the number of pins that can safely exceed the power supplies. This limit is not placed upon the power pins or thermal pad (GND).
(5) Reflow temperature profiles are different for lead-free and non-lead-free packages.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

All voltages are measured with respect to GND = 0 V, unless otherwise specified.
MIN MAX UNIT
VDD Supply voltage 1.2-V supply: VA12, VD12 1.14 1.26 V
1.9-V supply: VA19 1.8 2
Supply sequence (power-up and power-down) 1.9 supply ≥ 1.2 supply V
VCMI Analog input common mode voltage V(VCMO) – 0.15 V(VCMO) + 0.15 V
VIN+, VIN– voltage (maintaining common mode) 0 V(VA19) V
DEVCLK±, SYSREF±, ~SYNC± pin voltage range 0 V(VA19) V
VID(CLK) Differential DEVCLK±, SYSREF±, ~SYNC± amplitude 0.4 2 VPP
VCM(CLK) SYSREF±, ~SYNC± Common Mode 0.64 1.1 V
TA Ambient temperature –40 85 °C
TJ Junction temperature 135 °C

6.4 Thermal Information

THERMAL METRIC(1) ADC12J1x00 UNIT
NKE (VQFN)
68 PINS
RθJA Thermal resistance, junction-to-ambient 19.8 °C/W
RθJCbot Thermal resistance, junction-to-case (bottom) 2.7 °C/W
ψJB Characterization parameter, junction-to-board 9.1 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

6.5 Electrical Characteristics

Unless otherwise noted, these specifications apply for V(VA12) = V(VD12) = 1.2 V, V(VA19) = 1.9 V, VIN full scale range at default setting (725 mVPP), VIN = –1 dBFS, differential AC-coupled sinewave input clock, ƒ(DEVCLK) = 2.7 or 1.6 GHz at 0.5 VPP with 50% duty cycle, R(RBIAS) = 3.3 kΩ ±0.1%, after a foreground (FG) mode calibration with timing calibration enabled. Typical values are at TA = 25°C.(1)(3)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DYNAMIC PERFORMANCE CHARACTERISTICS
RES ADC core resolution Resolution with no missing codes 12 Bits
INL Integral non-linearity TA = 25°C ±2 LSB
TA = TMIN to TMAX ±3
DNL Differential non-linearity TA = 25°C ±0.25 LSB
TA = TMIN to TMAX ±0.3
Peak NPR Peak noise power ratio 500-kHz tone spacing from 1 MHz to ƒS / 2−1 MHz, DDC bypass mode
25-MHz wide notch at 320 MHz		 46 dB
IMD3 Third-order intermodulation distortion F1 = 2110 MHz at −13 dBFS
F2 = 2170 MHz at −13 dBFS		 –64 dBc
DDC BYPASS MODE, ADC12J2700, ƒ(DEVCLK) = 2.7 GHz
SNR Signal-to-noise ratio, integrated across entire Nyquist bandwidth
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 55.1 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 54.9
TA = TMIN to TMAX 52.5
TA = 25°C, calibration = BG 54.8
TA = TMIN to TMAX, calibration = BG 52.4
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 52.5
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 50
SINAD Signal-to-noise and distortion ratio, integrated across entire Nyquist bandwidth
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 55 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 54.8
TA = TMIN to TMAX 52.3
TA = 25°C, calibration = BG 54.7
TA = TMIN to TMAX, calibration = BG 52.2
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 52.4
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 50
ENOB Effective number of bits, integrated across entire Nyquist bandwidth
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 8.8 Bits
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 8.8
TA = TMIN to TMAX 8.4
TA = 25°C, calibration = BG 8.8
TA = TMIN to TMAX, calibration = BG 8.4
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 8.4
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 8
SFDR Spurious-free dynamic range
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 66.7 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 71.6
TA = TMIN to TMAX 61
TA = 25°C, calibration = BG 70
TA = TMIN to TMAX, calibration = BG 59
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 65.2
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 58.6
ƒS/2 Interleaving offset spur at ½ sampling rate FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –77 dBFS
TA = TMIN to TMAX –59.5
TA = 25°C, calibration = BG –74
TA = TMIN to TMAX, calibration = BG –57.5
ƒS/4 Interleaving offset spur at ¼ sampling rate FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –70 dBFS
TA = TMIN to TMAX –54.5
TA = 25°C, calibration = BG –68
TA = TMIN to TMAX, calibration = BG –53
ƒS/2 – FIN Interleaving offset spur at ½ sampling rate – input frequency FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –78 dBFS
TA = TMIN to TMAX –62
TA = 25°C, calibration = BG –76
TA = TMIN to TMAX, calibration = BG –61
ƒS/4 + FIN Interleaving offset spur at ¼ sampling rate + input frequency FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –76 dBFS
TA = TMIN to TMAX –61
TA = 25°C, calibration = BG –71
TA = TMIN to TMAX, calibration = BG –59
ƒS/4 – FIN Interleaving offset spur at ¼ sampling rate – input frequency FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –77 dBFS
TA = TMIN to TMAX –61.4
TA = 25°C, calibration = BG –76
TA = TMIN to TMAX, calibration = BG –61
THD Total harmonic distortion FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode –73 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –70
TA = TMIN to TMAX –61
TA = 25°C, calibration = BG –72
TA = TMIN to TMAX, calibration = BG –62
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode –68
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode –68
HD2 Second harmonic distortion FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode –72 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –79
TA = TMIN to TMAX –62
TA = 25°C, calibration = BG –81
TA = TMIN to TMAX, calibration = BG –64
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode –76
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode –70
HD3 Third harmonic distortion FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode –72 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –75
TA = TMIN to TMAX –63
TA = 25°C, calibration = BG –81
TA = TMIN to TMAX, calibration = BG –64
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode –70
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode –76
NSD Noise spectral density, average NSD across Nyquist bandwidth 12-bit DDC bypass mode, ADC12J2700, ƒ(DEVCLK) = 2.7 GHz 50-Ω AC-coupled terminated input –147.3 dBFS/Hz
–149.1 dBm/Hz
FIN = 600 MHz, –1 dBFS –146.2 dBFS/Hz
–148.0 dBm/Hz
DDC BYPASS MODE, ADC12J1600, ƒ(DEVCLK) = 1.6 GHz
SNR Signal-to-noise ratio, integrated across entire Nyquist bandwidth
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 55.3 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 54.9
TA = TMIN to TMAX 52.3
TA = 25°C, calibration = BG 54.8
TA = TMIN to TMAX, calibration = BG 52.2
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 52.5
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 49.8
SINAD Signal-to-noise and distortion ratio, integrated across entire Nyquist bandwidth
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 55.2 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 54.8
TA = TMIN to TMAX 52.1
TA = 25°C, calibration = BG 54.7
TA = TMIN to TMAX, calibration = BG 52
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 52.4
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 49.7
ENOB Effective number of bits, integrated across entire Nyquist bandwidth
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 8.9 Bits
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 8.8
TA = TMIN to TMAX 8.4
TA = 25°C, calibration = BG 8.8
TA = TMIN to TMAX, calibration = BG 8.4
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 8.4
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 8
SFDR Spurious-free dynamic range
Input frequency-dependent interleaving spurs included		 FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode 72.9 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C 74.8
TA = TMIN to TMAX 61.8
TA = 25°C, calibration = BG 71
TA = TMIN to TMAX, calibration = BG 60.7
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode 66.7
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode 59.8
ƒS/2 Interleaving offset spur at ½ sampling rate FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –77 dBFS
TA = TMIN to TMAX –59.8
TA = 25°C, calibration = BG –73
TA = TMIN to TMAX, calibration = BG –57.3
ƒS/4 Interleaving offset spur at ¼ sampling rate FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –72 dBFS
TA = TMIN to TMAX –54.3
TA = 25°C, calibration = BG –69
TA = TMIN to TMAX, calibration = BG –54
ƒS/2 – FIN Interleaving offset spur at ½ sampling rate – input frequency FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –77 dBFS
TA = TMIN to TMAX –62
TA = 25°C, calibration = BG –79
TA = TMIN to TMAX, calibration = BG –62
ƒS/4 + FIN Interleaving offset spur at ¼ sampling rate + input frequency FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –76 dBFS
TA = TMIN to TMAX –61.8
TA = 25°C, calibration = BG –74
TA = TMIN to TMAX, calibration = BG –61
ƒS/4 – FIN Interleaving offset spur at ¼ sampling rate – input frequency FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –76 dBFS
TA = TMIN to TMAX –62
TA = 25°C, calibration = BG –77
TA = TMIN to TMAX, calibration = BG –61
THD Total harmonic distortion FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode –72 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –72
TA = TMIN to TMAX –60.9
TA = 25°C, calibration = BG –71
TA = TMIN to TMAX, calibration = BG –61
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode –69
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode –69
HD2 Second harmonic distortion FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode –79 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –78
TA = TMIN to TMAX –62
TA = 25°C, calibration = BG –79
TA = TMIN to TMAX, calibration = BG –63
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode –73
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode –70
HD3 Third harmonic distortion FIN = 350 MHz, –1 dBFS, 12-bit DDC bypass mode –76 dBFS
FIN = 600 MHz, –1 dBFS, 12-bit DDC bypass mode TA = 25°C –81
TA = TMIN to TMAX –65
TA = 25°C, calibration = BG –76
TA = TMIN to TMAX, calibration = BG –61
FIN = 1500 MHz, –1 dBFS, 12-bit DDC bypass mode –72
FIN = 2400 MHz, –1 dBFS, 12-bit DDC bypass mode –76
NSD Noise spectral density, average NSD across Nyquist bandwidth 12-bit DDC bypass mode, ADC12J1600, ƒ(DEVCLK) = 1.6 GHz 50-Ω AC-coupled terminated input –145 dBFS/Hz
–146.8 dBm/Hz
FIN = 600 MHz, –1 dBFS –143.9 dBFS/Hz
–145.7 dBm/Hz
DECIMATE-BY-8 MODE, ADC12J2700, ƒ(DEVCLK) = 2.7 GHz
SNR Signal-to-noise ratio, integrated across DDC output bandwidth
Interleaving spurs included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 62.8 dBFS
Calibration = BG 62.7
FIN = 2400 MHz, –1 dBFS, Decimate-by-8 mode 53.3
SINAD Signal-to-noise and distortion ratio, integrated across DDC output bandwidth
Interleaving spurs included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 62.8 dBFS
Calibration = BG 62.7
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode 53.3
ENOB Effective number of bits, integrated across DDC output bandwidth
Interleaving spurs included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 10.1 Bits
Calibration = BG 10.1
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode 8.6
SFDR Spurious-free dynamic range
Interleaving spurs included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 75.9 dBFS
Calibration = BG 74.7
ƒS/2 Interleaving offset spur at ½ sampling rate(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –73 dBFS
Calibration = BG –72
ƒS/4 Interleaving offset spur at ¼ sampling rate(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –70 dBFS
Calibration = BG –70
ƒS/2 – FIN Interleaving spur at ½ sampling rate – input frequency(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –80 dBFS
Calibration = BG –79
ƒS/4 + FIN Interleaving spur at ¼ sampling rate + input frequency(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –73 dBFS
Calibration = BG –70
ƒS/4 – FIN Interleaving spur at ¼ sampling rate – input frequency(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –77 dBFS
Calibration = BG –77
THD Total harmonic distortion(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –70 dBFS
calibration = BG –71
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode –65
HD2 Second harmonic distortion(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –78 dBFS
Calibration = BG –76
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode –67
HD3 Third harmonic distortion(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –74 dBFS
Calibration = BG –81
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode –73
DECIMATE-BY-8 MODE, ADC12J1600, ƒ(DEVCLK) = 1.6 GHz
SNR Signal-to-noise ratio, integrated across DDC output bandwidth
Interleaving spurs included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 63.5 dBFS
Calibration = BG 63.4
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode 55.8
SINAD Signal-to-noise and distortion ratio, integrated across DDC output bandwidth
Interleaving spurs included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 63.5 dBFS
Calibration = BG 63.4
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode 55.8
ENOB Effective number of bits, integrated across DDC output bandwidth
Interleaving spurs included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 10.3 Bits
Calibration = BG 10.2
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode 9.0
SFDR Spurious-free dynamic range
Interleaving Spurs Included		 FIN = 600 MHz, –1 dBFS, decimate-by-8 mode 76.2 dBFS
Calibration = BG 76.7
ƒS/2 Interleaving offset spur at ½ sampling rate(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –73 dBFS
Calibration = BG –72
ƒS/4 Interleaving offset spur at ¼ sampling rate(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –70 dBFS
Calibration = BG –69
ƒS/2 – FIN Interleaving spur at ½ sampling rate – input frequency(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –78 dBFS
Calibration = BG –79
ƒS/4 + FIN Interleaving spur at ¼ sampling rate + input frequency(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –76 dBFS
Calibration = BG –77
ƒS/4 – FIN Interleaving spur at ¼ sampling rate – input frequency(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –77 dBFS
Calibration = BG –72
THD Total harmonic distortion(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –71 dBFS
Calibration = BG –71
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode –63
HD2 Second harmonic distortion(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –77 dBFS
Calibration = BG –78
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode –65
HD3 Third harmonic distortion(4) FIN = 600 MHz, –1 dBFS, decimate-by-8 mode –80 dBFS
Calibration = BG –77
FIN = 2400 MHz, –1 dBFS, decimate-by-8 mode –74
DDC CHARACTERISTICS
Alias protection(2) 80 dB
Alias protected bandwidth(2) 80 % of output BW
SFDR-DDC Spurious-free dynamic range of digital down-converter(2) 100 dB
Implementation loss(2) 0.5 dB
ANALOG INPUT CHARACTERISTICS
VID(VIN) Full-scale analog-differential input range Minimum FSR setting(5) 500 mVPP
Default FSR setting, TA = TMIN to TMAX 650 725 800
Maximum FSR setting(5) 950
CI(VIN) Analog input capacitance(2) Differential 0.05 pF
Each input pin to ground 1.5 pF
RID(VIN) Differential input resistance 80 95 110 Ω
FPBW Full power bandwidth –3 dB — calibration = BG 2.8 GHz
–3 dB — calibration = FG 3.2
Gain flatness DC to 2 GHz 1.2 dB
2 GHz to 4 GHz 3.8
DC to 2 GHz — calibration = BG 1.5
2 GHz to 4 GHz — calibration = BG 4.5
ANALOG OUTPUT CHARACTERISTICS (VCMO, VBG)
V(VCMO) Common-mode output voltage I(VCMO) = ±100 µA, TA = 25°C 1.225 V
I(VCMO) = ±100 µA, TA = TMIN to TMAX 1.185 1.265
TCVO(VCMO) Common-mode output-voltage temperature coefficient TA = TMIN to TMAX -21 ppm/°C
C(LOAD_VCMO) Maximum VCMO output load capacitance 80 pF
VO(BG) Bandgap reference output voltage I(BG) = ±100 µA, TA = 25°C 1.248 V
I(BG) = ±100 µA, TA = TMIN to TMAX 1.195 1.3
TCVref(BG) Bandgap reference voltage temperature coefficient TA = TMIN to TMAX,
I(BG) = ±100 µA		 0 ppm/°C
C(LOAD_BG) Maximum bandgap reference output load capacitance 80 pF
TEMPERATURE DIODE CHARACTERISTICS
V(TDIODE) Temperature diode voltage slope Offset voltage (approx. 0.77 V) varies with process and must be measured for each part. Offset measurement should be done with PowerDown=1 to minimize device self-heating. 100-µA forward current
Device active		 –1.6 mV/°C
100-µA forward current
Device in power-down		 –1.6 mV/°C
CLOCK INPUT CHARACTERISTICS (DEVCLK±, SYSREF±, SYNC~/TMST±)
VID(CLK) Differential clock input level Sine wave clock, TA = TMIN to TMAX 0.4 0.6 2 VPP
Square wave clock, TA = TMIN to TMAX 0.4 0.6 2 VPP
II(CLK) Input current VI = 0 or VI = VA ±1 µA
CI(CLK) Input capacitance(2) Differential 0.02 pF
Each input to ground 1 pF
RID(CLK) Differential input resistance TA = 25°C 95 Ω
TA = TMIN to TMAX 80 110 Ω
CML OUTPUT CHARACTERISTICS (DS0–DS7±)
VOD Differential output voltage Assumes ideal 100-Ω load
Measured differentially
Default pre-emphasis setting		 280 305 330 mV peak
VO(ofs) Output offset voltage 0.6 V
IOS Output short-circuit current Output+ and output– shorted together ±6 mA
Output+ or output– shorted to 0 V 12
ZOD Differential output impedance 100 Ω
LVCMOS INPUT CHARACTERISTICS (SDI, SCLK, SCS, SYNC~)
VIH Logic high input voltage See (5) 0.83 V
VIL Logic low input voltage See (5) 0.4 V
CI Input capacitance(2)(6) Each input to ground 1 pF
LVCMOS OUTPUT CHARACTERISTICS (SDO, OR_T0, OR_T1)
VOH CMOS H level output IOH = –400 µA(5) 1.65 1.9 V
VOL CMOS L level output IOH = 400 µA(5) 0.01 0.15 V
POWER SUPPLY CHARACTERISTICS
ADC12J2700, ƒ(DEVCLK) = 2.7 GHz
I(VA19) Analog 1.9-V supply current PD = 0, calibration = FG, bypass DDC 457 495 mA
PD = 0, calibration = BG, bypass DDC 557 594
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 557 598
I(VA12) Analog 1.2-V supply current PD = 0, calibration = FG, bypass DDC 245 296 mA
PD = 0, calibration = BG, bypass DDC 261 312
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 270 322
I(VD12) Digital 1.2-V supply current PD = 0, calibration = FG, bypass DDC 330 541 mA
PD = 0, calibration = BG, bypass DDC 341 588
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 366 610
PC Power consumption PD = 0, calibration = FG, bypass DDC 1.56 1.94 W
PD = 0, calibration = BG, bypass DDC 1.78 2.21
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 1.82 2.25
PD = 1 < 50 mW
ADC12J1600, ƒ(DEVCLK) = 1.6 GHz
I(VA19) Analog 1.9-V supply current PD = 0, calibration = FG, bypass DDC 454 493 mA
PD = 0, calibration = BG, bypass DDC 553 591
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 553 598
I(VA12) Analog 1.2-V supply current PD = 0, calibration = FG, bypass DDC 180 222 mA
PD = 0, calibration = BG, bypass DDC 190 233
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 196 243
I(VD12) Digital 1.2-V supply current PD = 0, calibration = FG, bypass DDC 225 460 mA
PD = 0, calibration = BG, bypass DDC 237 529
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 255 568
PC Power consumption PD = 0, calibration = FG, bypass DDC 1.35 1.75 W
PD = 0, calibration = BG, bypass DDC 1.56 2.04
PD = 0, calibration = BG, decimate by 8, DDR = 0, P54 = 1 1.59 2.11
PD = 1 < 50 mW
(1) To ensure accuracy, the VA19, VA12, and VD12 pins are required to be well bypassed. Each supply pin must be decoupled with one or more bypass capacitors.
(2) This parameter is specified by design and is not tested in production.
(3) Interleave related fixed frequency spurs at ƒS / 4 and ƒS / 2 are excluded from all SNR, SINAD, ENOB and SFDR specifications. The magnitude of these spurs is provided separately.
(4) Magnitude of reported tones in output spectrum of ADC core. This tone will only be present in the DDC output for specific Decimation and NCO settings. Careful frequency planning can be used to intentionally place unwanted tones outside the DDC output spectrum.
(5) This parameter is specified by design, characterization, or both and is not tested in production.
(6) The digital control pin capacitances are die capacitances only and is in addition to package and bond-wire capacitance of approximately 0.4 pF.

6.6 Timing Requirements

MIN NOM MAX UNIT
DEVICE (SAMPLING) CLOCK
ƒ(DEVCLK) Input DEVCLK frequency Sampling rate is equal to clock input, ADC12J2700 1 2.7 GHz
Sampling rate is equal to clock input, ADC12J1600 1 1.6
td(A) Sampling (aperture) delay Input CLK transition to sampling instant 0.64 ns
t(AJ) Aperture jitter 0.1 ps RMS
t(LAT) ADC core latency(2) Decimation = 1, DDR = 1, P54 = 0 64 t(DEVCLK)
t(LAT_DDC) ADC core and DDC latency(2) Decimation = 4, DDR = 1, P54 = 0 292 t(DEVCLK)
Decimation = 4, DDR = 1, P54 = 1 284
Decimation = 8, DDR = 0, P54 = 0 384
Decimation = 8, DDR = 0, P54 = 1 368
Decimation = 8, DDR = 1, P54 = 0 392
Decimation = 8, DDR = 1, P54 = 1 368
Decimation = 10, DDR = 0, P54 = 0 386
Decimation = 10, DDR = 1, P54 = 0 386
Decimation = 16, DDR = 0, P54 = 0 608
Decimation = 16, DDR = 0, P54 = 1 560
Decimation = 16, DDR = 1, P54 = 0 608
Decimation = 16, DDR = 1, P54 = 1 560
Decimation = 20, DDR = 0, P54 = 0 568
Decimation = 20, DDR = 1, P54 = 0 568
Decimation = 32, DDR = 0, P54 = 0 1044
Decimation = 32, DDR = 0, P54 = 1 948
Decimation = 32, DDR = 1, P54 = 0 1044
JESD204B INTERFACE LINK TIMING CHARACTERISTICS (REFER TO Figure 1)
td(LMFC) SYSREF to LMFC delay
Functional delay between SYSREF assertion latched and LMFC frame boundary(2)		 All decimation modes 40 t(DEVCLK)
td(TX) LMFC to frame boundary delay - DDC bypass mode
Functional delay from LMFC frame boundary to beginning of next multi-frame in transmitted data.(3)		 Decimation = 1, DDR = 1, P54 = 0 52.7 t(DEVCLK)
td(TX) LMFC to frame boundary delay - decimation modes
Functional delay from LMFC frame boundary to beginning of next multi-frame in transmitted data(3)		 Decimation = 4, DDR = 1, P54 = 0 52.7 t(DEVCLK)
Decimation = 4, DDR = 1, P54 = 1 43.9
Decimation = 8, DDR = 0, P54 = 0 60.7
Decimation = 8, DDR = 0, P54 = 1 51.5
Decimation = 8, DDR = 1, P54 = 0 52.7
Decimation = 8, DDR = 1, P54 = 1 43.9
Decimation = 10, DDR = 0, P54 = 0 60.7
Decimation = 10, DDR = 1, P54 = 0 52.7
Decimation = 16, DDR = 0, P54 = 0 60.7
Decimation = 16, DDR = 0, P54 = 1 51.5
Decimation = 16, DDR = 1, P54 = 0 52.7
Decimation = 16, DDR = 1, P54 = 1 43.9
Decimation = 20, DDR = 0, P54 = 0 60.7
Decimation = 20, DDR = 1, P54 = 0 52.7
Decimation = 32, DDR = 0, P54 = 0 60.7
Decimation = 32, DDR = 0, P54 = 1 51.5
Decimation = 32, DDR = 1, P54 = 0 52.7
tsu(SYNC~-F) SYNC~ to LMFC setup time(1)
Required SYNC~ setup time relative to the internal LMFC boundary.		 40 t(DEVCLK)
th(SYNC~-F) SYNC~ to LMFC hold time(1)
Required SYNC~ hold time relative to the internal LMFC boundary.		 –8
t(SYNC~) SYNC~ assertion time
Required SYNC~ assertion time before deassertion to initiate a link resynchronization.		 4 Frame clock cycles
td(LMFC) Delay from SYSREF sampled high by DEVCLK to internal LMFC boundary 40 t(DEVCLK)
t(ILA) Duration of initial lane alignment sequence 4 Multi-frame clock cycles
SYSREF
tsu(SYS) Setup time SYSREF relative to DEVCLK rising edge(5) 40 ps
th(SYS) Hold time SYSREF relative to DEVCLK rising edge(5) 40 ps
t(PH_SYS) SYSREF assertion duration after rising edge event. 8 t(DEVCLK)
t(PL_SYS) SYSREF deassertion duration after falling edge event. 8 t(DEVCLK)
t(SYS) Period SYSREF± DDR = 0, P54 = 0 K × F × 10 t(DEVCLK)
DDR = 0, P54 = 1 K × F × 8
DDR = 1, P54 = 0 K × F × 5
DDR = 1, P54 = 1 K × F × 4
SERIAL INTERFACE (REFER TO Figure 2)
ƒ(SCK) Serial clock frequency(2) 20 MHz
t(PH) Serial clock high time 20 ns
t(PL) Serial clock low time 20 ns
tsu Serial-data to serial-clock rising setup time(2) 10 ns
th Serial-data to serial clock rising hold time(2) 10 ns
t(CSS) SCS-to-serial clock rising setup time 10 ns
t(CSH) SCS-to-serial clock falling hold time 10 ns
t(IAG) Inter-access gap 10 ns
(1) This parameter must be met to achieve deterministic alignment of the data frame and NCO phase to other similar devices. If this parameter is not met the device will still function correctly but will not be aligned to other devices.
(2) Unless otherwise specified, delays quoted are exact un-rounded functional delays (assuming zero propagation delay).
(3) The values given are functional delays only. Additional propagation delay of 0 to 3 clock cycles will be present.

6.7 Internal Characteristics

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
DEVICE (SAMPLING) CLOCK
td(A) Sampling (aperture) delay Input CLK transition to sampling instant 0.64 ns
t(AJ) Aperture jitter 0.1 ps RMS
t(LAT) ADC core latency. See (2) Decimation = 1, DDR = 1, P54 = 0 64 t(DEVCLK)
CALIBRATION TIMING CHARACTERISTICS (REFER TO THE CALIBRATION SECTION)
t(CAL) Calibration cycle time Calibration = FG, T_AUTO=1 227 × 106 t(DEVCLK)
Calibration = FG, T_AUTO=0 102 × 106
JESD204B INTERFACE LINK TIMING CHARACTERISTICS (REFER TO Figure 1)
td(LMFC) SYSREF to LMFC delay
Functional delay between SYSREF assertion latched and LMFC frame boundary(2)		 All decimation modes 40 t(DEVCLK)
td(TX) LMFC to Frame Boundary delay - DDC Bypass Mode
Functional delay from LMFC frame boundary to beginning of next multi-frame in transmitted data(3)		 Decimation = 1, DDR = 1, P54 = 0 52.7 t(DEVCLK)
td(TX) LMFC to frame boundary delay - decimation modes
Functional delay from LMFC frame boundary to beginning of next multi-frame in transmitted data(3)		 Decimation = 4, DDR = 1, P54 = 0 52.7 t(DEVCLK)
Decimation = 4, DDR = 1, P54 = 1 43.9
Decimation = 8, DDR = 0, P54 = 0 60.7
Decimation = 8, DDR = 0, P54 = 1 51.5
Decimation = 8, DDR = 1, P54 = 0 52.7
Decimation = 8, DDR = 1, P54 = 1 43.9
Decimation = 10, DDR = 0, P54 = 0 60.7
Decimation = 10, DDR = 1, P54 = 0 52.7
Decimation = 16, DDR = 0, P54 = 0 60.7
Decimation = 16, DDR = 0, P54 = 1 51.5
Decimation = 16, DDR = 1, P54 = 0 52.7
Decimation = 16, DDR = 1, P54 = 1 43.9
Decimation = 20, DDR = 0, P54 = 0 60.7
Decimation = 20, DDR = 1, P54 = 0 52.7
Decimation = 32, DDR = 0, P54 = 0 60.7
Decimation = 32, DDR = 0, P54 = 1 51.5
Decimation = 32, DDR = 1, P54 = 0 52.7
td(LMFC) Delay from SYSREF sampled high by DEVCLK to internal LMFC boundary 40 t(DEVCLK)
t(ILA) Duration of initial lane alignment sequence 4 Multi-frame clock cycles

6.8 Switching Characteristics

Unless otherwise noted, these specifications apply for V(VA12) = V(VD12) = 1.2 V, V(VA19) = 1.9 V, VIN FSR (AC coupled) = Default setting, differential AC-coupled sinewave input clock, ƒ(DEVCLK) = 2.7 or 1.6 GHz at 0.5 VPP with 50% duty cycle, R(RBIAS) = 3.3 kΩ ±0.1%, after a foreground mode calibration with timing calibration enabled. Typical values are at TA = 25°C.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SERIAL DATA OUTPUTS
Serialized output bit rate 1 10 Gbps
Serialized output bit rate DDR = 0, P54 = 0 ƒS
DDR = 0, P54 = 1 1.25 × ƒS
DDR = 1, P54 = 0 2 × ƒS
DDR = 1, P54 = 1 2.5 × ƒS
tTLH LH transition time — differential 10% to 90%, 8 Gbps 35 ps
tTHL HL transition time — differential 10% to 90%, 8 Gbps 35 ps
UI Unit interval 8 Gbps serial rate 125 ps
DDJ Data dependent jitter 8 Gbps serial rate 11.3 ps
RJ Random Jitter 8 Gbps serial rate 1.4 ps
SERIAL INTERFACE
t(OZD) SDO tri-state to driven See Figure 2 5 ns
t(ODZ) SDO driven to tri-state 2.5 5 ns
t(OD) SDO output delay 20 ns

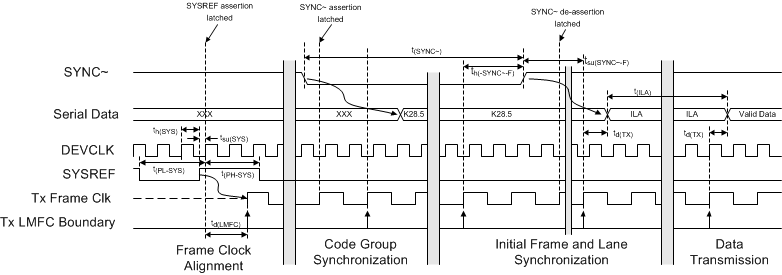

ADC12J1600 ADC12J2700 JESD204_Synchronization_Timing.gif Figure 1. JESD204 Synchronization
ADC12J1600 ADC12J2700 30180119.gif Figure 2. Serial Interface Timing

6.9 Typical Characteristics

Unless otherwise noted, these specifications apply for V(VA12) = V(VD12) = 1.2 V, V(VA19) = 1.9 V, VIN FSR (AC coupled) = Default setting, differential AC-coupled sinewave input clock, ƒ(DEVCLK) = 2.7 or 1.6 GHz at 0.5 VPP with 50% duty cycle, R(RBIAS) = 3.3 kΩ ±0.1%, after a Foreground mode calibration with Timing Calibration enabled. TA = 25°C. VI = –1 dBFS.
ADC12J1600 ADC12J2700 D120_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 3. SNR, SINAD, SFDR vs Sampling Rate
ADC12J1600 ADC12J2700 D124_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 5. Power Consumption vs Sampling Rate

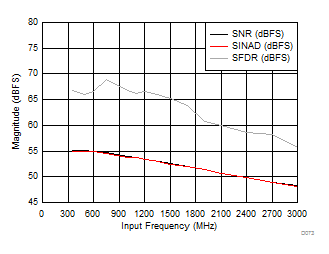

ADC12J1600 ADC12J2700 D073_SLAS989.gif
ADC12J2700 DDC bypass mode
Figure 7. SNR, SINAD, SFDR vs Input Frequency
ADC12J1600 ADC12J2700 D091_SLAS989.gif
ADC12J2700 FIN = 2483 MHz
Figure 9. SNR, SINAD, SFDR vs Decimation Setting

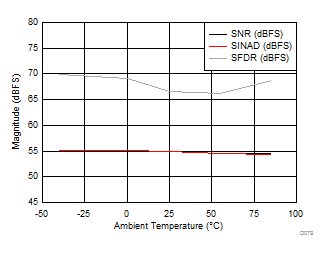

ADC12J1600 ADC12J2700 D079_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 11. SNR, SINAD, SFDR vs Temperature
ADC12J1600 ADC12J2700 D088_SLAS989.gif
ADC12J2700 FIN = 608 MHz
Figure 13. ENOB vs Decimation Setting
ADC12J1600 ADC12J2700 D077_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 15. ENOB vs Supply Voltage
ADC12J1600 ADC12J2700 D074_SLAS989.gif
ADC12J2700 DDC bypass mode
Figure 17. THD, H2, H3 vs Input Frequency
ADC12J1600 ADC12J2700 D081_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 19. THD, H2, H3 vs Temperature
ADC12J1600 ADC12J2700 D082_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 21. Power Consumption vs Supply Voltage
ADC12J1600 ADC12J2700 D090_SLAS989.gif
ADC12J2700 FIN = 608 MHz
Figure 23. Supply Current vs Decimation Setting
ADC12J1600 ADC12J2700 D085_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 25. Supply Current vs Temperature
ADC12J1600 ADC12J2700 D112_SLAS989.gif
ADC12J1600 FIN = 608 MHz
Figure 27. SNR, SINAD, SFDR vs Decimation Setting
ADC12J1600 ADC12J2700 D102_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 29. SNR, SINAD, SFDR vs Supply Voltage
ADC12J1600 ADC12J2700 D101_SLAS989.gif
ADC12J1600 DDC bypass mode
Figure 31. ENOB vs Input Frequency
ADC12J1600 ADC12J2700 D119_SLAS989.gif
ADC12J1600 FIN = 2483 MHz
Figure 33. ENOB vs Decimation Setting
ADC12J1600 ADC12J2700 D106_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 35. ENOB vs Temperature
ADC12J1600 ADC12J2700 D104_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 37. THD, H2, H3 vs Supply Voltage
ADC12J1600 ADC12J2700 D115_SLAS989.gif
ADC12J1600 FIN = 608 MHz
Figure 39. Power Consumption vs Decimation Setting
ADC12J1600 ADC12J2700 D110_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 41. Power Consumption vs Temperature
ADC12J1600 ADC12J2700 D109_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 43. Supply Current vs Supply Voltage
ADC12J1600 ADC12J2700 D037_SLAS989.gif
Foreground calibration mode
Figure 45. Insertion Loss vs Input Frequency
ADC12J1600 ADC12J2700 D069_SLAS989.gif
Figure 47. DNL versus Code - ADC12J2700
ADC12J1600 ADC12J2700 D071_SLAS989.gif
Figure 49. DNL versus Code - ADC12J1600
ADC12J1600 ADC12J2700 D055_SLAS989.gif
Figure 51. Decimate by 4 - Stopband Response
ADC12J1600 ADC12J2700 D057_SLAS989.gif
Figure 53. Decimate by 8 - Stopband Response
ADC12J1600 ADC12J2700 D059_SLAS989.gif
Figure 55. Decimate by 10 - Stopband Response
ADC12J1600 ADC12J2700 D061_SLAS989.gif
Figure 57. Decimate by 16 - Stopband Response
ADC12J1600 ADC12J2700 D063_SLAS989.gif
Figure 59. Decimate by 20 - Stopband Response
ADC12J1600 ADC12J2700 D065_SLAS989.gif
Figure 61. Decimate by 32 - Stopband Response
ADC12J1600 ADC12J2700 D122_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 4. ENOB vs Sampling Rate
ADC12J1600 ADC12J2700 D123_SLAS989.gif
DDC bypass mode FIN = 608 MHz
Figure 6. Supply Current vs Sampling Rate
ADC12J1600 ADC12J2700 D086_SLAS989.gif
ADC12J2700 FIN = 608 MHz
Figure 8. SNR, SINAD, SFDR vs Decimation Setting
ADC12J1600 ADC12J2700 D076_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 10. SNR, SINAD, SFDR vs Supply Voltage
ADC12J1600 ADC12J2700 D075_SLAS989.gif
ADC12J2700 DDC bypass mode
Figure 12. ENOB vs Input Frequency
ADC12J1600 ADC12J2700 D093_SLAS989.gif
ADC12J2700 FIN = 2483 MHz

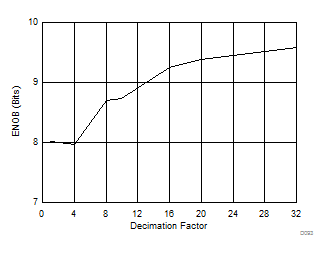

Figure 14. ENOB vs Decimation Setting
ADC12J1600 ADC12J2700 D080_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz

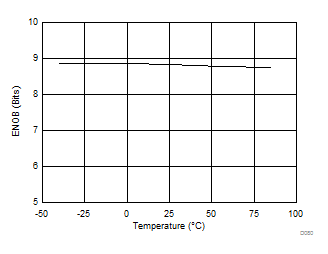

Figure 16. ENOB vs Temperature
ADC12J2700
ADC12J1600 ADC12J2700 D078_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 18. THD, H2, H3 vs Supply Voltage
ADC12J1600 ADC12J2700 D089_SLAS989.gif
ADC12J2700 FIN = 608 MHz
Figure 20. Power Consumption vs Decimation Setting
ADC12J1600 ADC12J2700 D084_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz

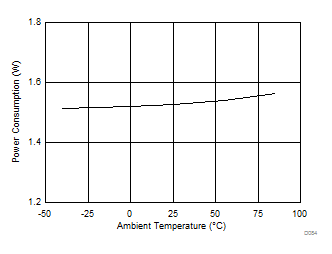

Figure 22. Power Consumption vs Temperature
ADC12J1600 ADC12J2700 D083_SLAS989.gif
ADC12J2700 DDC bypass mode FIN = 608 MHz
Figure 24. Supply Current vs Supply Voltage
ADC12J1600 ADC12J2700 D099_SLAS989.gif
ADC12J1600 DDC bypass mode
Figure 26. SNR, SINAD, SFDR vs Input Frequency
ADC12J1600 ADC12J2700 D117_SLAS989.gif
ADC12J1600 FIN = 2483 MHz
Figure 28. SNR, SINAD, SFDR vs Decimation Setting
ADC12J1600 ADC12J2700 D105_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 30. SNR, SINAD, SFDR vs Temperature
ADC12J1600 ADC12J2700 D114_SLAS989.gif
ADC12J1600 FIN = 608 MHz
Figure 32. ENOB vs Decimation Setting
ADC12J1600 ADC12J2700 D103_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 34. ENOB vs Supply Voltage
ADC12J1600 ADC12J2700 D100_SLAS989.gif
ADC12J1600 DDC bypass mode
Figure 36. THD, H2, H3 vs Input Frequency
ADC12J1600 ADC12J2700 D107_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 38. THD, H2, H3 vs Temperature
ADC12J1600 ADC12J2700 D108_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 40. Power Consumption vs Supply Voltage
ADC12J1600 ADC12J2700 D116_SLAS989.gif
ADC12J1600 FIN = 608 MHz
Figure 42. Supply Current vs Decimation Setting
ADC12J1600 ADC12J2700 D111_SLAS989.gif
ADC12J1600 DDC bypass mode FIN = 608 MHz
Figure 44. Supply Current vs Temperature
ADC12J1600 ADC12J2700 D038_SLAS989.gif
Background calibration mode
Figure 46. Insertion Loss vs Input Frequency
ADC12J1600 ADC12J2700 D070_SLAS989.gif

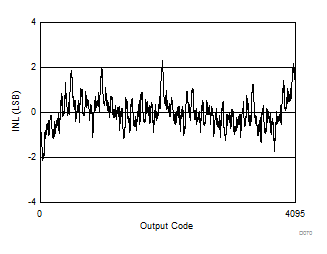

Figure 48. INL versus Code - ADC12J2700
ADC12J1600 ADC12J2700 D072_SLAS989.gif

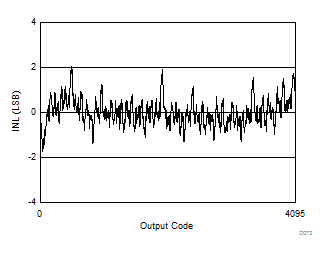

Figure 50. INL versus Code - ADC12J1600
ADC12J1600 ADC12J2700 D056_SLAS989.gif
Figure 52. Decimate by 4 - Passband Response
ADC12J1600 ADC12J2700 D058_SLAS989.gif
Figure 54. Decimate by 8 - Passband Response
ADC12J1600 ADC12J2700 D060_SLAS989.gif
Figure 56. Decimate by 10 - Passband Response
ADC12J1600 ADC12J2700 D062_SLAS989.gif

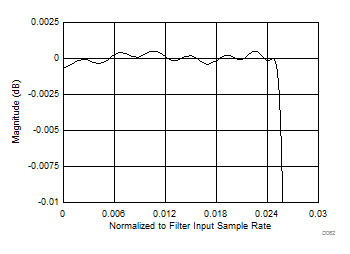

Figure 58. Decimate by 16 - Passband Response
ADC12J1600 ADC12J2700 D064_SLAS989.gif
Figure 60. Decimate by 20 - Passband Response
ADC12J1600 ADC12J2700 D066_SLAS989.gif
Figure 62. Decimate by 32 - Passband Response
