6.11 Typical Characteristics - ADC3641

Typical values at TA = 25 °C, ADC sampling rate FS = 10 MSPS, AIN = –1 dBFS differential input, AVDD = IOVDD = 1.8 V, 65k FFT, external 1.6 V reference, 5 pF output load, unless otherwise noted.

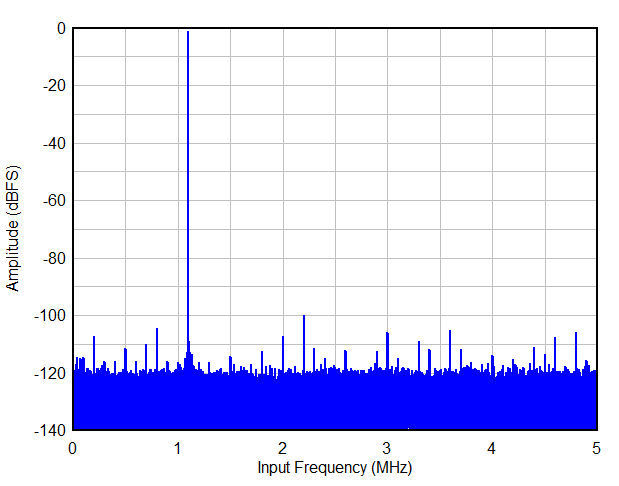

Figure 6-1 Single Tone FFT at FIN = 1.1 MHz
AIN = -20 dBFS/tone
Figure 6-3 Two Tone FFT at FIN = 3, 4 MHz
Figure 6-5 ENOB vs Input Frequency
FIN = 1.1 MHz
Figure 6-7 AC Performance vs Sampling Rate
FIN = 1.1 MHz
Figure 6-9 AC Performance vs AVDD
FIN = 1.1 MHz
Figure 6-11 INL vs Code
Figure 6-13 DC Histogram

FIN = 1 MHz
Figure 6-15 Current vs Sampling Rate

DDR CMOS, FIN = 1.1 MHz
Figure 6-17 IIOVDD Current vs Load Capacitance
AIN = -7 dBFS/tone
Figure 6-2 Two Tone FFT at FIN = 3, 4 MHz
Figure 6-4 AC Performance vs Input Frequency
FIN = 1.1 MHz
Figure 6-6 AC Performance vs Input Amplitude
Differential (Diff) clock, FIN = 1.1 MHz
Figure 6-8 AC Performance vs Clock Amplitude
FIN = 1.1 MHz
Figure 6-10 AC Performance vs VCM vs Temperature
FIN = 1.1 MHz
Figure 6-12 DNL vs Code
Pulse Input = 1 MHz
Figure 6-14 Pulse Response

FIN = 1.1 MHz
Figure 6-16 IIOVDD Current vs Decimation
