7.5.2.1 F/S Mode Protocol

The following steps explain a complete transaction in F/S mode.

  1. The controller initiates data transfer by generating a start condition. The start condition is when a high-to-low transition occurs on the SDA line while SCL is high, as shown in Figure 7-10. All I2C-compatible devices recognize a start condition.
  2. The controller then generates the SCL pulses, and transmits the 7-bit address and the read/write direction bit (R/W) on the SDA line. During all transmissions, the controller makes sure that data are valid. A valid data condition requires the SDA line to be stable during the entire high period of the clock pulse, as shown in Figure 7-11. All devices recognize the address sent by the controller and compare the address to the respective internal fixed address. Only the target device with a matching address generates an acknowledge by pulling the SDA line low during the entire high period of the 9th SCL cycle, as shown in Figure 7-9. When the controller detects this acknowledge, the communication link with a target has been established.
  3. The controller generates further SCL cycles to transmit (R/W bit 0) or receive (R/W bit 1) data to the target. In either case, the receiver must acknowledge the data sent by the transmitter. The acknowledge signal can be generated by the controller or by the target, depending on which is the receiver. The 9-bit valid data sequences consists of eight data bits and one acknowledge-bit, and can continue as long as necessary.
  4. To signal the end of the data transfer, the controller generates a stop condition by pulling the SDA line from low-to-high while the SCL line is high, as shown in Figure 7-10. This action releases the bus and stops the communication link with the addressed target. All I2C-compatible devices recognize the stop condition. Upon receipt of a stop condition, the bus is released, and all target devices then wait for a start condition followed by a matching address.

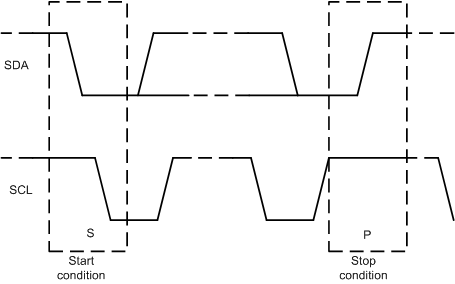

GUID-3D00E7B8-63E6-457E-A528-F6C73C83ACAE-low.gifFigure 7-10 Start and Stop Conditions

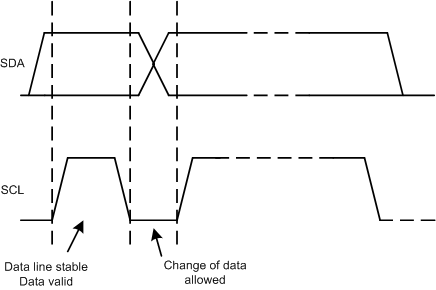

GUID-94529BE8-E19B-499E-A382-7D5886C1E946-low.gifFigure 7-11 Bit Transfer on the I2C Bus
