4.12.9 RX Typical Characteristics at 1.75-1.9GHz

Typical values at TA = +25°C, ADC Sampling Rate = 2949.12GHz. Default conditions: output sample rate = 491.52MSPS (decimate by 6), PLL clock mode with fREF = 491.52MHz, AIN = –3dBFS, DSA setting = 4dB.

AFE7950-SP RX In-Band Gain Flatness, fIN = 1750MHz
With 1.8GHz matching, normalized to 1.75GHz
Figure 4-316 RX In-Band Gain Flatness, fIN = 1750MHz
AFE7950-SP RX Input Phase vs Temperature and DSA at fIN = 1.75GHz
With 2.6GHz matching, normalized to phase at 25°C
Figure 4-318 RX Input Phase vs Temperature and DSA at fIN = 1.75GHz
AFE7950-SP RX Calibrated Differential Amplitude Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 4-320 RX Calibrated Differential Amplitude Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Calibrated Integrated Amplitude Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 4-322 RX Calibrated Integrated Amplitude Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Calibrated Differential Phase Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 4-324 RX Calibrated Differential Phase Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Calibrated Integrated Phase Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 4-326 RX Calibrated Integrated Phase Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Noise Spectral Density vs Temperature at 1.75GHz
With 1.8GHz matching, 12.5MHz offset from tone
Figure 4-328 RX Noise Spectral Density vs Temperature at 1.75GHz
AFE7950-SP RX Noise Spectral Density vs Input Amplitude and Channel at 1.75GHz
With 1.8GHz matching, 12.5MHz offset from tone
Figure 4-330 RX Noise Spectral Density vs Input Amplitude and Channel at 1.75GHz
AFE7950-SP RX IMD3 vs Input Level and Temperature at 1.75GHz
With 1.8GHz matching, tone spacing = 20MHz, DSA = 4dB
Figure 4-332 RX IMD3 vs Input Level and Temperature at 1.75GHz

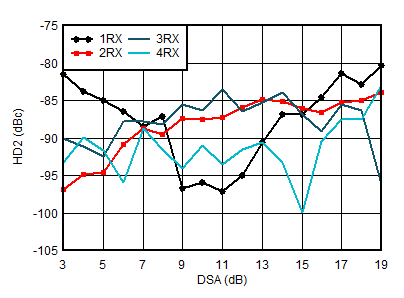

AFE7950-SP RX HD2 vs DSA Setting and Channel at 1.9 GHz
With 1.8GHz matching, fin = 1900MHz, measured after HD2 trim, DDC bypass mode (TI only mode for characterization)
Figure 4-334 RX HD2 vs DSA Setting and Channel at 1.9 GHz
AFE7950-SP RX HD2 vs Input Amplitude and Channel at 1.9GHz
With 1.8GHz matching, fin = 1900MHz, measured after HD2 trim, DDC bypass mode (TI only mode for characterization)
Figure 4-336 RX HD2 vs Input Amplitude and Channel at 1.9GHz
AFE7950-SP RX HD3 vs DSA Setting and Channel at 1.9GHz
With 1.8GHz matching, fin = 1900MHz, DDC bypass mode (TI only mode for characterization)
Figure 4-338 RX HD3 vs DSA Setting and Channel at 1.9GHz
AFE7950-SP RX HD3 vs Input Level and Channel at 1.9GHz
With 1.8GHz matching, fin = 1900MHz, DDC bypass mode (TI only mode for characterization)
Figure 4-340 RX HD3 vs Input Level and Channel at 1.9GHz
AFE7950-SP RX In-Band SFDR (±400MHz) vs Input Amplitude at 1.75GHz
With 1.8GHz matching, decimated by 3
Figure 4-342 RX In-Band SFDR (±400MHz) vs Input Amplitude at 1.75GHz
AFE7950-SP RX IMD3 vs Supply and Channel at 1.75GHz
With 1.8GHz matching, –7dBFS each tone, 20MHz tone spacing, all supplies at MIN, TYP, or MAX recommended operating voltages
Figure 4-344 RX IMD3 vs Supply and Channel at 1.75GHz
AFE7950-SP RX Input Fullscale vs Temperature and Channel at 1.75GHz
With 1.8GHz matching, normalized to fullscale at 25°C for each channel
Figure 4-317 RX Input Fullscale vs Temperature and Channel at 1.75GHz
AFE7950-SP RX Uncalibrated Differential Amplitude Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 4-319 RX Uncalibrated Differential Amplitude Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Uncalibrated Integrated Amplitude Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 4-321 RX Uncalibrated Integrated Amplitude Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Uncalibrated Differential Phase Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 4-323 RX Uncalibrated Differential Phase Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Uncalibrated Integrated Phase Error vs DSA Setting at 1.75GHz
With 1.8GHz matching
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 4-325 RX Uncalibrated Integrated Phase Error vs DSA Setting at 1.75GHz
AFE7950-SP RX Output FFT at 1.75GHz
With 1.8GHz matching, fIN = 2610MHz, AIN = –3dBFS
Figure 4-327 RX Output FFT at 1.75GHz
AFE7950-SP RX Noise Spectral Density vs Input Amplitude and Temperature at 1.75GHz
With 1.8GHz matching, DSA Setting = 12dB, 12.5MHz offset from tone
Figure 4-329 RX Noise Spectral Density vs Input Amplitude and Temperature at 1.75GHz
AFE7950-SP RX IMD3 vs DSA Setting and Temperature at 1.75GHz
With 1.8GHz matching, each tone –7dBFS, tone spacing = 20MHz
Figure 4-331 RX IMD3 vs DSA Setting and Temperature at 1.75GHz
AFE7950-SP RX IMD3 vs Input Level and Temperature at 1.75GHz
With 1.8GHz matching, tone spacing = 20MHz, DSA = 12dB
Figure 4-333 RX IMD3 vs Input Level and Temperature at 1.75GHz
AFE7950-SP RX HD2 vs DSA Setting and Temperature at 1.9 GHz
With 1.8GHz matching, fin = 1900MHz, measured after HD2 trim, DDC bypass mode (TI only mode for characterization)
Figure 4-335 RX HD2 vs DSA Setting and Temperature at 1.9 GHz
AFE7950-SP RX HD2 vs Input Amplitude and Temperature at 1.9GHz
With 1.8GHz matching, fin = 1900MHz, measured after HD2 trim, DDC bypass mode (TI only mode for characterization)
Figure 4-337 RX HD2 vs Input Amplitude and Temperature at 1.9GHz
AFE7950-SP RX HD3 vs DSA Setting and Temperature at 1.9GHz
With 1.8GHz matching, fin = 1900MHz, DDC bypass mode (TI only mode for characterization)
Figure 4-339 RX HD3 vs DSA Setting and Temperature at 1.9GHz
AFE7950-SP RX HD3 vs Input Level and Temperature at 1.9GHz
With 1.8GHz matching, fin = 1900MHz, DDC bypass mode (TI only mode for characterization)
Figure 4-341 RX HD3 vs Input Level and Temperature at 1.9GHz
AFE7950-SP RX Non-HD2/3 vs DSA Setting at 1.75GHz
With 1.8GHz matching
Figure 4-343 RX Non-HD2/3 vs DSA Setting at 1.75GHz
AFE7950-SP RX Noise Spectral Density vs Supply and Channel at 1.75GHz
With 1.8GHz matching, 12.5MHz offset, all supplies at MIN, TYP, or MAX recommended operating voltages
Figure 4-345 RX Noise Spectral Density vs Supply and Channel at 1.75GHz
