4.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise noted)

CSD17318Q2 Transient Thermal Impedance
Figure 4-1 Transient Thermal Impedance

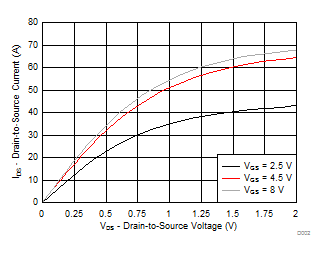

CSD17318Q2 Saturation Characteristics
Figure 4-2 Saturation Characteristics

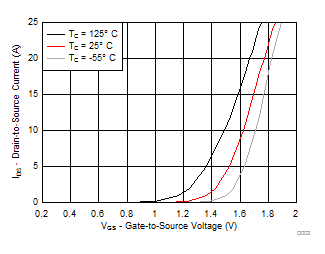

CSD17318Q2 Transfer Characteristics
VDS = 5V
Figure 4-3 Transfer Characteristics
CSD17318Q2 Gate Charge
ID = 8AVDS = 15V
Figure 4-4 Gate Charge

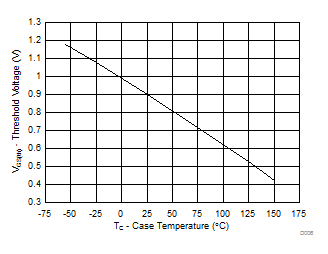

CSD17318Q2 Threshold Voltage vs Temperature
ID = 250µA
Figure 4-6 Threshold Voltage vs Temperature
CSD17318Q2 Normalized On-State Resistance vs Temperature
ID = 8A
Figure 4-8 Normalized On-State Resistance vs Temperature

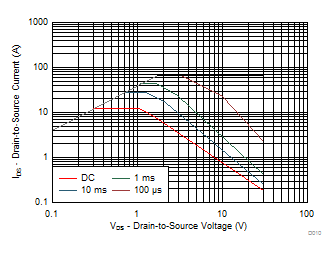

CSD17318Q2 Maximum Safe Operating Area
Single pulse, max RθJC = 7.9°C/W
Figure 4-10 Maximum Safe Operating Area

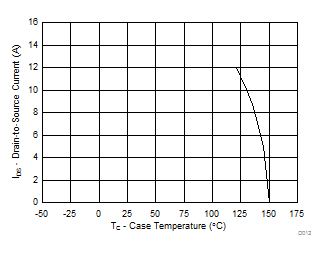

CSD17318Q2 Maximum Drain Current vs Temperature
Figure 4-12 Maximum Drain Current vs Temperature
CSD17318Q2 Capacitance
Figure 4-5 Capacitance
CSD17318Q2 On-State Resistance vs Gate-to-Source Voltage
ID = 8A
Figure 4-7 On-State Resistance vs Gate-to-Source Voltage
CSD17318Q2 Typical Diode Forward Voltage
Figure 4-9 Typical Diode Forward Voltage
CSD17318Q2 Single Pulse Unclamped Inductive Switching
Figure 4-11 Single Pulse Unclamped Inductive Switching
