8.4.5.5 Closed Loop Accelerate

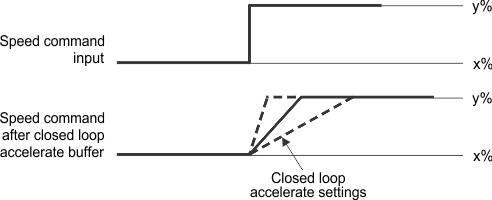

To prevent sudden changes in the torque applied to the motor which could result in acoustic noise, the DRV10975 provides the option of limiting the maximum rate at which the speed command changes. ClsLpAccel[2:0] can be programmed to set the maximum rate at which the speed command changes (shown in Figure 25).

DRV10975 DRV10975Z closed_loop_accel_LVSCP2.gifFigure 25. Closed-Loop Accelerate
