8.5.1.1.1 SPI Format

The SDI input data word is 16 bits long and consists of the following format:

  • 1 read or write bit, W (bit B15)
  • 7 address bits, A (bits B14 through B8)
  • 8 data bits, D (bits B7 through B0)

The SDO output data word is 16 bits long and the first 5 bits are don't care bits. The data word is the content of the register being accessed.

For a write command (W0 = 0), the response word on the SDO pin is the data currently in the register being written to.

For a read command (W0 = 1), the response word is the data currently in the register being read.

Table 12. SDI Input Data Word Format

R/W ADDRESS DATA
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
W0 0 0 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0

Table 13. SDO Output Data Word Format

R/W DON'T CARE DATA
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
W0 X X X X X X X D7 D6 D5 D4 D3 D2 D1 D0

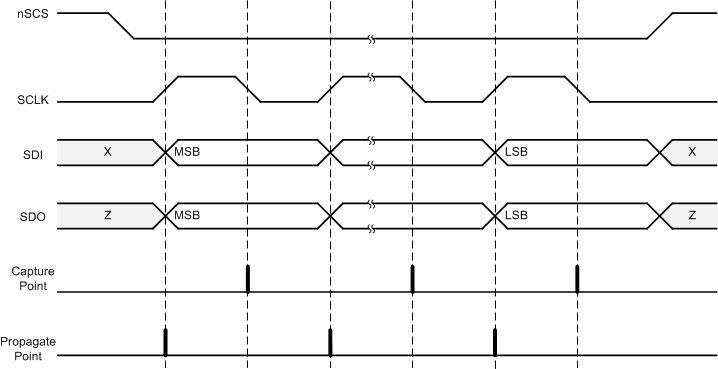

DRV8340-Q1 td_programming_slvsdj3.gifFigure 34. SPI Slave Timing Diagram
