11.2 Layout ExamplesESD224 HDMI2_Layout.gif

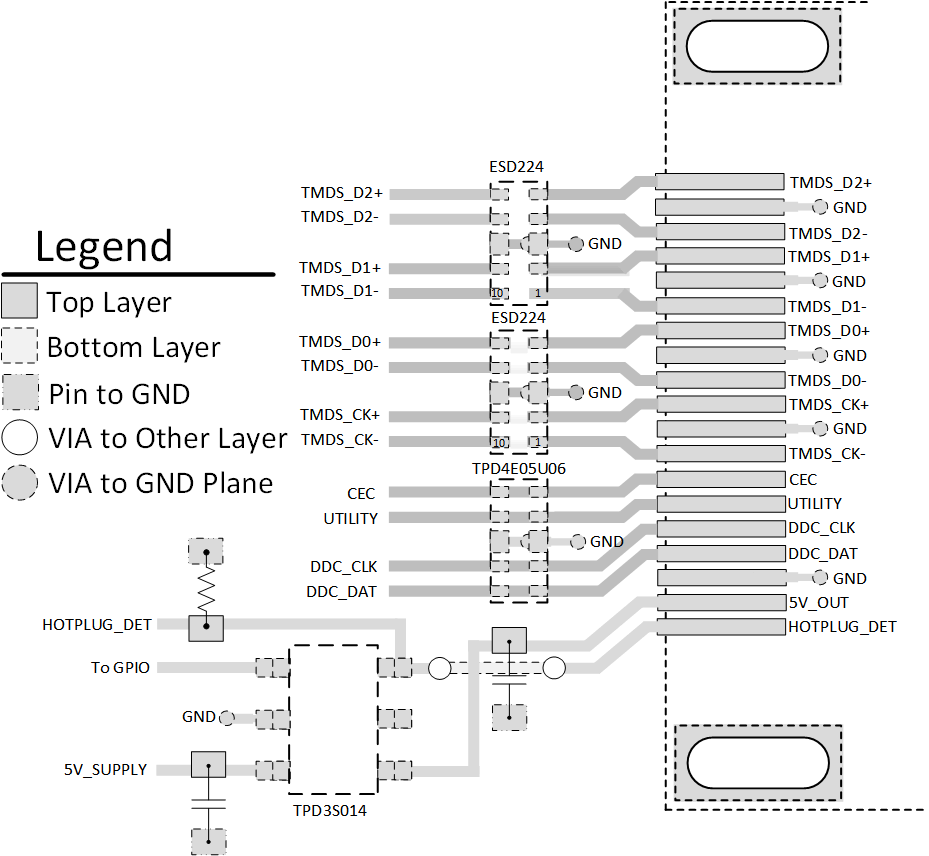

Figure 15. HDMI Type-A Transmitter Port Layout

NOTE

There is no Through-Routing for the ESD224 Pins Connecting to the High Speed Data Lines.
