Ground Referenced Output

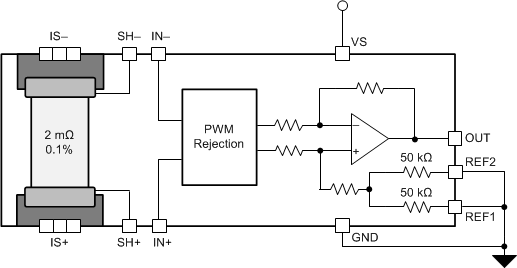

When using the INA253-Q1 in unidirectional mode with a ground-referenced output, both reference inputs are connected to ground. Figure 7-6 shows how this configuration takes the output to ground when there is 0-A flowing across the internal shunt.

GUID-E5AFBF84-5E3F-45A5-8110-60B705C18721-low.gifFigure 7-6 Ground-Referenced Output
