6.6 Typical Characteristics

at TA = 25°C, IDS = 2 mA, common-source configuration, and VDS = 5 V (unless otherwise noted)


Figure 6-1 Drain-to-Source Current vs Gate-to-Source Voltage

Figure 6-3 Drain-to-Source Current vs Drain-to-Source Voltage

Figure 6-5 Gate Current vs Drain-to-Source Voltage
VDS = 5 V
Figure 6-7 Gate-to-Source Voltage vs Temperature

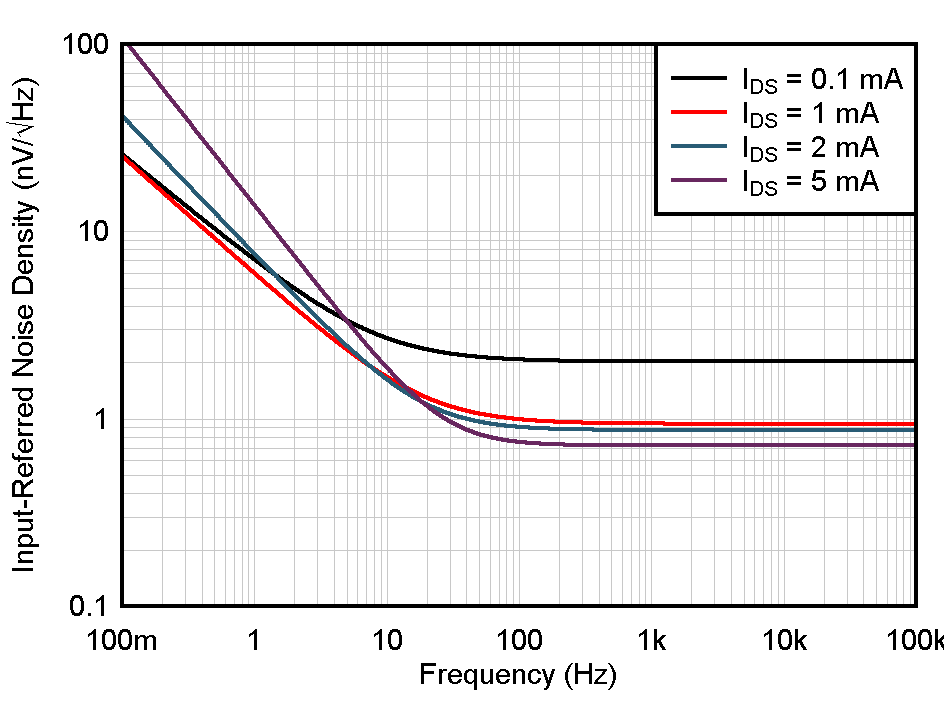

Figure 6-9 Input-Referred Noise Density vs Frequency
f = 1 kHz
Figure 6-11 Input-Referred Noise Spectral Density vs Drain‑to‑Source Current
GUID-20210521-CA0I-HKKV-BD57-GXTN2HHS3TWD-low.svg

Figure 6-2 Drain-to-Source Current vs Drain-to-Source Voltage

Figure 6-4 Common Source Transconductance vs Drain-to-Source Current

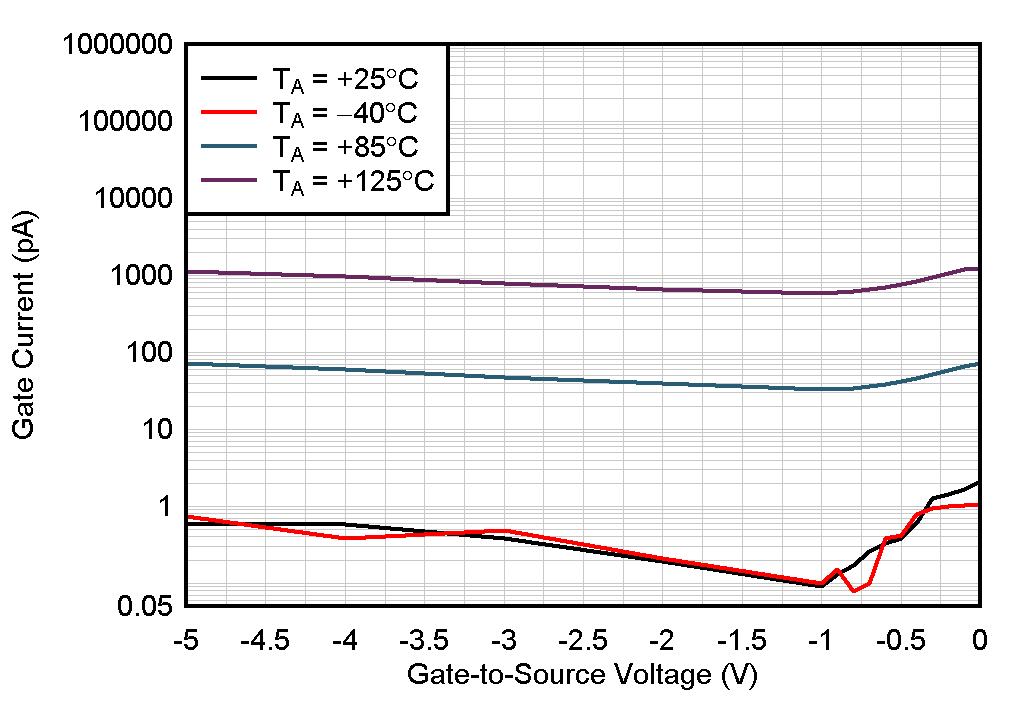

Figure 6-6 Gate Current vs Gate-to-Source Voltage

Figure 6-8 IDSS vs Drain-to-Source Voltage
f = 1 kHz
Figure 6-10 Noise Density Contributors vs Input Gate Resistance

Figure 6-12 Input, Output, and Reverse Transfer Capacitance vs Drain-to-Source Voltage
