6 Pin Configuration and Functions

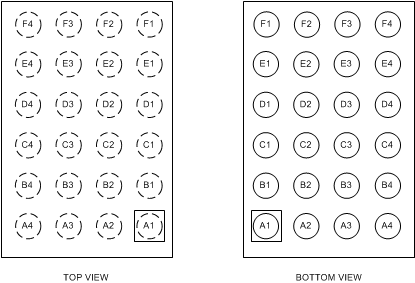

DSBGA
24 BUMPS

Pin Functions

PIN DESCRIPTION
NUMBER NAME
A1 CP_VNEG Negative LCD bias supply voltage. Can be left unconnected if charge pump is disabled.
A2 C2 Inverting charge pump flying capacitor negative pin. Can be left unconnected if charge pump is disabled.
A3 PGND Power ground connection for boost converters and charge pump.
A4 C1 Inverting charge pump flying capacitor positive pin. Can be left unconnected if charge pump is disabled.
B1 LDO_OREF LDO_OREF output voltage. Can be left unconnected if LDO is disabled.
B2 PWM PWM input for brightness control. Must be connected to GND if not used.
B3 SDA Serial data connection for I2C-compatible interface. Must be pulled high to VDDIO if not used.
B4 BST_OUT LCD bias boost output voltage. Internally connected to the input of CP_VNEG, LDO_VPOS, and LDO_OREF.
C1 LDO_VPOS Positive LCD bias supply rail. Can be left unconnected if LDO is disabled.
C2 LDO_CONT Positive supply voltage for display panel controller. Can be left unconnected if disabled.
C3 SCL Serial clock connection for I2C-compatible interface. Must be pulled high to VDDIO if not used.
C4 BST_SW LCD bias boost switch pin.
D1 AGND Analog ground connection for control circuitry.
D2 OTP_SEL Default setting selection. Must be tied to GND or to VDDIO.
D3 FLAG Programmable interrupt flag. Open drain output. Can be left unconnected if not used.
D4 GND_BST_SW LCD bias boost and inverting charge pump ground connection.
E1 LED2 Input pin to internal LED current sink 2. Can be left unconnected if not used.
E2 LCD_EN LCD enable input. Logic high turns on LCD bias voltages and backlight per sequencing settings.
E3 nRST Active low reset input.
E4 VIN Input voltage connection. Connect to 2.7-V to 5-V supply voltage.
F1 LED1 Input pin to internal LED current sink 1. Can be left unconnected if not used.
F2 VOUT Backlight boost output voltage. Output capacitor is connected to this pin.
F3 SW Backlight boost switch pin.
F4 GND_SW Backlight boost ground connection.
