7.7 Typical Characteristics

VVIN = 48 V, RRT = 25 kΩ, SYNCIN tied to VCC, EN/UVLO tied to VIN (unless otherwise noted).

VOUT = 5 V FSW = 300 kHz
See Figure 9-5 RRT = 33.2 kΩ
Figure 7-1 Efficiency vs Load, CCM
GUID-D1C00024-083A-4220-B12A-1B9AFBCEEE38-low.gifFigure 7-3 FB Voltage vs Junction Temperature
VSW = 0 V VEN/UVLO = 0 V
Figure 7-5 IQ-SHD vs Input Voltage
VSW = 0 V VEN/UVLO = VVIN VSS/TRK = 0 V
Figure 7-7 IQ-OPERATING (Nonswitching) vs Input Voltage
VSW = 0 V VVCC = VBST = VILIM VFB = 0 V
Figure 7-9 VIN Quiescent Current with External VCC Applied
VSW = 0 V
Figure 7-11 Deadtime vs Junction Temperature
GUID-45F3FA1C-2F43-434A-AFC6-53A226AB11DC-low.gifFigure 7-13 BST UVLO Thresholds vs Junction Temperature
GUID-DAC0D346-B8BA-40E9-9778-5E729AEEB586-low.gifFigure 7-15 PGOOD OVP Thresholds vs Junction Temperature

Figure 7-17 EN Standby Thresholds vs Junction Temperature
RRT = 25 kΩ

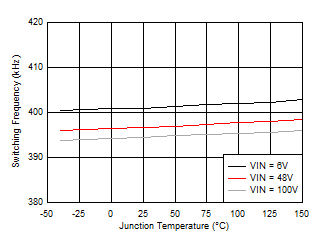

Figure 7-19 Oscillator Frequency vs Junction Temperature
GUID-85261FEE-0BB2-492E-B2EE-4D4809545C8B-low.gifFigure 7-21 Gate Driver Peak Current vs VCC Voltage

Figure 7-23 LO Driver Resistance vs VCC Voltage
VIN = 5.5 V
Figure 7-25 VCC vs ICC Characteristic
GUID-DB5D1971-B3CF-4D6D-ABF6-B1F97EB1C352-low.gifFigure 7-27 BST Diode Forward Voltage vs Current
VOUT = 12 V FSW = 400 kHz
See Figure 9-16 RRT = 24.9 kΩ
Figure 7-2 Efficiency vs Load, CCM
GUID-693E223B-28E0-4DCE-93BD-FD5FFC39C0B2-low.gifFigure 7-4 tON(min) and tOFF(min) vs Junction Temperature
VSW = 0 V VEN/UVLO = 1 V

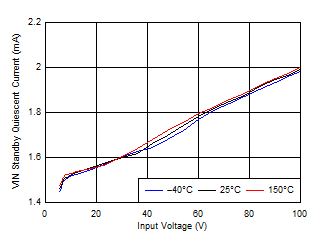

Figure 7-6 IQ-STANDBY vs Input Voltage
VSW = 0 V HO, LO Open

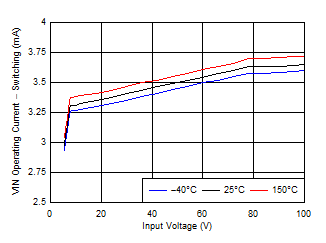

Figure 7-8 IQ-OPERATING (Switching) vs Input Voltage
GUID-7528AA57-6D29-4ED8-B498-12A4AAB76FAA-low.gifFigure 7-10 ILIM Current Source vs Junction Temperature
GUID-F158EAC2-667E-4283-A172-8A25DC5220AE-low.gifFigure 7-12 VCC UVLO Thresholds vs Junction Temperature
GUID-1337A5FC-267E-42CF-8C6D-024D62560EF1-low.gifFigure 7-14 PGOOD UVP Thresholds vs Junction Temperature
GUID-967691AA-A602-4EE4-8E85-47EF800EE44D-low.gifFigure 7-16 EN/UVLO Threshold vs Junction Temperature
VSW = 0 V
Figure 7-18 Oscillator Frequency vs RT Resistance
RRT = 10 kΩ
Figure 7-20 Oscillator Frequency vs Junction Temperature
GUID-071DF25C-6023-4F8C-9FC3-6DC647D8A889-low.gifFigure 7-22 HO Driver Resistance vs VCC Voltage
VSS/TRK = 0 V
Figure 7-24 VCC Voltage vs Input Voltage
VIN = 12 V
Figure 7-26 VCC vs ICC Characteristic
GUID-F611C726-94C8-471E-AAD7-30E030FDB4BF-low.gifFigure 7-28 SS/TRK Current Source vs Junction Temperature
