4 Pin Configuration and Functions

GUID-CD30933B-FDA3-4D18-BF91-4064782A917F-low.gif Figure 4-1 LMC662 D Package, 8-Pin SOIC, and P package, 8-Pin PDIP (Top View)
Table 4-1 LMC662 Pin Functions
PIN TYPE DESCRIPTION
NAME NO.
+IN A 3 Input Noninverting input, channel A
–IN A 2 Input Inverting input, channel A
+IN B 5 Input Noninverting input, channel B
–IN B 6 Input Inverting input, channel B
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
V+ 8 Power Positive (highest) power supply
V– 4 Power Negative (lowest) power supply

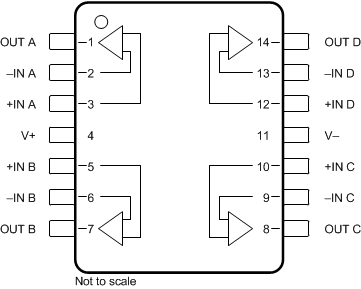

GUID-E4345B66-106B-4662-8A41-57CE2F2BD88F-low.gif Figure 4-2 LMC660 D Package, 14-Pin SOIC, and P package, 14-Pin PDIP (Top View)
Table 4-2 LMC660 Pin Functions
PIN TYPE DESCRIPTION
NAME NO.
+IN A 3 Input Noninverting input, channel A
+IN B 5 Input Noninverting input, channel B
+IN C 10 Input Noninverting input, channel C
+IN D 12 Input Noninverting input, channel D
–IN A 2 Input Inverting input, channel A
–IN B 6 Input Inverting input, channel B
–IN C 9 Input Inverting input, channel C
–IN D 13 Input Inverting input, channel D
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
OUT C 8 Output Output, channel C
OUT D 14 Output Output, channel D
V+ 4 — Positive (highest) power supply
V– 11 — Negative (lowest) power supply
