7.2.3 Application Curves

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 500 kHz, L = 5.6 µH, COUT = 47 µF × 2, TA = 25°C.

LMR14030 Start-up By EN
VIN = 12 VVOUT = 5 VIOUT = 2 A
Figure 7-2 Start-up By EN
LMR14030 Sleep-mode
VIN = 12 VVOUT = 5 VIOUT = 0 A
Figure 7-4 Sleep-mode
LMR14030 CCM Mode
VIN = 12 VVOUT = 5 VIOUT = 1.5 A
Figure 7-6 CCM Mode
LMR14030 Output Short
VIN = 12 VVOUT = 5 V
Figure 7-8 Output Short

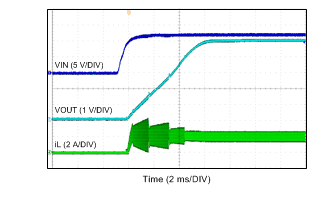

LMR14030 Start-up By VIN
VIN = 12 VVOUT = 5 VIOUT = 2 A
Figure 7-3 Start-up By VIN
LMR14030 DCM Mode
VIN = 12 VVOUT = 5 VIOUT = 100 mA
Figure 7-5 DCM Mode
LMR14030 Load Transient
IOUT: 20% → 80% of 3.5 ASlew rate = 100 mA/μs
Figure 7-7 Load Transient

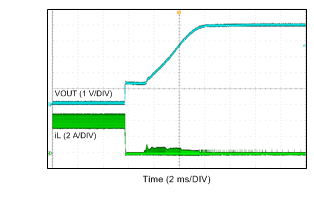

LMR14030 Output Short Recovery
VIN = 12 VVOUT = 5 V
Figure 7-9 Output Short Recovery
