5.7 Typical Characteristics

LP2950 LP2951 Quiescent Current vs Load Current (Legacy Chip)Figure 5-1 Quiescent Current vs Load Current (Legacy Chip)
LP2950 LP2951 Input Current vs Input Voltage (RL = OPEN) (Legacy Chip)Figure 5-3 Input Current vs Input Voltage (RL = OPEN) (Legacy Chip)
LP2950 LP2951 Input Current vs Input Voltage (RL = 50kΩ)Figure 5-5 Input Current vs Input Voltage (RL = 50kΩ)
LP2950 LP2951 Input Current vs Input Voltage (RL = 50Ω)(Legacy Chip)Figure 5-7 Input Current vs Input Voltage (RL = 50Ω)(Legacy Chip)
LP2950 LP2951 Output Voltage vs Temperature (Legacy Chip)Figure 5-9 Output Voltage vs Temperature (Legacy Chip)
LP2950 LP2951 Quiescent Current vs Input Voltage (IL = 0 ) (Legacy Chip)Figure 5-11 Quiescent Current vs Input Voltage (IL = 0 ) (Legacy Chip)
LP2950 LP2951 Quiescent Current vs Input Voltage (IL = 1mA)(Legacy Chip)Figure 5-13 Quiescent Current vs Input Voltage (IL = 1mA)(Legacy Chip)
LP2950 LP2951 Quiescent Current vs Input Voltage (IL = 100mA)(Legacy Chip)Figure 5-15 Quiescent Current vs Input Voltage (IL = 100mA)(Legacy Chip)
LP2950 LP2951 Quiescent Current vs Temperature (IL = 100mA)(Legacy Chip)Figure 5-17 Quiescent Current vs Temperature (IL = 100mA)(Legacy Chip)
LP2950 LP2951 Quiescent Current vs Temperature (IL = 100μA)(Legacy Chip)Figure 5-19 Quiescent Current vs Temperature (IL = 100μA)(Legacy Chip)
LP2950 LP2951 Short-Circuit Current vs Temperature (Legacy Chip)Figure 5-21 Short-Circuit Current vs Temperature (Legacy Chip)
LP2950 LP2951 Dropout Voltage vs Temperature (Legacy Chip)Figure 5-23 Dropout Voltage vs Temperature (Legacy Chip)

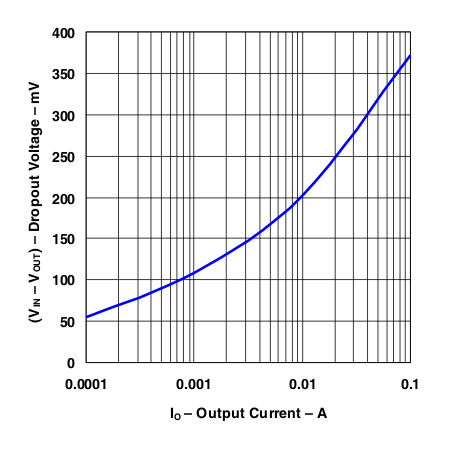

LP2950 LP2951 Dropout Voltage vs Dropout Current (Legacy Chip)Figure 5-25 Dropout Voltage vs Dropout Current (Legacy Chip)
LP2950 LP2951 Minimum Operating Voltage vs Temperature (Legacy Chip)Figure 5-27 Minimum Operating Voltage vs Temperature (Legacy Chip)
LP2950 LP2951 LP2951 FEEDBACK Bias Current vs Temperature (Legacy Chip)Figure 5-29 LP2951 FEEDBACK Bias Current vs Temperature (Legacy Chip)
LP2950 LP2951 LP2951 ERROR Comparator Output vs Input Voltage (Legacy Chip)Figure 5-31 LP2951 ERROR Comparator Output vs Input Voltage (Legacy Chip)
LP2950 LP2951 LP2951 ERROR Comparator Sink Current vs Output Low Voltage (Legacy Chip)Figure 5-33 LP2951 ERROR Comparator Sink Current vs Output Low Voltage (Legacy Chip)
LP2950 LP2951 Line Transient Response vs Time (Legacy Chip)Figure 5-35 Line Transient Response vs Time (Legacy Chip)
LP2950 LP2951 Load Transient Response vs Time (VOUT = 5V, CL = 10µF) (Legacy Chip)Figure 5-37 Load Transient Response vs Time (VOUT = 5V, CL = 10µF) (Legacy Chip)
LP2950 LP2951 Load Transient Response vs Time (New Chip)
VIN= 6V, VOUT= 5V,IOUT= 0 to 100mA, COUT= 1μF
Figure 5-39 Load Transient Response vs Time (New Chip)
LP2950 LP2951 Enable Transient Response vs Time (New Chip)
VIN= 6V, VOUT= 5V, COUT= 1μF, IOUT= 1mA
Figure 5-41 Enable Transient Response vs Time (New Chip)
LP2950 LP2951 Enable Transient Response vs Time (New Chip)
VIN= 6V, VOUT= 5V, COUT= 10μF, IOUT= 1mA
Figure 5-43 Enable Transient Response vs Time (New Chip)
LP2950 LP2951 Ripple Rejection vs Frequency (Legacy Chip)Figure 5-45 Ripple Rejection vs Frequency (Legacy Chip)
LP2950 LP2951 Ripple Rejection vs Frequency (Legacy Chip)Figure 5-47 Ripple Rejection vs Frequency (Legacy Chip)
LP2950 LP2951 Ripple Rejection vs Frequency (New Chip)
VIN= 6V, VOUT= 5V, IOUT= 100mA
Figure 5-49 Ripple Rejection vs Frequency (New Chip)
LP2950 LP2951 Output Noise vs Frequency (Legacy Chip)Figure 5-51 Output Noise vs Frequency (Legacy Chip)
LP2950 LP2951 Output Noise vs Frequency (New Chip)
VIN= 6V, VOUT= 5V, COUT= 1μF
Figure 5-53 Output Noise vs Frequency (New Chip)
LP2950 LP2951 Shutdown Threshold Voltage (Off to On) vs Temperature (Legacy Chip)Figure 5-55 Shutdown Threshold Voltage (Off to On) vs Temperature (Legacy Chip)
LP2950 LP2951 Shutdown Threshold Voltage (On to Off) vs Temperature (Legacy Chip)Figure 5-57 Shutdown Threshold Voltage (On to Off) vs Temperature (Legacy Chip)
LP2950 LP2951 Line Regulation vs Input Voltage (Legacy Chip)Figure 5-59 Line Regulation vs Input Voltage (Legacy Chip)
LP2950 LP2951 Load Regulation vs Load Current (New Chip)
VIN = 6V, VOUT = 5V
Figure 5-61 Load Regulation vs Load Current (New Chip)
LP2950 LP2951 Quiescent Current vs Load Current (New Chip)
VIN = 6V, VOUT = 5V
Figure 5-2 Quiescent Current vs Load Current (New Chip)
LP2950 LP2951 Input Current vs Input Voltage (RL = OPEN) (New Chip)
VOUT = 5V, IOUT= 0mA
Figure 5-4 Input Current vs Input Voltage (RL = OPEN) (New Chip)
LP2950 LP2951 Input Current vs Input Voltage (RL = 50kΩ) (New Chip)
VOUT = 5V, IOUT=100μA
Figure 5-6 Input Current vs Input Voltage (RL = 50kΩ) (New Chip)
LP2950 LP2951 Input Current vs Input Voltage (RL = 50Ω) (New Chip)
VOUT = 5V, IOUT=100mA
Figure 5-8 Input Current vs Input Voltage (RL = 50Ω) (New Chip)
LP2950 LP2951 Output Voltage vs Temperature (New Chip)
VIN = 6V, VOUT = 5V
Figure 5-10 Output Voltage vs Temperature (New Chip)
LP2950 LP2951 Quiescent Current vs Input Voltage (IL = 0 )(New Chip)
VOUT = 5V
Figure 5-12 Quiescent Current vs Input Voltage (IL = 0 )(New Chip)
LP2950 LP2951 Quiescent Current vs Input Voltage (IL = 1mA)(New Chip)
VOUT = 5V
Figure 5-14 Quiescent Current vs Input Voltage (IL = 1mA)(New Chip)
LP2950 LP2951 Quiescent Current vs Input Voltage (IL = 100mA)(New Chip)
VOUT = 5V
Figure 5-16 Quiescent Current vs Input Voltage (IL = 100mA)(New Chip)
LP2950 LP2951 Quiescent Current vs Temperature (IL = 100mA)(New Chip)
VIN = 6V, VOUT = 5V
Figure 5-18 Quiescent Current vs Temperature (IL = 100mA)(New Chip)
LP2950 LP2951 Quiescent Current vs Temperature (IL = 100μA)(New Chip)
VIN = 6V, VOUT = 5V
Figure 5-20 Quiescent Current vs Temperature (IL = 100μA)(New Chip)
LP2950 LP2951 Short-Circuit Current vs Temperature (New Chip)
VIN = 6V, VOUT = 0V
Figure 5-22 Short-Circuit Current vs Temperature (New Chip)
LP2950 LP2951 Dropout Voltage vs Temperature (New Chip)
VIN = 4.9V
Figure 5-24 Dropout Voltage vs Temperature (New Chip)
LP2950 LP2951 Dropout Voltage vs Dropout Current (New Chip)
VIN = 4.9V
Figure 5-26 Dropout Voltage vs Dropout Current (New Chip)
LP2950 LP2951 Minimum Operating Voltage vs Temperature (New Chip)
Figure 5-28 Minimum Operating Voltage vs Temperature (New Chip)
LP2950 LP2951 FEEDBACK Bias Current vs Temperature (New Chip)
Figure 5-30 FEEDBACK Bias Current vs Temperature (New Chip)
LP2950 LP2951 ERROR Comparator Output vs Input Voltage (New Chip)
Figure 5-32 ERROR Comparator Output vs Input Voltage (New Chip)
LP2950 LP2951 ERROR Comparator Sink Current vs Output Low Voltage (New Chip)
Figure 5-34 ERROR Comparator Sink Current vs Output Low Voltage (New Chip)
LP2950 LP2951 Line Transient Response vs Time (New Chip)
VIN= 6V to 8V, VOUT= 5V,COUT= 1μF, IOUT= 100μA
Figure 5-36 Line Transient Response vs Time (New Chip)
LP2950 LP2951 Load Transient Response vs Time (New Chip)
VIN= 6V, VOUT= 5V,IOUT= 0 to 100mA, COUT= 10μF
Figure 5-38 Load Transient Response vs Time (New Chip)
LP2950 LP2951 Enable Transient Response vs Time (IL = 1mA, CL = 1µF) (Legacy Chip)Figure 5-40 Enable Transient Response vs Time (IL = 1mA, CL = 1µF) (Legacy Chip)
LP2950 LP2951 Enable Transient Response vs Time (IL = 1mA, CL = 10µF)Figure 5-42 Enable Transient Response vs Time (IL = 1mA, CL = 10µF)
LP2950 LP2951 Output Impedance vs Frequency (Legacy Chip)Figure 5-44 Output Impedance vs Frequency (Legacy Chip)
LP2950 LP2951 Ripple Rejection vs Frequency (Legacy Chip)Figure 5-46 Ripple Rejection vs Frequency (Legacy Chip)
LP2950 LP2951 Ripple Rejection vs Frequency (New Chip)
VIN= 6V, VOUT= 5V, COUT= 1μF
Figure 5-48 Ripple Rejection vs Frequency (New Chip)
LP2950 LP2951 Ripple Rejection vs Frequency (New Chip)
VIN= 6V, VOUT= 5V, IOUT= 1mA
Figure 5-50 Ripple Rejection vs Frequency (New Chip)
LP2950 LP2951 Output Noise vs Frequency (New Chip)
VIN= 6V, VOUT= 5V, IOUT= 100μA
Figure 5-52 Output Noise vs Frequency (New Chip)
LP2950 LP2951 LP2951 Divider Resistance vs Temperature (Legacy Chip)Figure 5-54 LP2951 Divider Resistance vs Temperature (Legacy Chip)
LP2950 LP2951 Shutdown Threshold Voltage (Off to On) vs Temperature (New Chip)
Figure 5-56 Shutdown Threshold Voltage (Off to On) vs Temperature (New Chip)
LP2950 LP2951 Shutdown Threshold Voltage (On to Off) vs Temperature (New Chip)
Figure 5-58 Shutdown Threshold Voltage (On to Off) vs Temperature (New Chip)
LP2950 LP2951 Line Regulation vs Input Voltage (New Chip)
VOUT = 5V, IOUT = 100μA
Figure 5-60 Line Regulation vs Input Voltage (New Chip)
