7.7 Switching Characteristics

At VCC = VR = 2.8 V, VG/B = 3.8V and TA = –40°C to +85°C; Typical values are at TA = 25°C (unless otherwise specified)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tr Rise time (SOUT) VCC = 3.3 V, CSOUT = 30 pF 2 10 ns
tf Fall time (SOUT) VCC = 3.3 V, CSOUT = 30 pF 2 10 ns
tpd(0) Propagation delay SCLK↑ to SOUT↑↓, full temperature, CSOUT = 30 pF 3.5 14.2 ns

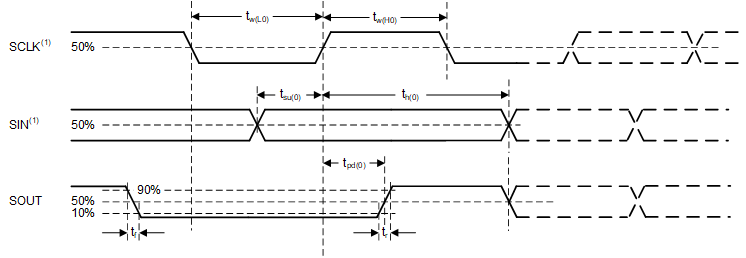

Figure 7-1 Timing and Switching Diagram
(1). Input pulse rise and fall time is 2 ns typically.
