8.5.4 Read Command

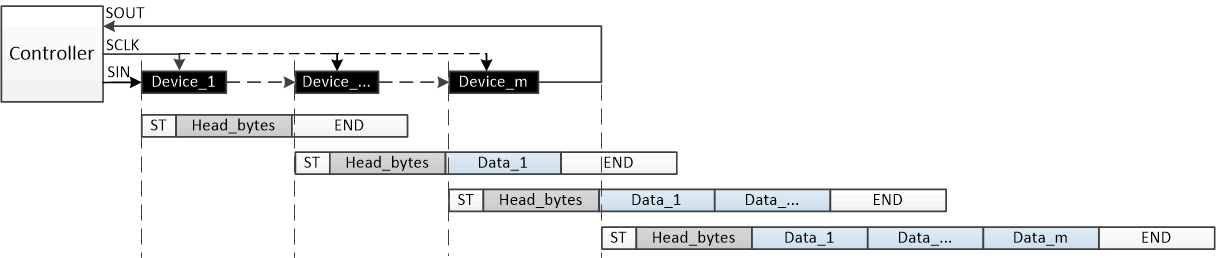

The controller sends the read command. When the first device receives this command, it inserts its 48-bit data before End_bytes, and meanwhile shifts out to the second device. When the second device receives this command, it inserts its 48-bit data before End_bytes and meanwhile shifts out to the third device. The data of all the device will be shifted out from the last device SOUT with this flow. The MSB is always transmitted first and the LSB is transmitted last.

GUID-76FF3481-1D6D-4A5B-B1AA-F0353504A09D-low.gifFigure 8-21 Data Read Command
