8.3 Recommended Operating Conditions

MIN NOM MAX UNIT
VCC Supply voltage during program execution and flash programming (AVCCx = DVCCx  = VCC)(1)(2) PMMCOREVx = 0 1.8 3.6 V
PMMCOREVx = 0, 1 2.0 3.6
PMMCOREVx = 0, 1, 2 2.2 3.6
PMMCOREVx = 0, 1, 2, 3 2.4 3.6
VSS Supply voltage (AVSSx  = DVSSx  = VSS) 0 V
TA Operating free-air temperature –40 85 °C
TJ Operating junction temperature –40 85 °C
CVCORE Recommended capacitor at VCORE(3) 470 nF
CDVCC/ CVCORE Capacitor ratio of DVCC to VCORE 10
fSYSTEM Processor frequency (maximum MCLK frequency)(4) (see Figure 8-1) PMMCOREVx = 0,
1.8 V ≤ VCC ≤ 3.6 V (default condition)		 0 8.0 MHz
PMMCOREVx = 1,
2.0 V ≤ VCC ≤ 3.6 V		 0 12.0
PMMCOREVx = 2,
2.2 V ≤ VCC ≤ 3.6 V		 0 20.0
PMMCOREVx = 3,
2.4 V ≤ VCC ≤ 3.6 V		 0 25.0
(1) TI recommends powering AVCC and DVCC from the same source. A maximum difference of 0.3 V between AVCC and DVCC can be tolerated during power up and operation.
(2) The minimum supply voltage is defined by the supervisor SVS levels when it is enabled. See the threshold parameters in Section 8.22 for the exact values and further details.
(3) A capacitor tolerance of ±20% or better is required.
(4) Modules may have a different maximum input clock specification. See the specification of the respective module in this data sheet.

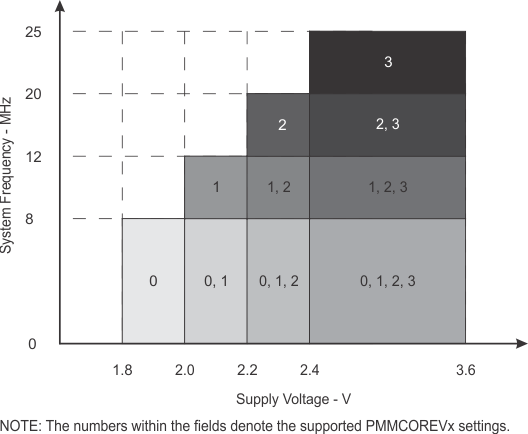

GUID-33815C34-7E00-46A1-9343-AC8DCE3F9103-low.gif Figure 8-1 Maximum System Frequency
