8.10 Off Isolation

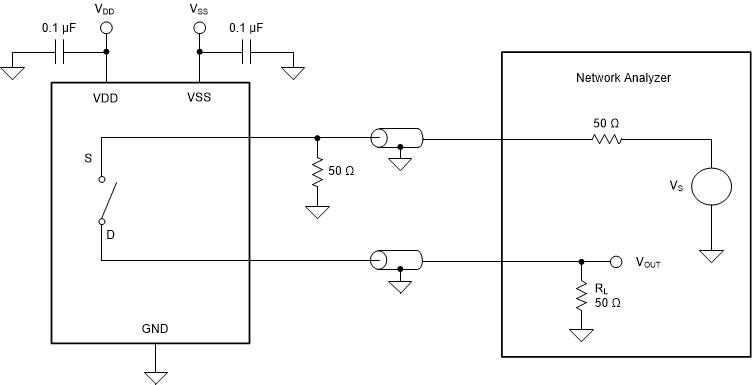

Off isolation is defined as the voltage at the drain pin (D, DA, or DB) of the MUX36xxx when a 1-VRMS signal is applied to the source pin (Sx, SxA, or SxB) of an off-channel. Figure 34 shows the setup used to measure off isolation. Use Equation 2 to compute off isolation.

MUX36S08 MUX36D04 off_isolation_sbos705.gifFigure 34. Off Isolation Measurement Setup
Equation 2. MUX36S08 MUX36D04 q_off_iso_sbas758.gif
