8.3.6.2.2.1 Sampling Rate: 16 kHz or 14.7 kHz

Figure 8-23 shows the magnitude response and Figure 8-24 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 16 kHz or 14.7 kHz. Table 8-15 lists the specifications for a decimation filter with a 16-kHz or 14.7-kHz sampling rate.

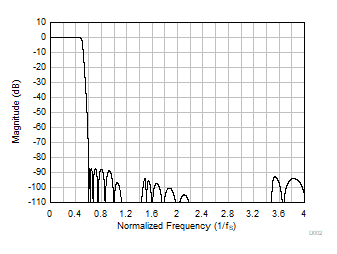

GUID-42F93EAA-A90C-48D8-96B9-3A9FAE6E6F30-low.gifFigure 8-23 Low-Latency Decimation Filter Magnitude Response
GUID-80DC2723-E233-4652-BE43-5A8FB5118300-low.gifFigure 8-24 Low-Latency Decimation Filter Pass-Band Ripple and Phase Deviation
Table 8-15 Low-Latency Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.451 × fS–0.050.05dB
Stop-band attenuationFrequency range is 0.61 × fS onwards87.3dB
Group delay or latencyFrequency range is 0 to 0.363 × fS7.61/fS
Group delay deviationFrequency range is 0 to 0.363 × fS–0.0220.0221/fS
Phase deviationFrequency range is 0 to 0.363 × fS–0.210.25Degrees
