8.3.6.2.1.7 Sampling Rate: 192 kHz or 176.4 kHz

Figure 8-21 and Figure 8-22 respectively show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 192 kHz or 176.4 kHz. Table 8-14 lists the specifications for a decimation filter with an 192-kHz or 176.4-kHz sampling rate.

GUID-2D2EE81A-011C-4EF2-9FEF-275C4A5D930A-low.gifFigure 8-21 Linear Phase Decimation Filter Magnitude Response

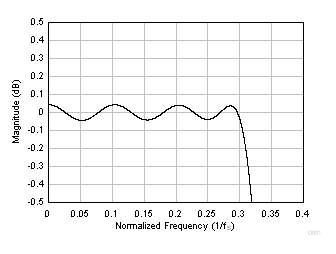

GUID-D4503561-1EAC-43DC-9197-3077750B5AB6-low.gifFigure 8-22 Linear Phase Decimation Filter Pass-Band Ripple
Table 8-14 Linear Phase Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.3 × fS–0.050.05dB
Stop-band attenuationFrequency range is 0.473 × fS to 4 × fS70.0dB
Frequency range is 4 × fS onwards111.0
Group delay or latencyFrequency range is 0 to 0.3 × fS11.91/fS
