8.3.6.2.1.3 Sampling Rate: 24 kHz or 22.05 kHz

Figure 8-13 and Figure 8-14 respectively show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 24 kHz or 22.05 kHz. Table 8-10 lists the specifications for a decimation filter with an 24-kHz or 22.05-kHz sampling rate.

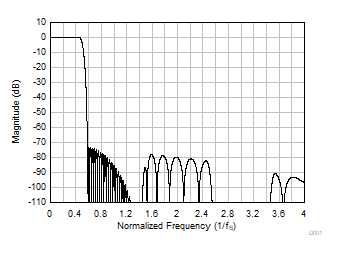

GUID-C7B63C78-D0F1-4379-979E-20351BC40926-low.gifFigure 8-13 Linear Phase Decimation Filter Magnitude Response

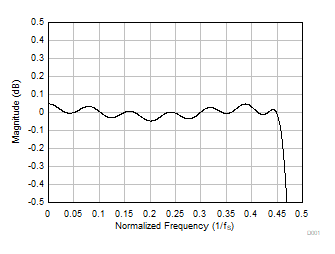

GUID-0DEED2FF-462F-4235-9B20-D08CA10AB759-low.gifFigure 8-14 Linear Phase Decimation Filter Pass-Band Ripple
Table 8-10 Linear Phase Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.454 × fS–0.050.05dB
Stop-band attenuationFrequency range is 0.58 × fS to 4 × fS73.0dB
Frequency range is 4 × fS onwards96.4
Group delay or latencyFrequency range is 0 to 0.454 × fS16.61/fS
