6.8 Crosstalk

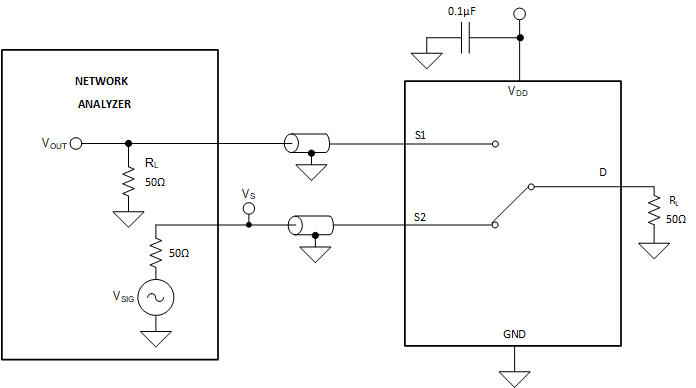

Crosstalk is defined as the ratio of the signal at the drain pin (D) of a different channel, when a signal is applied at the source pin (Sx) of an on-channel. Figure 6-8 shows the setup used to measure, and the equation used to calculate crosstalk.

SN4599-Q1 Crosstalk Measurement SetupFigure 6-8 Crosstalk Measurement Setup
Equation 2. Channel-to-Channel Crostalk = 20 × Log VOUTVS
