5 Pin Configuration and Functions

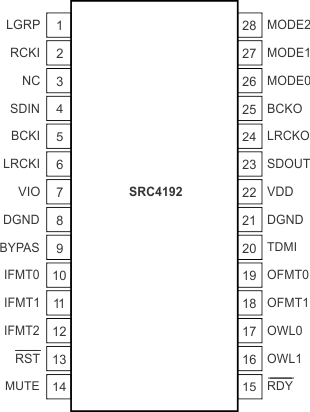

SRC4192 DB Package
28-Pin SSOP
Top View
SRC4192 SRC4193 src4192_po.gif
SRC4193 DB Package
28-Pin SSOP
Top View
SRC4192 SRC4193 src4193_po.gif

Pin Functions

PIN I/O DESCRIPTION
NAME SRC4192 SRC4193
BCKI 5 5 I Input port bit clock I/O
BCKO 25 25 O Output port bit clock I/O
BYPAS 9 9 I ASRC bypass control input (Active High)
CCLK — 27 I SPI port data clock input
CDATA — 28 I SPI port serial data input
CS — 26 I SPI port chip select input (Active Low)
DGND 8, 21 8, 21 – Digital ground
IFMT0 10 — I Input port data format control input
IFMT1 11 — I Input port data format control input
IFMT2 12 — I Input port data format control input
LGRP 1 — I Low group delay control input (active high)
LRCKI 6 6 I Input port left/right word clock I/O
LRCKO 24 24 O Output port left/right word clock I/O
MODE0 26 — I Serial port mode control input
MODE1 27 — I Serial port mode control input
MODE2 28 — I Serial port mode control input
MUTE 14 14 I Output mute control input (active high)
NC 3 2,3,10,11,12,17,18,19 – No connection
OFMT0 19 — I Output port data format control input
OFMT1 18 — I Output port data format control input
OWL0 17 — I Output port data word length control input
OWL1 16 — I Output port data word length control input
RATIO — 16 O

Input-to-output ratio flag output

Low output denotes output rate lower than input rate.

High output denotes output rate higher than input rate.
RCKI 2 1 I Reference Clock Input
RDY 15 15 O ASRC Ready Status Output (Active Low)
RST 13 13 I Reset Input (Active Low)
SDIN 4 4 I Audio Serial Data Input
SDOUT 23 23 O Audio Serial Data Output
TDMI 20 20 I TDM Data Input (Connect to DGND when not in use)
VDD 22 22 I Digital Core Supply, 3.3 V
VIO 7 7 I Digital I/O Supply, 1.65 V to VDD
