7.7.5 Line Driver

Free-air room temperature 25°C (unless otherwise noted) Measurements were made using TAS5807MDREF board and Audio Precision System 2722 with Analog Analyzer filter set to 20 kHz brickwall filter. HPVDD = 3.3 V. All measurements taken with audio frequency set to 1 kHz.

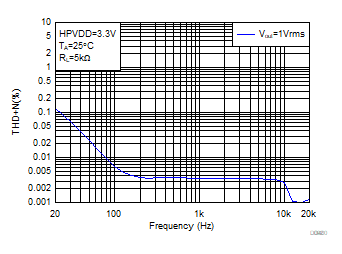

TAS5806MD D400.gif
1.
HPVDD = 3.3 V VO = 1 Vrms Load = 5 kΩ
Figure 59. THD+N vs Frequency

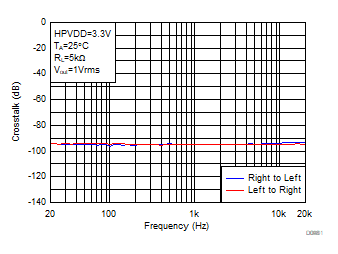

TAS5806MD D402.gif
1.
HPVDD = 3.3 V VO = 1 Vrms Load = 5 kΩ
Figure 61. Crosstalk vs Frequency
TAS5806MD D404.gif
1.
HPVDD = 3.3 V f = 1 kHz Load = 10 kΩ
Figure 63. THD+N vs Output Voltage

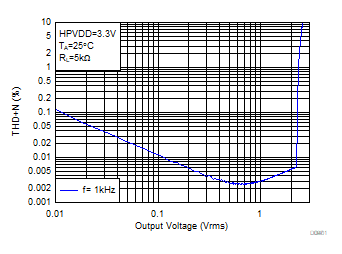

TAS5806MD D401.gif
1.
HPVDD = 3.3 V f = 1 kHz Load = 5 kΩ
Figure 60. THD+N vs Output Voltage

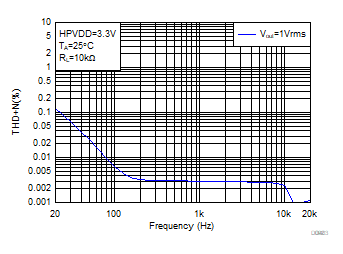

TAS5806MD D403.gif
1.
HPVDD = 3.3 V VO = 1 Vrms Load = 10 kΩ
Figure 62. THD+N vs Frequency
