9.5.3.2 Shutdown Procedures

  1. The device is in normal operation.
  2. Configure the Register 0x03h -D[1:0]=10 (Hi-Z) via the I2C control port or Pull PDN low.
  3. Wait at least 6 ms (this time depends on the LRCLK/FS rate ,digital volume and digital volume ramp down rate).
  4. Bring down power supplies.
  5. The device is now fully shutdown and powered off.

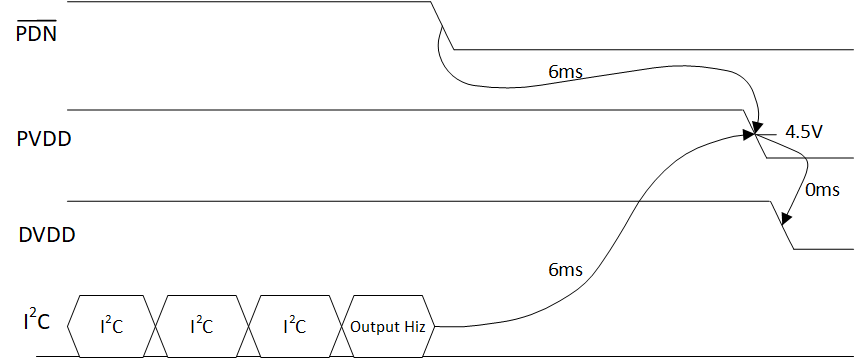

TAS5806MD TAS580x-Powerdown-sequence.gif
1. Before PVDD/DVDD power down, Class D Output driver needs to be disabled by PDN or by I2C.
2. At least 6 ms delay needed based on LRCLK (Fs) = 48 kHz. Digital volume ramp down update every sample period, decreased by 0.5 dB for each update, digital volume = 24 dB. Change the value of register 0x4C and 0x4E or change the LRCLK rate, the delay changes.
Figure 81. Power-down Sequence
