IrDA provides several specifications for a complete set of protocols for wireless infrared communications.

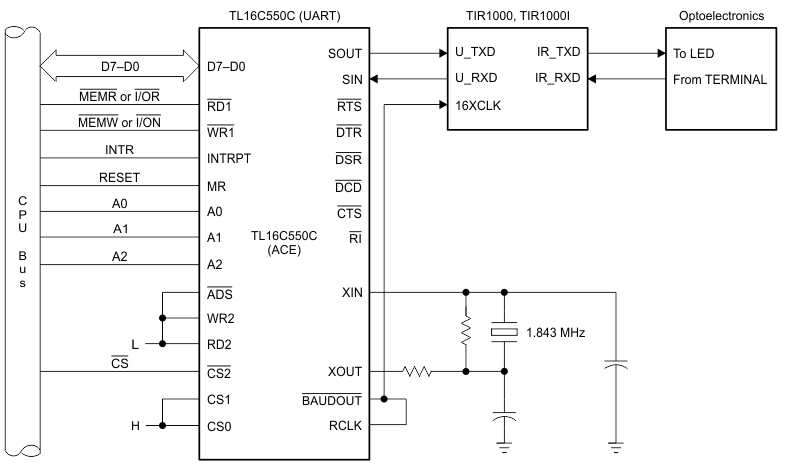

A simple application of the TIR1000 device is developing a system with an optoelectronics device and a UART device (TL16C500C). Hence, the TIR1000 device interfaces between the infrared and serial devices.
Table 1 lists the design requirements for the typical application.
DESIGN PARAMETER | EXAMPLE VALUE |
---|---|
Power supply | 3 V (low voltage) |
1.843-MHz clock source | Crystal |
Baud rate | 115.2 kbps |
TRANSMITTER | |
Peak wavelength | 850–900 nm |
Intensity in angular range | 40–500 mW/Sr |
Half angle | ±15-30° |
Pulse Duration at 115.2 kbps | 2.23 µs |
RECEIVER | |
Irradiance in angular range | 4–500 mW/cm2 |
Half angle | ±15° |
Receiver latency | 10 ms |
The asynchronous communications element (TL16C550C) contains a programmable baud generator that takes a clock input in the range between DC and 16 MHz and divides it by a divisor in the range between
1 and (216 – 1). The output frequency of the baud generator is sixteen times (16×) the baud rate. The formula for the divisor is shown in Equation 1.
For example:
Error (divisor) <1%
CRYSTAL | Rp | RX2 | C1 | C2 |
---|---|---|---|---|
1.8432 MHz | 1 MΩ | 1.5 kΩ | 10–30 pF | 40–60 pF |
