8.2.3 Application Curve

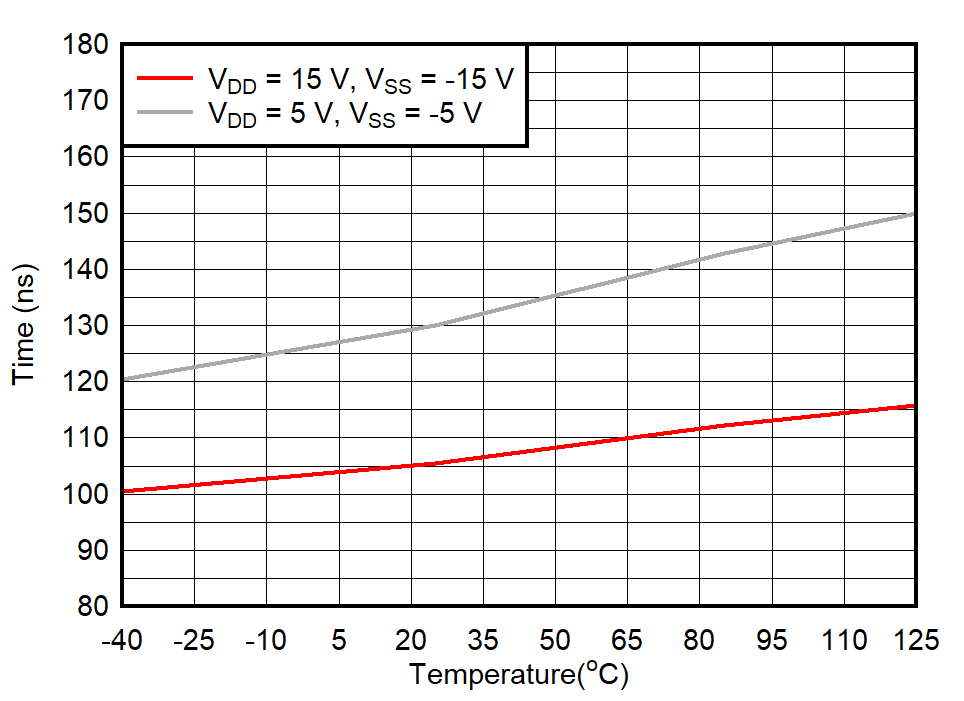

The low on-resistance and fast switching times of TMUX6234 make this device ideal for implementing high channel count switching applications. Figure 8-2 shows the plot for transition time vs temperature for the TMUX6234.

TMUX6234 Transition Time vs TemperatureFigure 8-2 Transition Time vs Temperature
