5 Pin Configuration and Functions

TMUX7208 TMUX7209 TMUX7208: PW Package16-Pin TSSOPTop ViewFigure 5-1 TMUX7208: PW Package16-Pin TSSOPTop View

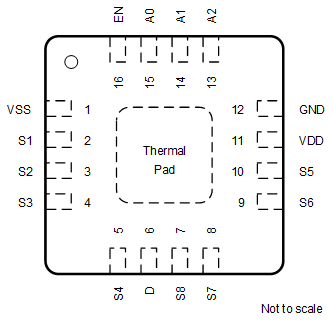

TMUX7208 TMUX7209 TMUX7208: RUM Package16-Pin WQFNTop ViewFigure 5-2 TMUX7208: RUM Package16-Pin WQFNTop View
Table 5-1 TMUX7208 Pin Functions
PIN TYPE(1) DESCRIPTION(2)
NAME PW RUM
A0 1 15 I Logic control input, has internal 4MΩ pull-down resistor. Controls the switch configuration as shown in Section 8.5.
A1 16 14 I Logic control input, has internal 4MΩ pull-down resistor. Controls the switch configuration as shown in Section 8.5.
A2 15 13 I Logic control input, has internal 4MΩ pull-down resistor. Controls the switch configuration as shown in Section 8.5.
D 8 6 I/O Drain pin. Can be an input or output.
EN 2 16 I Active high logic enable, has internal 4MΩ pull-down resistor. When this pin is low, all switches are turned off. When this pin is high, the Ax logic input determines which switch is turned on.
GND 14 12 P Ground (0V) reference.
S1 4 2 I/O Source pin 1. Can be an input or output.
S2 5 3 I/O Source pin 2. Can be an input or output.
S3 6 4 I/O Source pin 3. Can be an input or output.
S4 7 5 I/O Source pin 4. Can be an input or output.
S5 12 10 I/O Source pin 5. Can be an input or output.
S6 11 9 I/O Source pin 6. Can be an input or output.
S7 10 8 I/O Source pin 7. Can be an input or output.
S8 9 7 I/O Source pin 8. Can be an input or output.
VDD 13 11 P Positive power supply. This pin is the most positive power-supply potential. For reliable operation, connect a decoupling capacitor ranging from 0.1μF to 10μF between VDD and GND.
VSS 3 1 P Negative power supply. This pin is the most negative power-supply potential. In single-supply applications, this pin can be connected to ground. For reliable operation, connect a decoupling capacitor ranging from 0.1μF to 10μF between VSS and GND.
Thermal Pad — The thermal pad is not connected internally. It is recommended that the pad be tied to GND or VSS for best performance.
(1) I = input, O = output, I/O = input and output, P = power.
(2) Refer to Section 8.4 for what to do with unused pins.

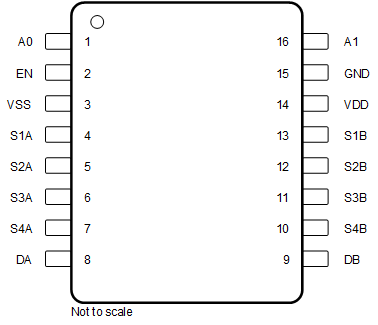

TMUX7208 TMUX7209 TMUX7209: PW Package16-Pin TSSOPTop ViewFigure 5-3 TMUX7209: PW Package16-Pin TSSOPTop View

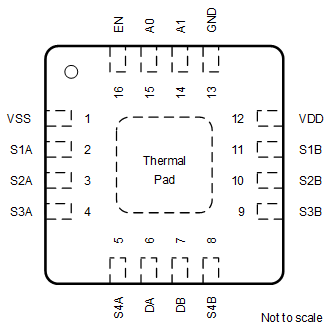

TMUX7208 TMUX7209 TMUX7209: RUM Package16-Pin WQFNTop ViewFigure 5-4 TMUX7209: RUM Package16-Pin WQFNTop View
Table 5-2 TMUX7209 Pin Functions
PIN TYPE(1) DESCRIPTION(2)
NAME PW RUM
A0 1 15 I Logic control input, has internal pull-down resistor. Controls the switch configuration as shown in Section 8.5.
A1 16 14 I Logic control input, has internal pull-down resistor. Controls the switch configuration as shown in Section 8.5.
DA 8 6 I/O Drain Terminal A. Can be an input or an output.
DB 9 7 I/O Drain Terminal B. Can be an input or an output.
EN 2 16 I Active high logic enable, has internal pull-up resistor. When this pin is low, all switches are turned off. When this pin is high, the Ax logic input determines which switch is turned on.
GND 15 13 P Ground (0V) reference.
S1A 4 2 I/O Source pin 1A. Can be an input or output.
S1B 13 11 I/O Source pin 1B. Can be an input or output.
S2A 5 3 I/O Source pin 2A. Can be an input or output.
S2B 12 10 I/O Source pin 2B. Can be an input or output.
S3A 6 4 I/O Source pin 3A. Can be an input or output.
S3B 11 9 I/O Source pin 3B. Can be an input or output.
S4A 7 5 I/O Source pin 4A. Can be an input or output.
S4B 10 8 I/O Source pin 4B. Can be an input or output.
VDD 14 12 P Positive power supply. This pin is the most positive power-supply potential. For reliable operation, connect a decoupling capacitor ranging from 0.1μF to 10μF between VDD and GND.
VSS 3 1 P Negative power supply. This pin is the most negative power-supply potential. In single-supply applications, this pin can be connected to ground. For reliable operation, connect a decoupling capacitor ranging from 0.1μF to 10μF between VSS and GND.
Thermal Pad — The thermal pad is not connected internally. It is recommended that the pad be tied to GND or VSS for best performance.
(1) I = input, O = output, I/O = input and output, P = power.
(2) Refer to Section 8.4 for what to do with unused pins.
