8 Parameter Measurement Information

TPA2005D1-Q1 graph_test_set_slos369.gif
A. CI was shorted for any common-mode input voltage measurement.
B. A 33-μH inductor was placed in series with the load resistor to emulate a small speaker for efficiency measurements.
C. The 30-kHz low-pass filter is required, even if the analyzer has a low-pass filter. An RC filter (100 Ω, 47 nF) is used on each output for the data sheet graphs.

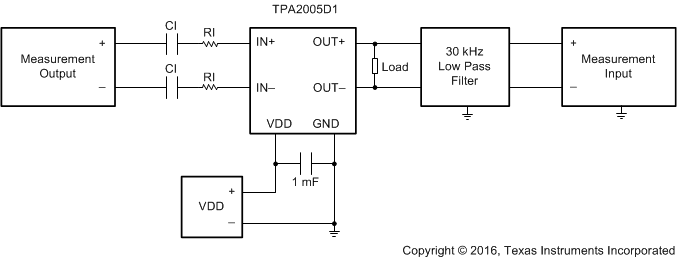

Figure 30. Test Setup For Graphs
