DATA SHEET

TPL0401x-10-Q1 128-TAPS Single-Channel Digital Potentiometer with I2C Interface

1 Features

  • Single-Channel, 128-Position Resolution
  • 10-kΩ End-to-End Resistance Options
  • Low Temperature Coefficient: 22 ppm/°C
  • I2C Serial Interface
  • 2.7-V to 5.5-V Single-Supply Operation
  • ±20% Resistance Tolerance
  • A and B Versions Have Different I2C Addresses
  • L Terminal is Internal and Connected to GND
  • Operating Temperature: –40°C to +125°C
  • Available in Industry Standard SC70 Packages
  • ESD Performance Tested per JESD 22
    • 2000-V Human-Body Model (A114-B, Class II)

2 Applications

  • Mechanical Potentiometer Replacement
  • Adjustable Power Supplies
  • Adjustable Gain Amplifiers and Offset Trimming
  • Precision Calibration of Setpoint Thresholds
  • Sensor Trimming and Calibration

3 Description

The TPL0401x-10-Q1 device is a single-channel, linear-taper digital potentiometer with 128 wiper positions. The TPL0401x-10-Q1 has the low terminal internal and connected to GND. The position of the wiper can be adjusted using an I2C interface. The TPL0401x-10-Q1 is available in a 6-pin SC70 package with a specified temperature range of –40°C to +125°C. The part has a 10-kΩ end-to-end resistance and can operate with a supply voltage range of 2.7 V to 5.5 V. This kind of product is widely used in setting the voltage reference for low power DDR3 memory.

The TPL0401x-10-Q1 has the low terminal internal and connected to GND.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TPL0401A-10-Q1
TPL0401B-10-Q1		 SC70 (6) 2.00 mm × 1.25 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

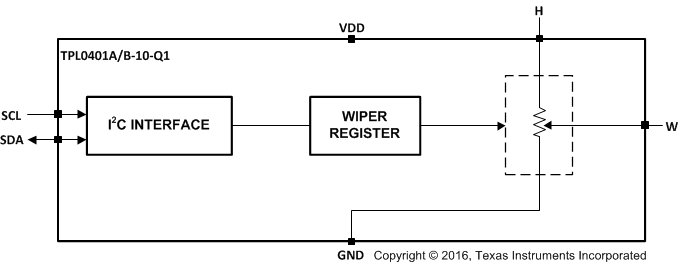

Simplified Schematic

TPL0401A-10-Q1 TPL0401B-10-Q1 funcBlockDiag_SLIS182.gif

4 Revision History

DATE REVISION NOTES
November 2016 * Initial release.

5 Device Comparison Table

PART NUMBER END-TO-END RESISTANCE I2C ADDRESS
TPL0401A-10-Q1 10 kΩ 010 1110 (0×2E)
TPL0401B-10-Q1 10 kΩ 011 1110 (0×3E)

6 Pin Configuration and Functions

DCK Package
6-Pin SC70
Top View
TPL0401A-10-Q1 TPL0401B-10-Q1 pos_lis144.gif

Pin Functions

PIN TYPE DESCRIPTION
NO. NAME
1 VDD Power Positive supply voltage
2 GND — Ground
3 SCL I I2C Clock
4 SDA I/O I2C Data
5 W I/O Wiper terminal
6 H I/O High terminal
— L I/O Low terminal (Internally connected to GND)
