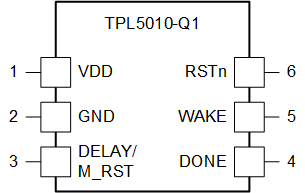

6 Pin Configuration and Functions

SOT23
6-Pin DDC
Top View
TPL5010-Q1 PIN_OUT_5010.gif

Table 1. Pin Functions

PIN TYPE(1) DESCRIPTION APPLICATION INFORMATION
NO. NAME
1 VDD P Supply voltage
2 GND G Ground
3 DELAY/ M_RST I Time Interval set and Manual Reset Resistance between this pin and GND is used to select the time interval. The reset switch is also connected to this pin.
4 DONE I Logic Input for watchdog functionality Digital signal driven by the µC to indicate successful processing of the WAKE signal.
5 WAKE O Timer output signal generated every tIP period. Digital pulsed signal to wake up the µC at the end of the programmed time interval.
6 RSTn O Reset Output (open drain output) Digital signal to RESET the µC, pull-up resistance is required
(1) G= Ground, P= Power, O= Output, I= Input.
