10.2 Typical Application

This application demonstrates how the TPS22968 can be used to power downstream modules with large capacitances. The example in Figure 35 TPS22968 is powering a 100-µF capacitive output load.

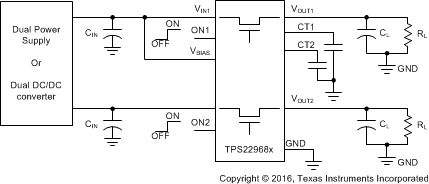

TPS22968 TPS22968N typicalApplication_SLVSG3.gifFigure 35. Typical Application Schematic for Powering a Downstream Module
