10.2 Layout Example

Figure 37 and Figure 38 show the top and bottom layer and assemblies of the TPS2373-4EVM-758 as a reference for optimum parts placement. A detailed PCB layout can be found in the user’s guide of the TPS2373-4EVM-758 Evaluation Module (SLUUBJ1)TPS2372-4EVM-006 Evaluation Module (SLVUB75).

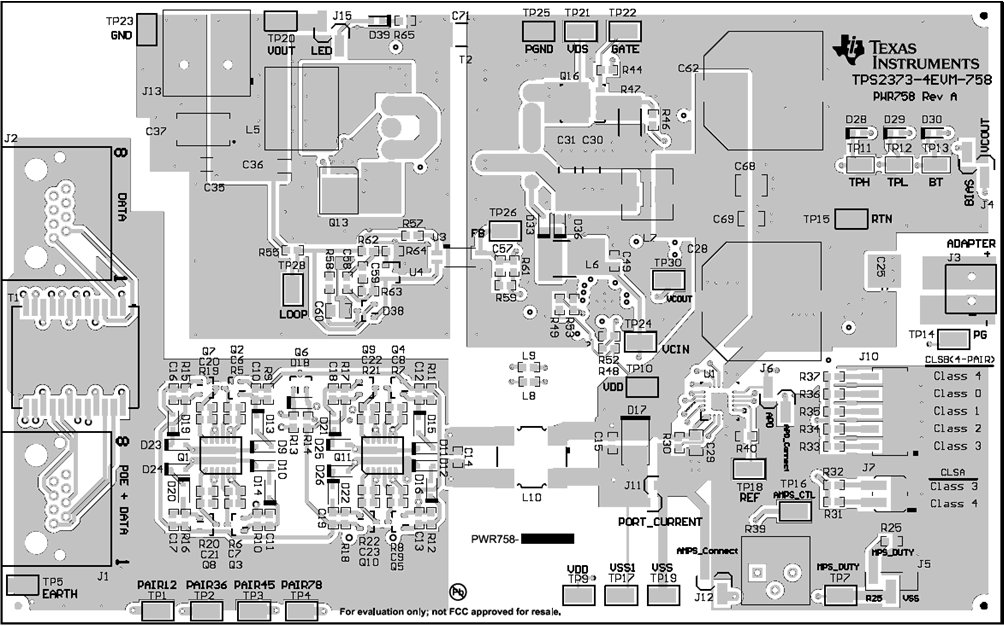

TPS2373 top_side_SLUSCD1.gifFigure 37. TPS2373-4EVM-758 Top Side Layout and Component Placement

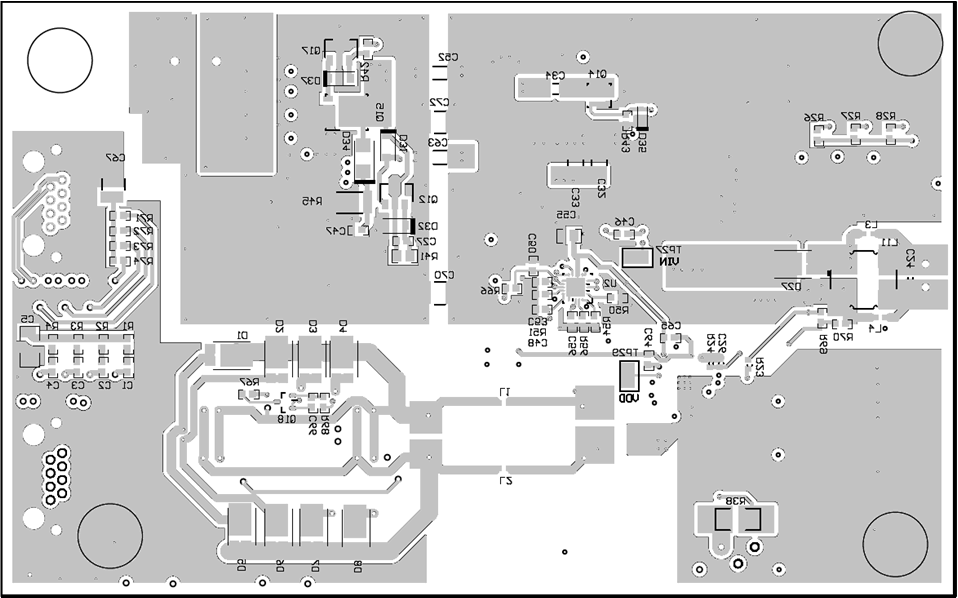

TPS2373 bottom_side_SLUSCD1.gifFigure 38. TPS2373-4EVM-758 Bottom Side Layout and Component Placement
