Description

The TPS563201 and TPS563208 are simple, easy-to-use, 3A synchronous step-down converters in SOT-23 package.

The devices are designed to operate with minimum external component counts and also designed to achieve low standby current.

These switch mode power supply (SMPS) devices employ D-CAP2 control scheme providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.

The TPS563201 operates in pulse skip mode, which maintains high efficiency during light load operation. The TPS563201 and TPS563208 are available in a 6-pin 1.6mm × 2.9mm SOT (DDC) package, and specified from a –40°C to 125°C junction temperature.

Device Information
PART NUMBER MODE PACKAGE(1) PACKAGE SIZE(2)
TPS563201 ECO DDC (SOT, 6) 1.6mm × 2.9mm
TPS563208 FCCM
For more information, see Section 10.
The package size (length × width) is a nominal value and includes pins, where applicable.

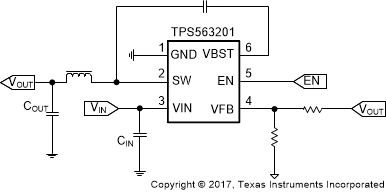

TPS563201 TPS563208 Simplified SchematicSimplified Schematic
TPS563201 TPS563208 TPS563201 EfficiencyTPS563201 Efficiency
