9.2.2.6.1 Small Signal Model

The TPS61379-Q1 uses the fixed frequency peak current mode control. There is an internal adaptive slope compensation to avoid the subharmonic oscillation. With the inductor current information sensed, the small-signal model of the power stage reduces from a two-pole system, created by L and COUT, to a single-pole system, created by ROUT and COUT. The single-pole system is easily used with the loop compensation. Figure 9-2 shows the equivalent small signal elements of a boost converter.

Figure 9-2 TPS61379-Q1 Control Equivalent Circuitry Model

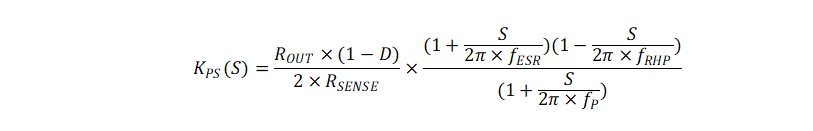

The small signal of power stage is:

Equation 13. GUID-83FA4C6B-86A3-4B15-B8BE-9811A2FD8ACD-low.gif

where

  • D is the duty cycle
  • ROUT is the output load resistor
  • RSENSE is the equivalent internal current sense resistor, which is typically 118 mΩ

The single pole of the power stage is:

Equation 14. GUID-9D31B12E-9959-4312-95D1-0C70F0D489AD-low.gif

where

  • COUT is the output capacitance. For a boost converter having multiple, identical output capacitors in parallel, simply combine the capacitors with the equivalent capacitance

The zero created by the ESR of the output capacitor is:

Equation 15. GUID-FF33CE40-102C-4705-B02D-37AD15CF3F51-low.gif

where

  • RESR is the equivalent resistance in series of the output capacitor

The right-hand plane zero is:

Equation 16. GUID-DDBF920E-982D-404F-A66E-CA2A4EAC4FF4-low.gif

where

  • D is the duty cycle
  • ROUT is the output load resistor
  • L is the inductance

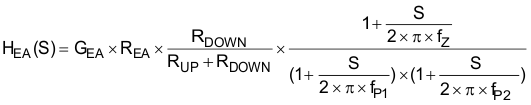

Equation 17 shows the equation for feedback resistor network and the error amplifier.

Equation 17. GUID-C56E5040-BBCA-4A6D-AF84-7C28F4AFB366-low.gif

where

  • REA is the output impedance of the error amplifier and typical REA = 500 MΩ.
  • ƒP1, ƒP2 is the pole's frequency of the compensation, fZ is the zero’s frequency of the compensation network
Equation 18. GUID-A28C15BB-FE3F-4B9D-B059-332B85A90282-low.gif

where

  • CC is the zero capacitor compensation
Equation 19. GUID-B56D0039-C147-4F56-A998-86D399C3FDA8-low.gif

where

  • CP is the pole capacitor compensation
  • RC is the resistor of the compensation network
Equation 20. GUID-710D1B1E-E921-43CF-9428-CDDAF4A24F41-low.gif
