9.2.1.3.1 TPSM82821 Performance Curves
VIN = 5 VTA = 25°CTPSM82821
Figure 9-3 Efficiency
VIN = 4.2 VTA = 25°CTPSM82821
Figure 9-5 Efficiency
VIN = 3.3 VTA = 25°CTPSM82821
Figure 9-7 Efficiency
VIN = 2.4 VTA = 25°CTPSM82821
Figure 9-9 Efficiency
VOUT = 0.6 V TPSM82821 RθJA = 64.3°C/W

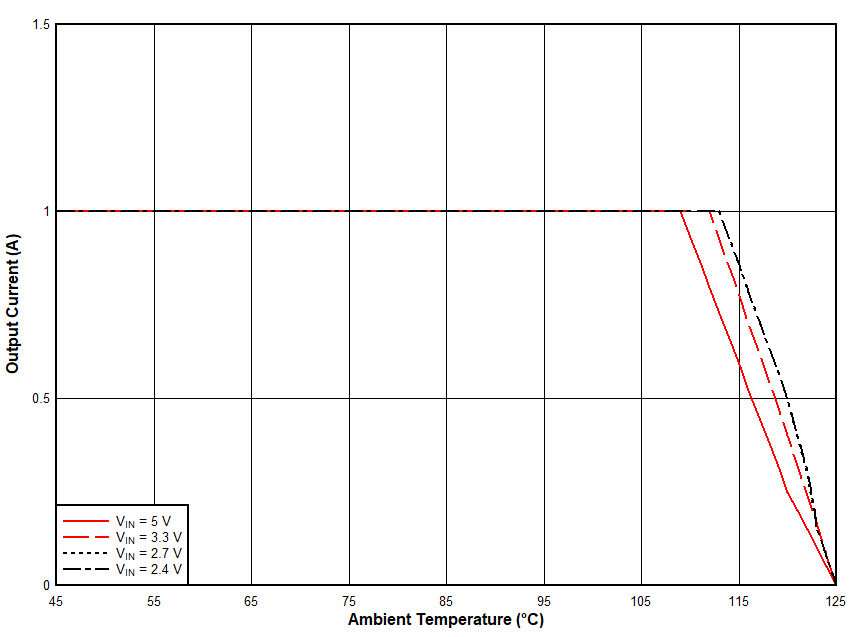

Figure 9-11 Safe Operating Area
VOUT = 1.8 VTPSM82821RθJA = 64.3°C/W
Figure 9-13 Safe Operating Area
VOUT = 3.3 VTPSM82821RθJA = 64.3°C/W
Figure 9-15 Safe Operating Area
VOUT = 1.2 VTPSM82821

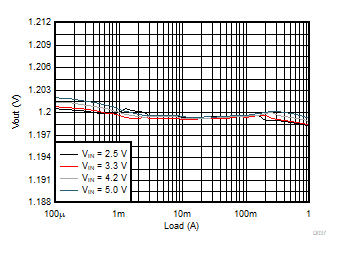

Figure 9-17 Load Regulation
VOUT = 2.5 VTPSM82821

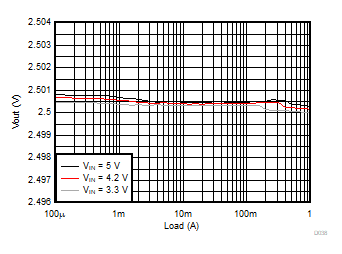

Figure 9-19 Load Regulation
VOUT = 0.6 VTPSM82821

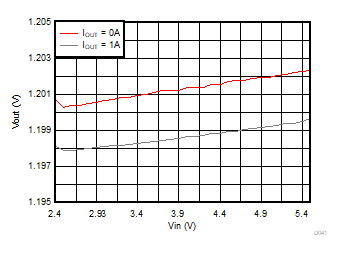

Figure 9-21 Line Regulation
VOUT = 1.8 VTPSM82821
Figure 9-23 Line Regulation
IOUT = 0 A to 1 ASlew Rate = 2 A/µsTPSM82821

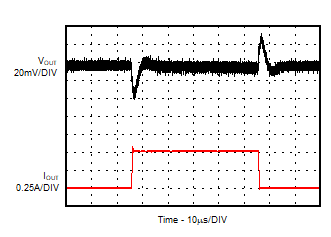

Figure 9-25 Load Transient
RLOAD = 2.2 Ω, VIN = 5.5 V (battery supply), VOUT = 1.8 V, tested on TPSM82821EVM-080
Figure 9-27 TPSM82821 Radiated Emissions
VIN = 5 VTA = 85°CTPSM82821
Figure 9-4 Efficiency
VIN = 4.2 VTA = 85°CTPSM82821
Figure 9-6 Efficiency
VIN = 3.3 VTA = 85°CTPSM82821
Figure 9-8 Efficiency
VIN = 2.4 VTA = 85°CTPSM82821
Figure 9-10 Efficiency
VOUT = 1.2 VTPSM82821RθJA = 64.3°C/W
Figure 9-12 Safe Operating Area
VOUT = 2.5 VTPSM82821RθJA = 64.3°C/W
Figure 9-14 Safe Operating Area
VOUT = 0.6 VTPSM82821
Figure 9-16 Load Regulation
VOUT = 1.8 VTPSM82821

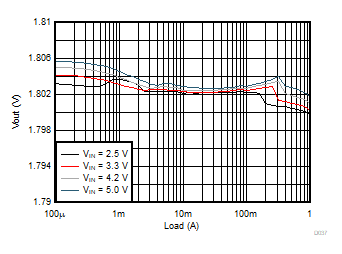

Figure 9-18 Load Regulation
VOUT = 3.3 VTPSM82821

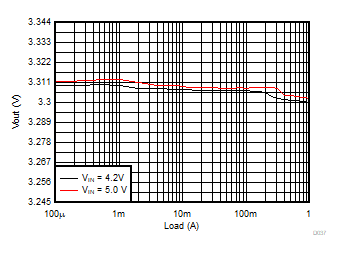

Figure 9-20 Load Regulation
VOUT = 1.2 VTPSM82821
Figure 9-22 Line Regulation
VOUT = 3.3 VTPSM82821

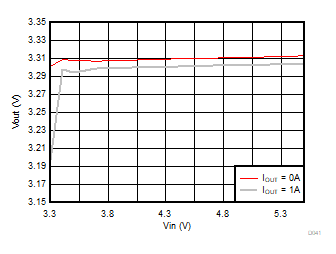

Figure 9-24 Line Regulation
IOUT = 0.5 A to 1 ASlew Rate = 2 A/µsTPSM82821
Figure 9-26 Load Transient
TPSM82821
Figure 9-28 Power Supply Rejection Ratio (PSRR)
